Panasonic Aquarea HIGH-PERFORMANCE WH-MDC16H6E5 monoblock air-to-water heat pump 16 kW | Generation H | 1~/230V/50Hz | R410A + optional WiFi module CZ-TAW1

Item description:

Aquarea High Performance Monoblock Units | Heating and Cooling | for new facilities and energy-efficient buildings

Monoblock system: outdoor unit only
The system does not require a cooling connection and is only connected to a heating and/or hot water circuit.

• Energy efficiency: A+++ in heating mode at 35°C / Class A water pump with variable speed / Integrated flow meter
• Flexibility: Built-in magnetic water filter
• Comfort: Operation of the device and possibility to adjust the heating curve down to -20°C / Flow temperature: 55°C
• Functionality: Additional features with optional control card (2-zone control, smart grid compatibility and more)
• Compatibility: optional control via Aquarea Smart and Service Cloud, integration into BMS projects

Specifications:

• Heating capacity / COP (A +7°C, W 35°C): 16.00/4.28 kW / COP
• Heating capacity / COP (A +7°C, W 55°C): 14.50/2.72 kW / COP
• Heating capacity / COP (A +2°C, W 35°C): 13.00/3.28 kW / COP
• Heating capacity / COP (A +2°C, W 55°C): 9.80/2.21 kW / COP
• Heating capacity / COP (A -7°C, W 35°C): 11.40/2.57 kW / COP
• Heating capacity / COP (A -7°C, W 55°C): 9.00/1.84 kW / COP
• Cooling capacity / EER (A 35°C, W 7°C): 12.20/2.56 kW / EER
• Cooling capacity / EER (A 35°C, W 7°C): 12.20/4.12 kW / EER
• Energy efficiency class heating medium climate (35°C water / 55°C water): A+++ / A++
• Energy efficiency class heating warm climate (35°C water / 55°C water): A+++ / A+++
• Energy efficiency class heating cold climate (35°C water / 55°C water): A++ / A+
• Dimensions (HxWxD): 1410x1283x320 mm (140 kg)
• Sound power level heating: 65 dB(A)
• Refrigerant charge (R410A) / CO2 equivalent emissions): 2.10/4.385 kg/t
• Water connection: R 1¼ inch
• Water pump number of gears: Variable
• Power of the built-in electric heating element: 6 kW
• Operating range - ambient temperature heating / cooling: -20 ÷ +35 / +16 ÷ +43 °C
• Water outlet temperature heating / cooling: 20 ÷ 55 / 5 ÷ 20 °C

Scope of delivery:

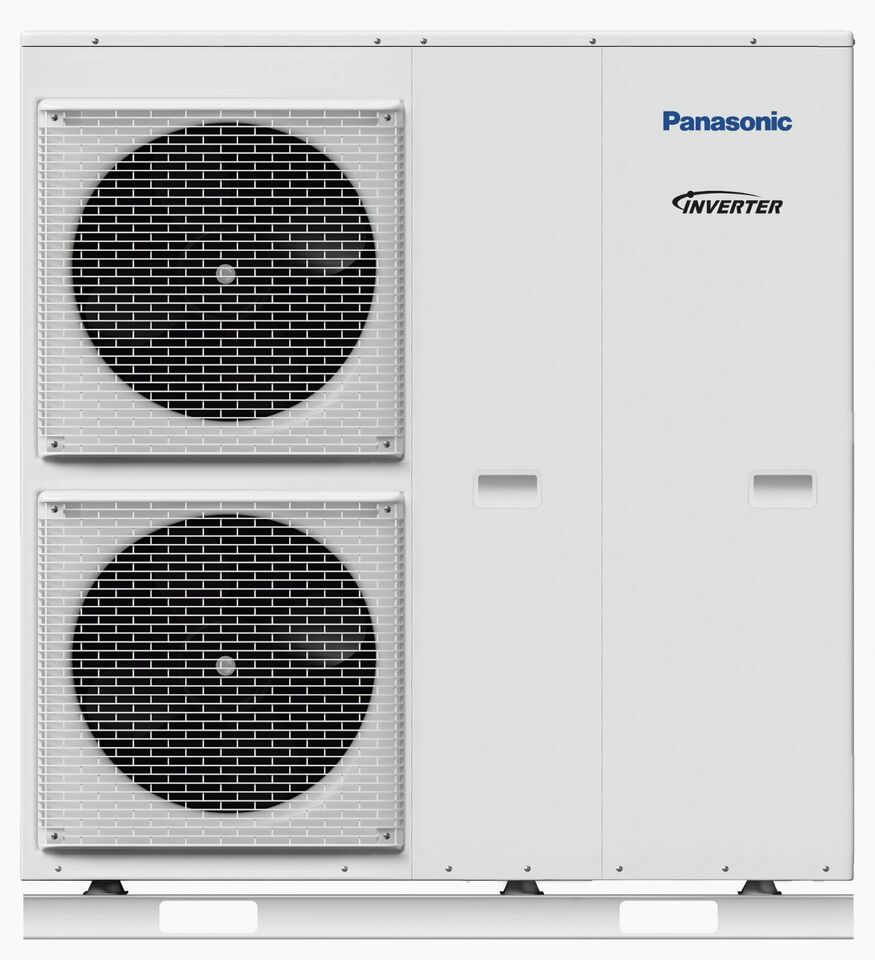

• an outdoor unit

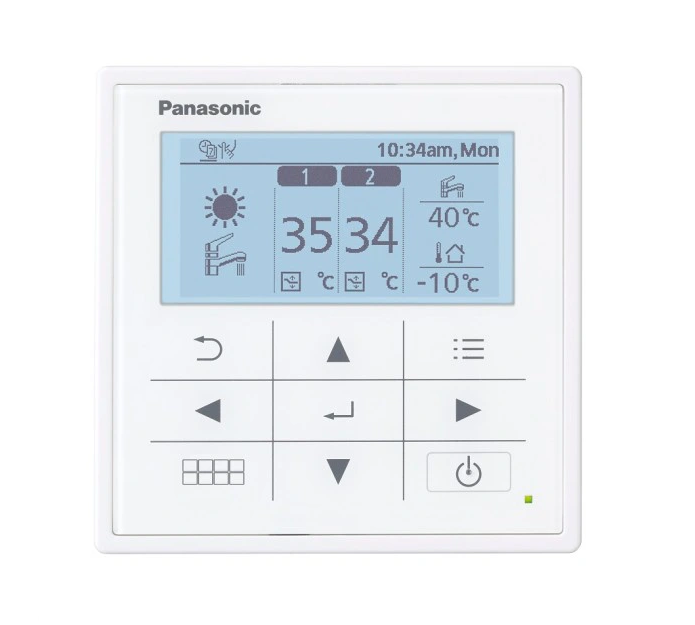

• a controller
*optional WiFi module CZ-TAW1
