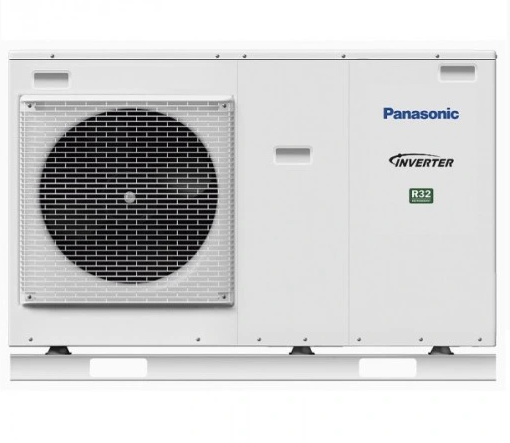

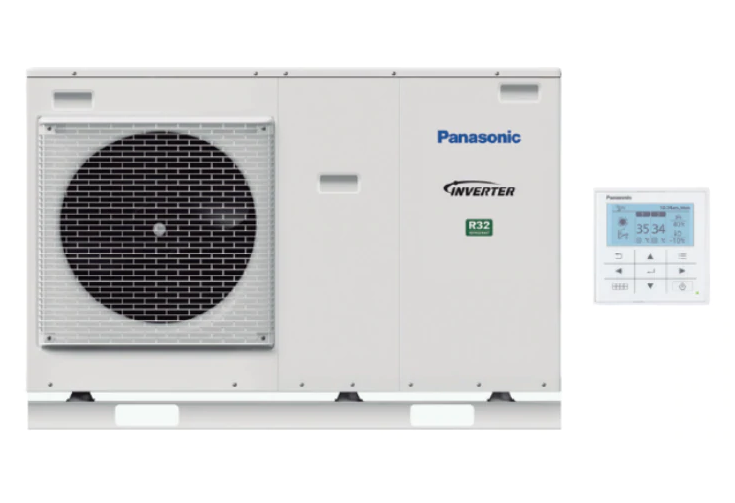

Air-to-water heat pump monoblock Panasonic Aquarea HIGH-PERFORMANCE WH-MDC07J3E5 7 kW | Generation J | 1~/230V/50Hz | R32 + optional WiFi module CZ-TAW1

Item description:

Aquarea High Performance Monoblock Units | Heating and Cooling | for new facilities and energy-efficient buildings

Monoblock system: outdoor unit only
The system does not require a cooling connection and is only connected to a heating and/or hot water circuit.

• Energy efficiency: A+++ in heating mode at 35°C / Class A water pump with variable speed / Integrated flow meter
• Flexibility: Built-in magnetic water filter
• Comfort: Operation of the device and possibility to adjust the heating curve down to -20°C / Flow temperature: 55°C
• Functionality: Additional features with optional control card (2-zone control, smart grid compatibility and more)
• Compatibility: optional control via Aquarea Smart and Service Cloud, integration into BMS projects

Specifications:

• Heating capacity / COP (A +7°C, W 35°C): 7.00/4.76 kW / COP
• Heating capacity / COP (A +7°C, W 55°C): 7.00/2.82 kW / COP
• Heating capacity / COP (A +2°C, W 35°C): 7.00/3.40 kW / COP
• Heating capacity / COP (A +2°C, W 55°C): 6.30/2.16 kW / COP
• Heating capacity / COP (A -7°C, W 35°C): 6.80/2.81 kW / COP
• Heating capacity / COP (A -7°C, W 55°C): 6.30/1.86 kW / COP
• Cooling capacity / EER (A 35°C, W 7°C): 7.00/3.06 kW / EER
• Cooling capacity / EER (A 35°C, W 7°C): 7.00/4.73 kW / EER
• Energy efficiency class heating medium climate (35°C water / 55°C water): A+++ / A++
• Energy efficiency class heating warm climate (35°C water / 55°C water): A+++ / A+++
• Energy efficiency class heating cold climate (35°C water / 55°C water): A++ / A+
• Dimensions (HxWxD): 865x1283x320 mm (104 kg)
• Sound power level heating: 59 dB(A)
• Refrigerant charge (R32) / CO2 equivalent emissions): 1.3/0.878 kg/t
• Water connection: R 1¼ inch
• Water pump number of gears: Variable
• Power of the built-in electric heating element: 3 kW
• Operating range - Ambient temperature heating / cooling: -20 ÷ +35 / +10 ÷ +43 °C
• Water outlet temperature heating / cooling: 20 ÷ 60 / 5 ÷ 20 °C

Scope of delivery:

• an outdoor unit

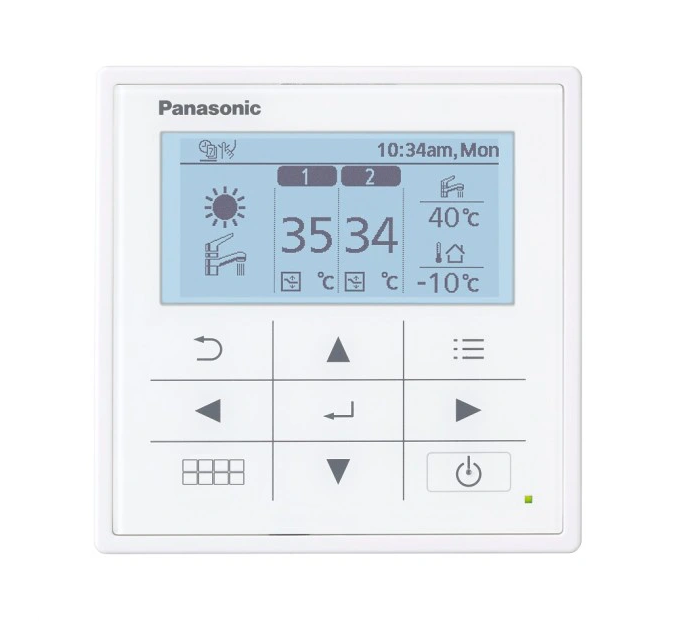

• a controller
*optional WiFi module CZ-TAW1

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
