Panasonic Aquarea High Performance 5 kW Heat Pump R290 with WiFi

Air/water heat pumps Aquarea High Performance Hydraulic R290 to choose from:

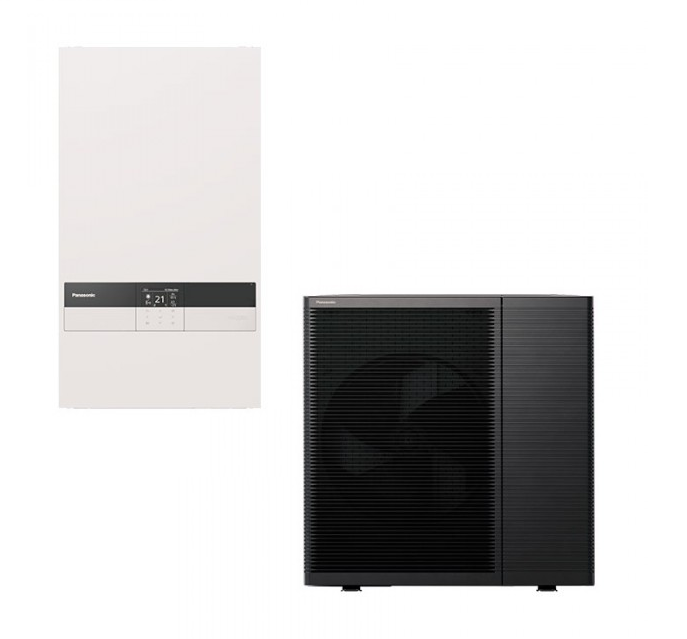

1. KIT-WC05L3E5 / KIT-SDC05LE5 (Indoor unit WH-SDC0509L3E5 + Outdoor unit WH-WDG05LE5 + WiFi CZ-TAW1) | Aquarea High Performance Hydraulic Split Generation L, single-phase | Heating and Cooling | R290 refrigerant

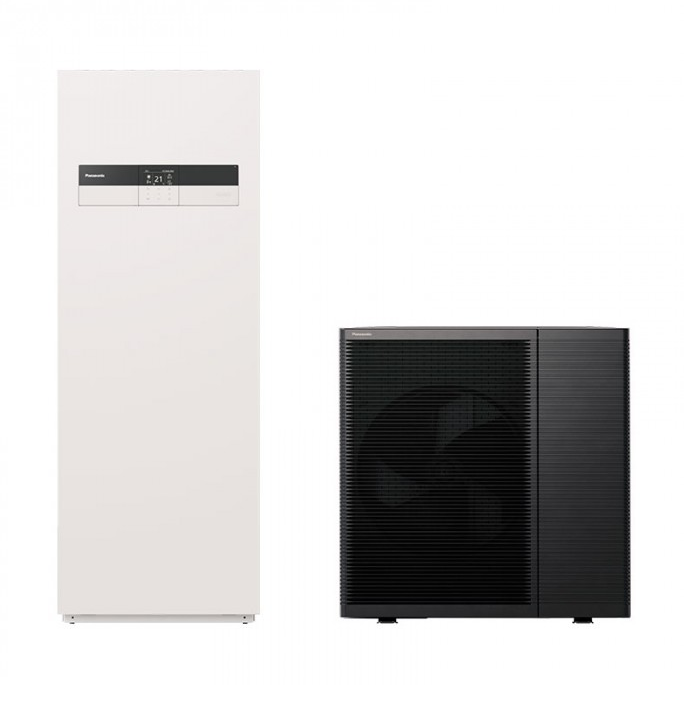

2. KIT-ADC05LE5 / KIT-ADC05L3E5 (WH-ADC0509L3E5 + WH-WDG05LE5 + WiFi CZ-TAW1) | Aquarea High Performance Hydraulic Split Generation L, All-in-One, incl. 185 L hot water tank, single-phase | Heating and cooling | R290 refrigerant
3. KIT-ADC05LE5B / KIT-ADC05L3E5B (WH-ADC0509L3E5B + WH-WDG05LE5 + WiFi CZ-TAW1) | 2-Zone Aquarea High Performance Hydraulic Split Generation L, All-in-One, incl. 185 L hot water tank, single-phase | Heating and cooling | R290 refrigerant

Product description:
• Natural refrigerant R290 with GWP 3: New design for reduced noise level and increased application safety R290
• Higher efficiency for applications in temperate climates: Energy efficiency class up to A++ on a scale from A+++ to D
• Highest efficiency in cooling applications: Energy efficiency class up to A+++ on a scale from A+++ to D
• Higher hot water efficiency: Energy efficiency class up to A+ on a scale from A+ to F
• Inverter Plus compressor
• Class A water pump
• With the Aquarea heat pump you can also heat water cost-effectively by simply installing an optional hot water tank.
• Heating operation down to -25°C outdoors
• Magnetic water filter
• Max. water temperature at the supply up to 75°C
• Flowmeters: From Generation H
• Aquarea heat pumps can be connected to an existing or new boiler and offer optimal comfort even at very low outside temperatures
• Control your heat pump from anywhere using an internet-connected PC, smartphone or tablet with Android™ or iOS.
• BMS compatibility

Technical data:

• Heating power / COP (A +7°C, W 35°C):
KIT-WC05L3E5: 5.00/5.05
KIT-ADC05LE5: 5.00/5.05
KIT-ADC05LE5B: 5.00/5.05
• Heating power / COP (A +7°C, W 55°C):
KIT-WC05L3E5: 5.00 / 3.07
KIT-ADC05LE5: 5.00 / 3.07
KIT-ADC05LE5B: 5.00 / 3.07
• Cooling capacity / EER (A 35°C, W 18°C):
KIT-WC05L3E5: 5.00/3.23
KIT-ADC05LE5: 5.00/3.23
KIT-ADC05LE5B: 5.00/3.23
• Energy efficiency class heating (35°C water / 55°C water):
KIT-WC05L3E5: A+++/A++
KIT-ADC05LE5: A+++/A++
KIT-ADC05LE5B: A+++/A++

Indoor units:
• Dimensions and net weight of indoor unit (HxWxD):
WH-SDC0509L3E5: 892 x 500 x 348mm (42kg)
WH-ADC0509L3E5: 1642 x 598 x 600 mm (93 (3 kW))
• Sound pressure level heating / cooling:
WH-SDC0509L3E5: 28 / 28 dB(A)
WH-ADC0509L3E5: 28/ 28 dB(A)

Outdoor unit WH-WDG05LE5:
• Dimensions (HxWxD) : 996 x 980 x 430 mm (98 kg)
• Sound power level heating: 52 dB(A)
• Refrigerant quantity (R290) / CO2 equivalent emissions): 0.96 / 0.003 kg/t
• Operating range - Ambient temperature heating / cooling: -25 ÷ +35 / +10÷+43 °C
• Water outlet temperature heating / cooling: 20 ÷ 75 / 5 ÷ 20 °C
