Panasonic Aquarea T-CAP 12kW All-in-One 240V
Panasonic Aquarea T-CAP 12kW All-in-One 240V
Panasonic Aquarea T-CAP Luft/Wasser Wärmepumpe als All-in-One, Außengerät WH-UX12HE5 mit Innengerät WH-ADC1216H6E5: 12,00 kW Heizleistung bei A7/W35 (COP 4,74), laut Seite auch 12,00 kW bei A2/W35 und A-7/W35, Energieeffizienzklasse A++ bei 35 °C und A++ bei 55 °C Vorlauf, Skala A+++ bis D. Betrieb bis minus 28 °C Außentemperatur, Vorlauf 20 bis 60 °C, 1~ 230 V. Im Innengerät 185-Liter-Edelstahlspeicher, Heizstab 6 kW, Umwälzpumpe Klasse A; Kühlen 10,00 kW bei A35/W7, Kabelfernbedienung enthalten, Schallleistung 66 dB(A) außen.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

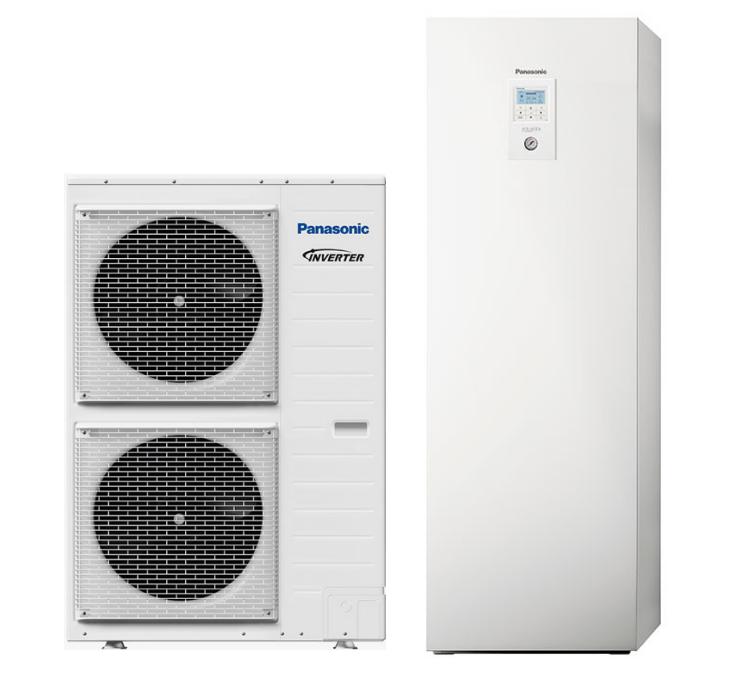

Air/water heat pump Panasonic T-CAP All-in-One KIT-AXC12HE5 = WH-UX12HE5 + WH-ADC1216H6E5 12 kW | 1 phase
Technical features:
• Heating of water up to 65°C
• The inverter compressor controls the power according to requirements
• The heat pumps can operate at outside temperatures down to -28°C, and at temperatures down to -20°C they guarantee that the rated output is maintained without external reheating
• Inverter Plus System
• Class A water pump
• Operation at extremely low temperatures down to -20°C in heating mode
• The device can be connected to a system with an existing or new boiler
• Advanced controls
• Possibility of connection to a BMS building management system
• Lower installation costs
• Easy-to-configure controller
• Electrical connections on the front
• Controller functions (possible activation of the cooling mode via software - activation may only be carried out by an authorized service provider)
Aquarea All-in-One:
Aquarea all-in-one appliances are Panasonic's new generation of heat pumps for heating, cooling, and domestic hot water. Their sophisticated rectangular shape and white finish are typical of household appliances.
High-quality integrated components:
• Maintenance-free 185 liter INOX stainless steel tank
• Class A variable speed water pump
• Magnetic filter with shut-off valves
• Expansion tank
• Vortex flow meter
• Auxiliary heating
• Safety valve
• Vent valves
• Integrated 3-way valve
Specifications:
KIT-AXC12HE5 Kit:
• Heating capacity (ambient +7°C, water 35°C): 12.00 kW
• COP (ambient +7°C, water 35°C): 4.74
• Heating capacity (ambient +7°C, water 55°C): 12.00 kW
• COP (ambient +7°C, water 55°C): 2.88
• Heating capacity (ambient +2°C, water 35°C): 12.00 kW
• COP (ambient +2°C, water 35°C): 3.44
• Heating capacity (ambient +2°C, water 55°C): 12.00 kW
• COP (ambient +2°C, water 55°C): 2.19
• Heating capacity (ambient -7°C, water 35°C): 12.00 kW
• COP (ambient -7°C, water 35°C): 2.72
• Heating capacity (ambient -7°C, water 55°C): 12.00 kW
• COP (ambient -7°C, water 55°C): 1.92
• Cooling capacity (ambient 35°C, water 7°C): 10.00 kW
• EER (ambient 35°C, water 7°C): 2.81
• Cooling capacity (ambient 35°C, water 18°C): 10.00 kW
• EER (ambient 35°C, water 18°C): 5.13
• Energy efficiency class at 35°C / 55°C: A++ / A++

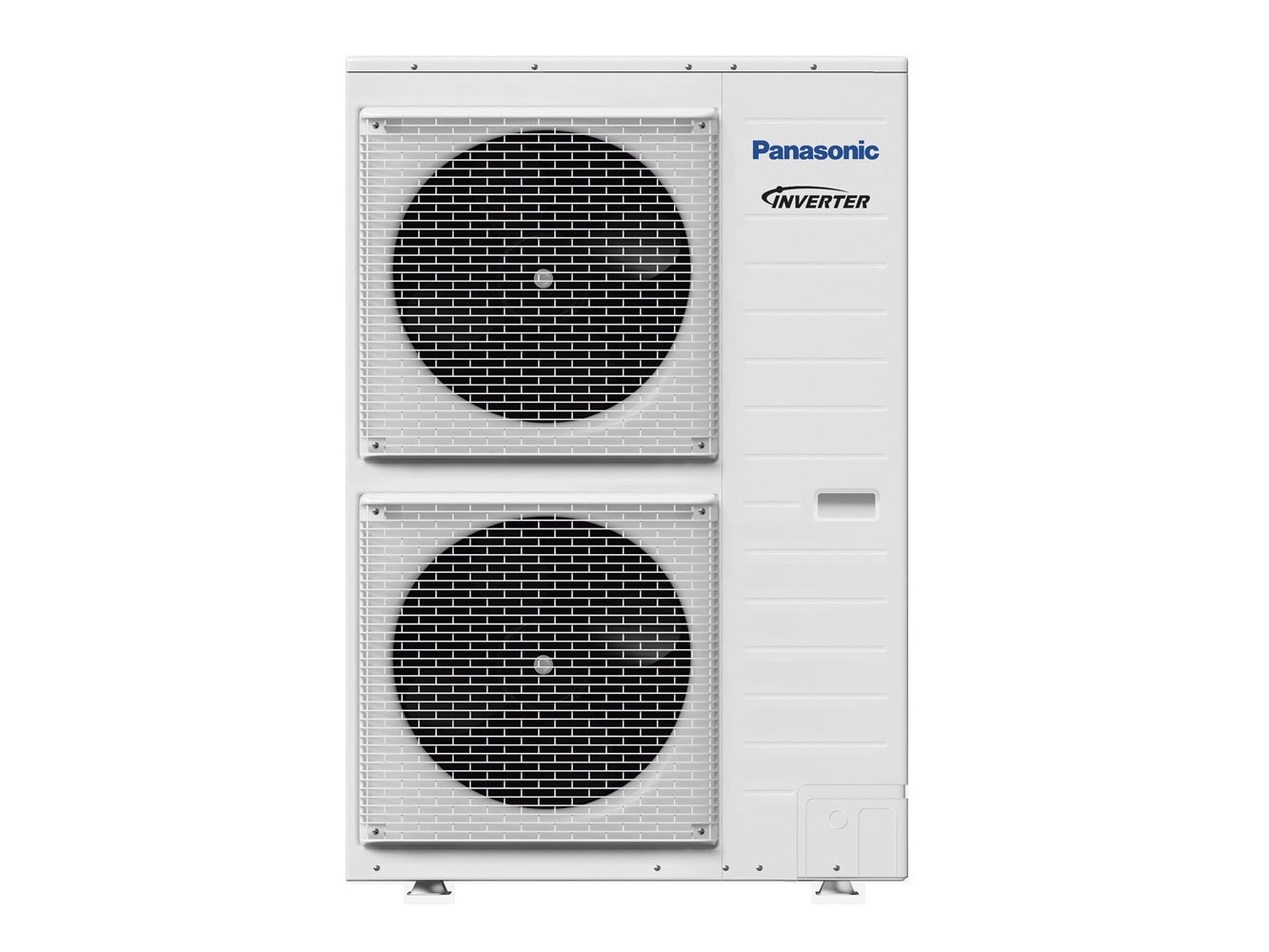

Outdoor unit WH-UX12HE5:
• Sound power level heating: 66 dB(A)
• Dimensions (HxWxD) / Net weight: 1340x900x320 mm / 101 kg
• Refrigerant (R410A) equivalent kg/total. CO2: 2.85 / 5.951
• Pipe diameter: 3/8" (9.52 mm) / 5/8" (15.88 mm)
• Operating range outside temperature heating / cooling: -28 ÷ +35 °C / +16 ÷ +43 °C
• Flow temperature heating / cooling: 20 ÷ 60 °C / 5 ÷ 20 °C

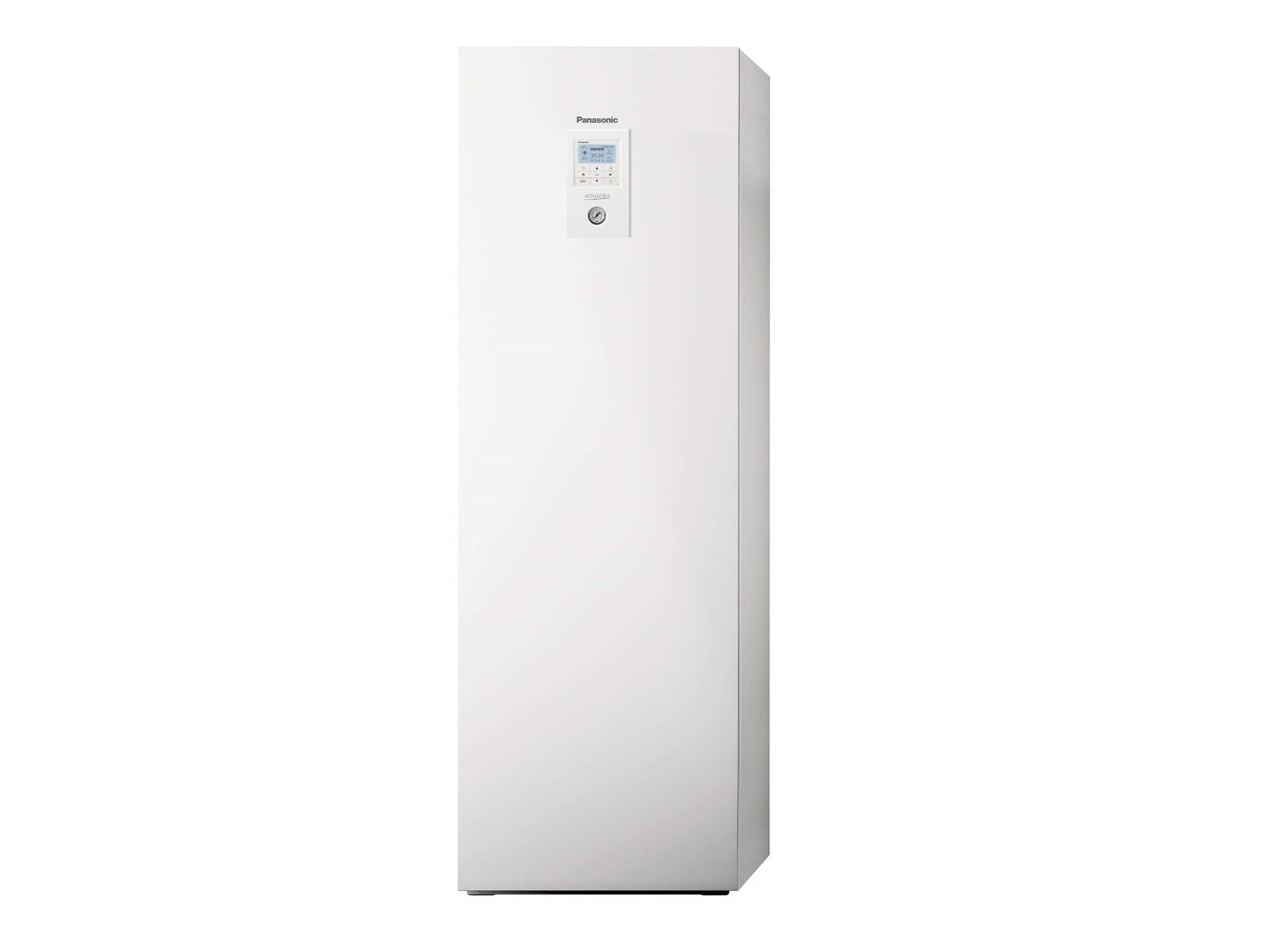

Indoor unit WH-ADC1216H6E5:
• Sound pressure level heating / cooling: 33 / 33 dB(A)
• Dimensions (HxWxD) / Net weight: 1800x598x717 mm / 124 kg
• Water connection: R 1¼
• Heating water volume flow (ΔT = 5 K, 35°C): 34.4 l/min
• Power of the built-in electric heating element: 6 kW
• Capacity of the domestic hot water tank: 185 l
• Material of the tank interior: stainless steel
Included in delivery:
- an outdoor unit
- an all-in-one indoor unit
- a wired remote control
BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
