Panasonic Aquarea T-CAP 12kW All-in-One 415V

Panasonic Aquarea T-CAP 12kW All-in-One 415V

Panasonic Aquarea T-CAP Luft/Wasser Wärmepumpe als All-in-One, Außengerät WH-UX12HE8 mit Innengerät WH-ADC0916H9E8: 12,00 kW Heizleistung bei A7/W35 (COP 4,74), laut Seite auch 12,00 kW bei A2/W35 und A-7/W35, Energieeffizienzklasse A++ bei 35 °C und A++ bei 55 °C Vorlauf, Skala A+++ bis D. Betrieb bis minus 28 °C Außentemperatur, Heizungsvorlauf 20 bis 60 °C, dreiphasig. Im Innengerät 185-Liter-Edelstahlspeicher, Heizstab 9 kW, Umwälzpumpe, Ausdehnungsgefäß, Magnetfilter und 3-Wege-Ventil; Kühlen 10,00 kW bei A35/W7, Kabelfernbedienung enthalten, BMS-Anschluss möglich.

Regular price €11.299,00
Regular price Sale price €11.299,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

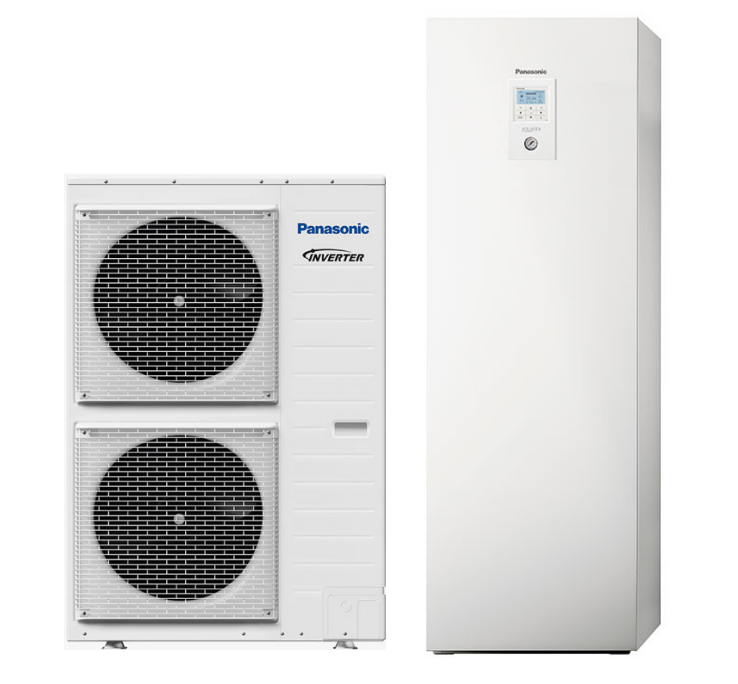

Air/water heat pump Panasonic T-CAP All-in-One KIT-AXC12HE8 - WH-UX12HE8 + WH-ADC0916H9E8 12 kW 3~

Technical features:

• Heating of water up to 65°C
• The inverter compressor controls the power according to requirements
• The heat pumps can operate at outside temperatures down to -28°C, and at temperatures down to -20°C they guarantee that the rated output is maintained without external reheating
• Inverter Plus System
• Class A water pump
• Operation at extremely low temperatures down to -20°C in heating mode
• The device can be connected to a system with an existing or new boiler
• Advanced controls
• Possibility of connection to a BMS building management system
• Lower installation costs
• Easy-to-configure controller
• Electrical connections on the front
• Controller functions (possible activation of the cooling mode via software - activation may only be carried out by an authorized service provider)

Aquarea All-in-One

Aquarea all-in-one appliances are Panasonic's new generation of heat pumps for heating, cooling, and domestic hot water. Their sophisticated rectangular shape and white finish are typical of household appliances.

High-quality integrated components:

• Maintenance-free 185 liter INOX stainless steel tank
• Class A variable speed water pump
• Magnetic filter with shut-off valves
• Expansion tank
• Vortex flow meter
• Auxiliary heating
• Safety valve
• Vent valves
• Integrated 3-way valve

Specifications:

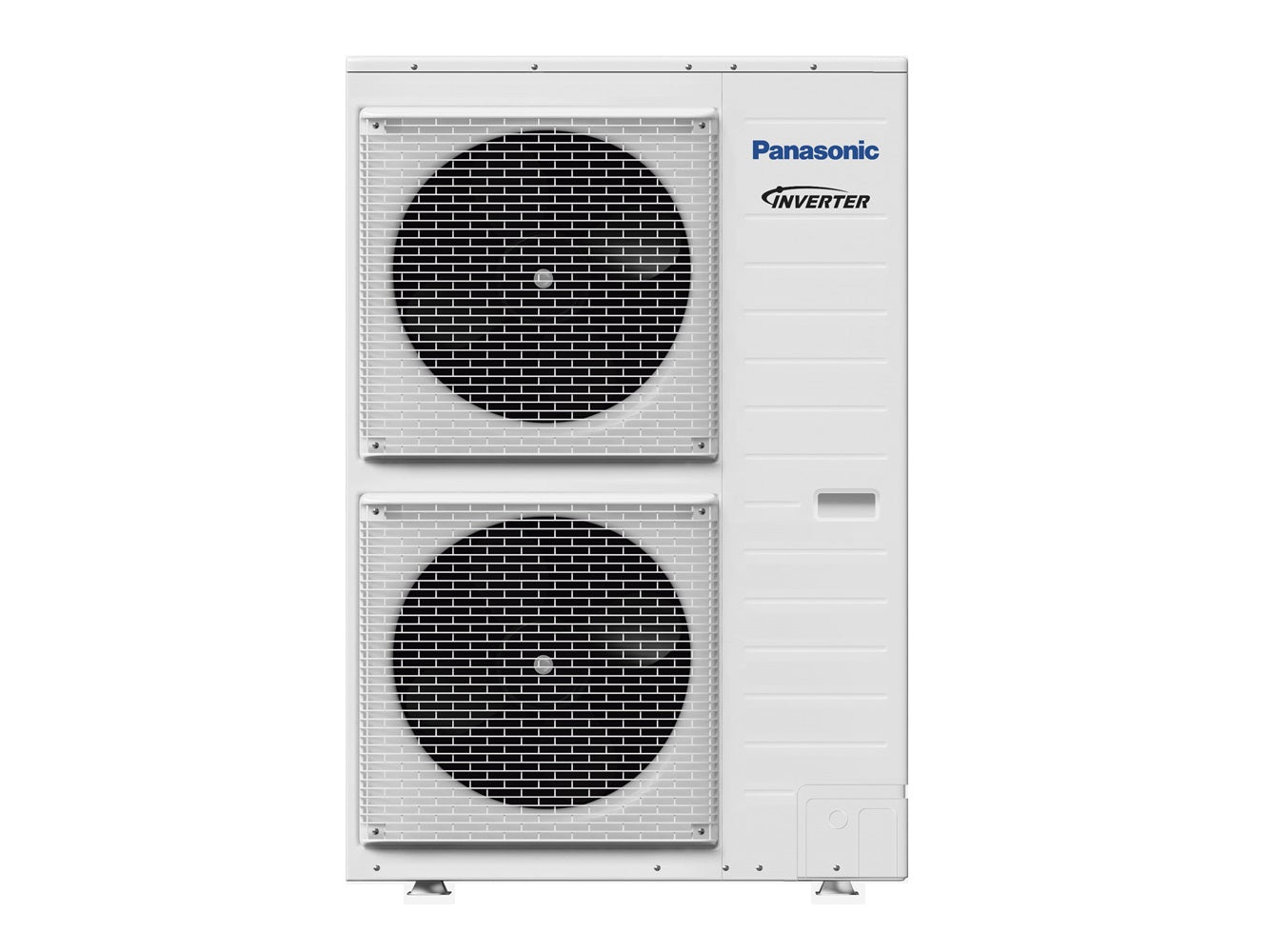

WH-UX12HE8:
• Heating capacity (ambient +7°C, water 35°C): 12.00 kW
• COP (ambient +7°C, water 35°C): 4.74 W/W
• Heating capacity (ambient +2°C, water 35°C): 12.00 kW
• COP (ambient +2°C, water 35°C): 3.44 W/W
• Heating capacity (ambient -7°C, water 35°C): 12.00 kW
• COP (ambient -7°C, water 35°C): 2.72 W/W
• Cooling capacity (ambient 35°C, water 7°C): 10.00 kW
• EER (ambient 35°C, water 7°C): 2.81
• Energy efficiency class at 35°C / 55°C: A++ / A++
• Sound power level at full load heating/cooling: 69 / 68 dB(A)
• Dimensions HxWxD: 1340 x 900 x 320 mm
• Net weight: 108 kg
• Refrigerant (R410A) equivalent kg/total. CO2: 2.85/5.951
• Pipe diameter: 3/8 / 5/8
• Operating range outside temperature: -28÷+35 °C
• Water outlet heating: 20÷60 °C
• Water outlet cooling: 5÷20 °C

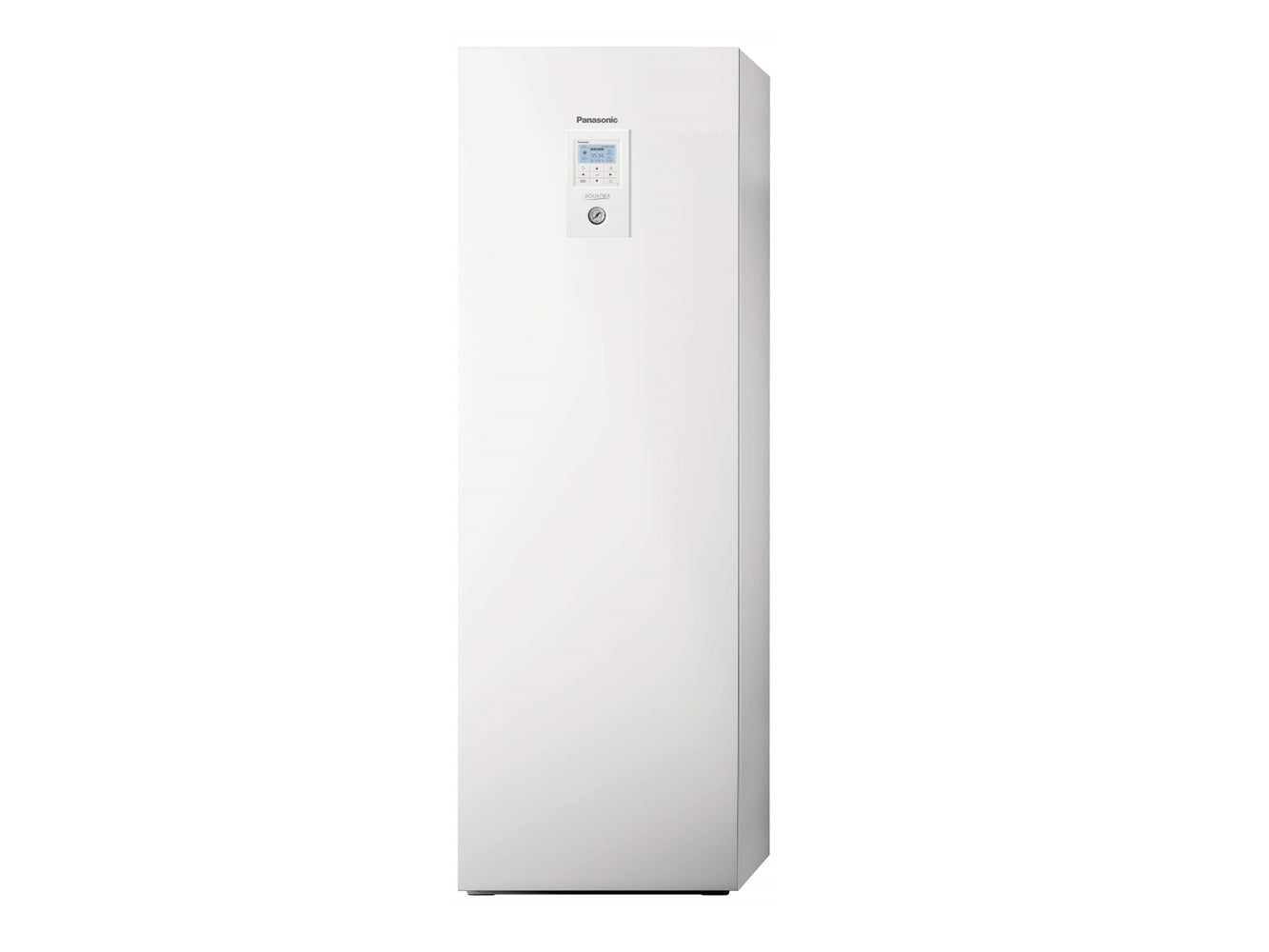

WH-ADC0916H9E8:
• Dimensions (HxWxD): 1800 x 598 x 717 mm
• Net weight: 126 kg
• Water connection: R 1¼
• Heating water flow rate: 34.4 l/min
• Power of the built-in electric heating element: 9 kW
• Volume: 185 l
• Material of the tank interior: stainless steel

Included in delivery:

- an outdoor unit
- an all-in-one indoor unit
- a wired remote control

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.

*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.

Manufacturer Information

Manufacturer/EU Representative:Panasonic Marketing Europe GmbH
Postal address:Hagenauer Strasse 43 65195 Wiesbaden Germany
E-mail address: EPREL.HVAC@eu.panasonic.com

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
