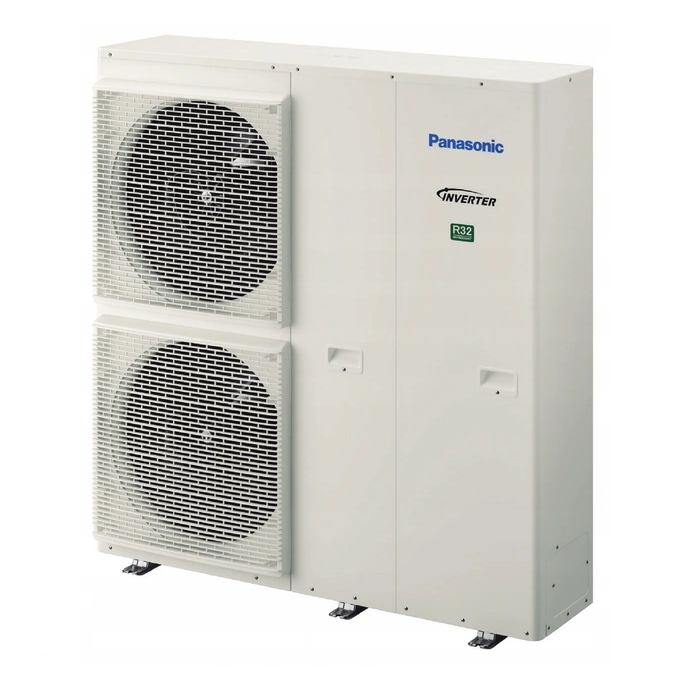

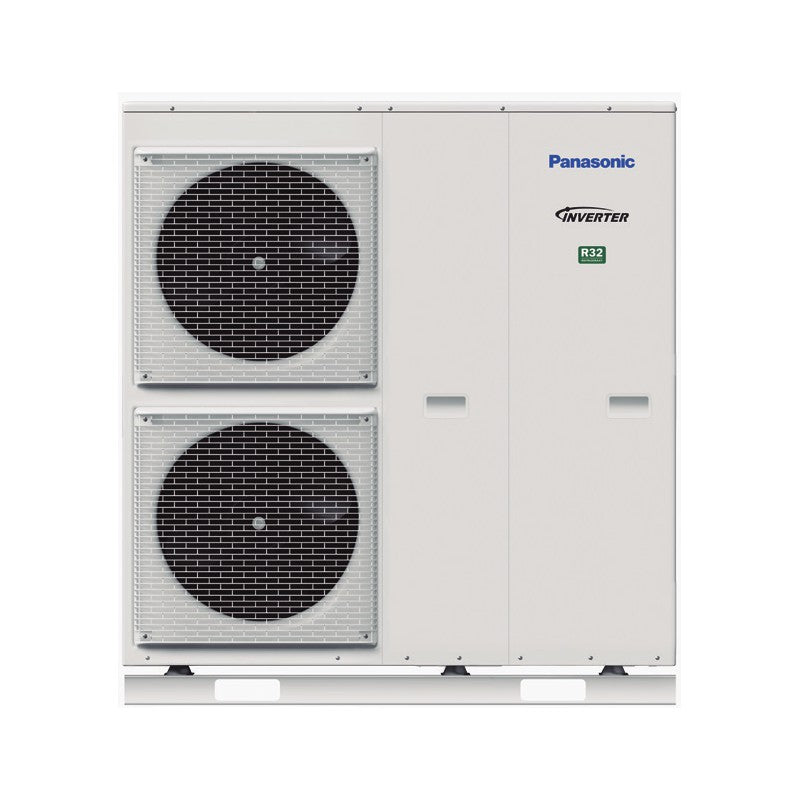

Air/water heat pump monoblock Panasonic Aquarea T-CAP Generation J WH-MXC09J3E5 1~ R32 + optional WiFi CZ-TAW1

Item description:

Generation J Aquarea T-CAP monoblock units | Heating and cooling:
• Energy efficiency: A+++ in heating mode at 35°C / Class A water pump with variable speed / Integrated flow meter
• Flexibility: Built-in magnetic water filter
• Comfort: Constant performance and operating range down to -20°C / 65°C water outlet temperature
• Functionality: Additional features with optional control card (2-zone control, smart grid compatibility and more)
• Internet control: enables easy remote control of your heat pump from anywhere using an internet-connected Android™ or iOS smartphone or tablet, or a PC.
• Compatibility: optional integration into BMS projects

The Aquarea T-CAP is a compact, highly efficient heat pump designed for retrofitting homes with underfloor heating and radiators after a boiler replacement. Panasonic pumps of this type are easy to integrate into existing systems or install in new projects.

R32 refrigerant: Compared to R22 and R410A, it has very low impact on ozone depletion and global warming.

Specifications:

• Heating capacity / COP (A +7°C, W 35°C): 9.00/5.08 kW / COP
• Heating capacity / COP (A +7°C, W 55°C): 9.00/3.08 kW / COP
• Heating capacity / COP (A +2°C, W 35°C): 9.00/3.81 kW / COP
• Heating capacity / COP (A +2°C, W 55°C): 9.00/2.54 kW / COP
• Heating capacity / COP (A -7°C, W 35°C): 9.00/3.08 kW / COP
• Heating capacity / COP (A -7°C, W 55°C): 9.00/2.12 kW / COP
• Cooling capacity / EER (A 35°C, W 7°C): 7.00/3.17 kW / EER
• Cooling capacity / EER (A 35°C, W 18°C): 7.00/5.19 kW / EER
• Energy efficiency class heating medium climate (35°C water / 55°C water): A+++ / A++
• Energy efficiency class heating warm climate (35°C water / 55°C water): A+++ / A+++
• Energy efficiency class heating cold climate (35°C water / 55°C water): A++ / A++
• Dimensions (HxWxD): 1410x1283x320 mm (140 kg)
• Refrigerant charge (R32) / CO2 equivalent emissions): 1.60/1.080 kg/t
• Water connection: R 1¼ inch
• Water pump number of gears: Variable
• Input power (min./max.): 32/102 W
• Power of the built-in electric heating element: 3 kW
• Operating range - ambient temperature cooling / heating: 10 ÷ +43 / -20 ÷ +35 °C
• Water outlet temperature heating / cooling: 20 ÷ 65 / 5 ÷ 20 °C

Scope of delivery:

• an outdoor unit

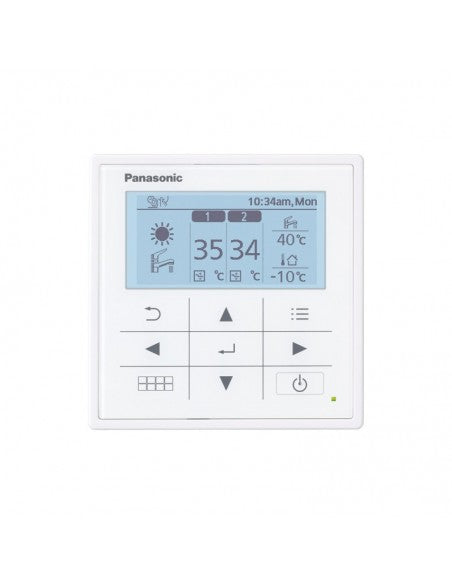

• a controller
*optional WiFi module CZ-TAW1

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
