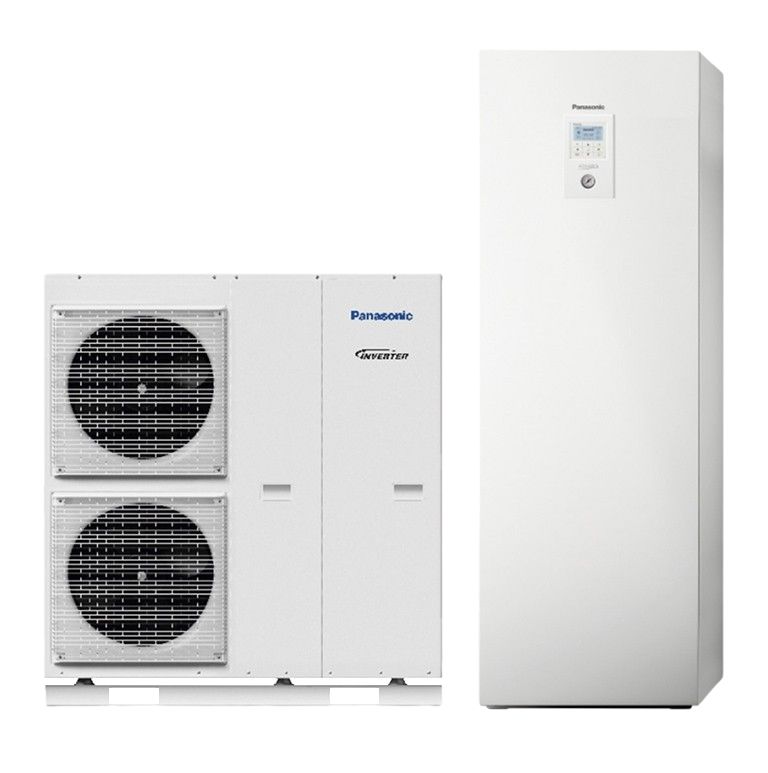

Panasonic Aquarea T-CAP All-in-One 9 kW Heat Pump 400V 3-phase
Panasonic Aquarea T-CAP All-in-One 9 kW Heat Pump 400V 3-phase
Panasonic Aquarea T-CAP SuperQuiet Luft/Wasser Wärmepumpe als All-in-One, Außengerät WH-UQ09HE8 mit Innengerät WH-ADC0916H9E8: 9,00 kW Heizleistung bei A7/W35 (COP 4,84), laut Seite auch 9,00 kW bei A2/W35 und A-7/W35, Energieeffizienzklasse A+++ bei 35 °C und A++ bei 55 °C Vorlauf, Skala A+++ bis D. Betrieb bis minus 28 °C Außentemperatur, Vorlauf 20 bis 60 °C, 3~ 400 V. Im Innengerät 185-Liter-Edelstahlspeicher, Heizstab 9 kW, Umwälzpumpe Klasse A; Kühlen 7,00 kW bei A35/W7, Kabelfernbedienung enthalten, Schallleistung 58 dB(A) außen.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
Aquarea T-CAP KIT-AQC9HE8 All-in-One Air-to-Water Heat Pump 9 kW | Generation "H" | Heating and Cooling | SuperQuiet | 3-Phase 3~/400V/50Hz | R410A
Item features:
• Energy efficiency: A+++ in heating mode at 35°C and A in hot water heating mode / A-class water pump with variable speed / Stainless steel hot water tank with U-Vacua™ insulation plate / Built-in flow meter
• Flexibility: Optional magnet for mains water filter
• Comfort: low noise level, full heating capacity down to -20 °C, operation down to -28 °C, maximum flow temperature: 60 °C
• Functionality: Additional functions with optional control card (2-zone control, smart grid compatibility, etc.)
• Compatibility: Optional remote control via Aquarea Smart, Service Cloud and integration into BMS projects
Aquarea All-in-One:
Aquarea all-in-one appliances are Panasonic's new generation of heat pumps for heating, cooling, and domestic hot water. Their sophisticated rectangular shape and white finish are typical of household appliances.
Specifications:
• Heating capacity / COP (A +7°C, W 35°C): 9.00 / 4.84 kW / COP
• Heating capacity / COP (A +7°C, W 55°C): 9.00 / 2.94 kW / COP
• Heating capacity / COP (A +2°C, W 35°C): 9.00 / 3.59 kW / COP
• Heating capacity / COP (A +2°C, W 55°C): 9.00 / 2.21 kW / COP
• Heating capacity / COP (A -7°C, W 35°C): 9.00 / 2.85 kW / COP
• Heating capacity / COP (A -7°C, W 55°C): 9.00 / 2.02 kW / COP
• Cooling capacity / EER (A 35°C, W 7°C): 7.00 / 3.17 kW / EER
• Cooling capacity / EER (A 35°C, W 18°C): 7.00 / 5.19 kW / EER
• Energy efficiency class heating medium climate (35°C water / 55°C water): A+++ / A++
• Energy efficiency class heating warm climate (35°C water / 55°C water): A+++ / A+++
• Energy efficiency class heating cold climate (35°C water / 55°C water): A++ / A++
Indoor unit WH-ADC0916H9E8:
• Dimensions and net weight of indoor unit (HxWxD): 1 800 x 598 x 717 mm (126 kg)
• Sound pressure level heating / cooling: 33 / 33 dB(A)
• Water connection: R 1¼ inch
• Power of the built-in electric heating element: 9 kW
• Heating water flow rate: 25.8 l/min
Outdoor unit WH-UQ09HE8:
• Outdoor unit dimensions (HxWxD): 1 410 x 1 283 x 320 mm (151 kg)
• Sound power level heating: 58 dB(A)
• Refrigerant quantity (R410A) / CO2 equivalent emissions): 2.85/5.951 kg/t
• Pipe connections: 9.52 mm / 15.88 mm
• Operating range - Ambient temperature heating / cooling: -28 ÷ +35 °C / +16÷+43 °C
• Water outlet temperature heating / cooling: 20 ÷ 60 / 5 ÷ 20 °C
Included in delivery:
- an outdoor unit
- an all-in-one indoor unit

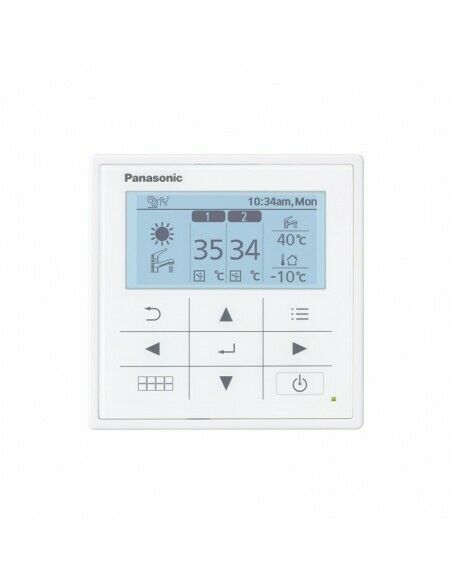

- a wired remote control
BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
