Panasonic Aquarea T-CAP Split 12 kW Heat Pump R410A 400V 3-phase
Panasonic Aquarea T-CAP Split 12 kW Heat Pump R410A 400V 3-phase
Panasonic Aquarea T-CAP SuperQuiet Luft/Wasser Wärmepumpe als Split, Außengerät WH-UQ12HE8 mit Hydromodul WH-SQC12H9E8 (KIT-WQC12H9E8): 12,00 kW Heizleistung bei A7/W35 (COP 4,74), ebenso 12,00 kW bei A2/W35 und A-7/W35, Energieeffizienzklasse A++ bei 35 °C und bei 55 °C Vorlauf, Skala A+++ bis D. Betrieb bis minus 28 °C Außentemperatur, Vorlauf 20 bis 60 °C, 3~ 400 V. Im Hydromodul Heizstab 9 kW, Umwälzpumpe Klasse A und Durchflussmesser; Kühlen 10,00 kW bei A35/W7, Schallleistung 58 dB(A) außen.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
Split air-to-water heat pump Aquarea T-CAP KIT-WQC12H9E8 | Generation "H" | Heating and cooling | SQC (SuperQuiet) | 3-phase 3~/400V/50Hz | R410A

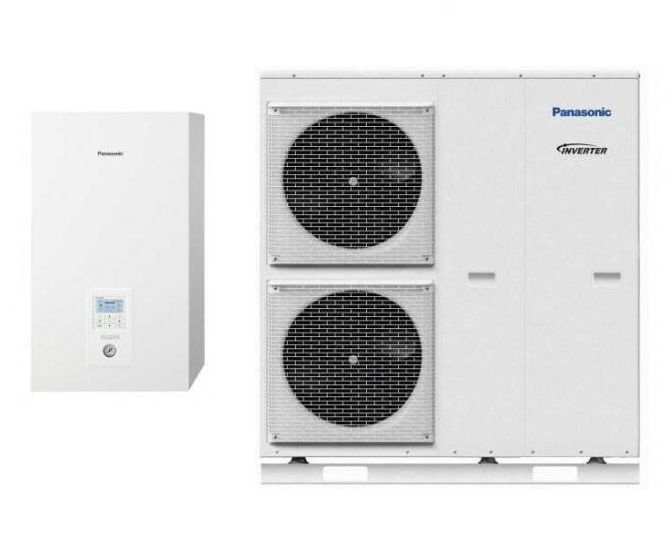

Split system consisting of an outdoor unit and a hydro module that produces hot and cold water for heating, cooling and domestic hot water supply, for a wide range of performance to meet every need.
• Energy efficiency: A+++ in heating mode at 35°C / A-class water pump with variable speed / Built-in flow meter
• Flexibility: Optional magnet for mains water filter
• Comfort: Low noise level, full heating capacity down to -20 °C, operation down to -28 °C, maximum flow temperature: 60 °C
• Functionality: Additional functions with optional control card (2-zone control, bivalent control, smart grid compatibility, etc.)
• Compatibility: Optional remote control via Aquarea Smart, Service Cloud and integration into BMS projects
Specifications:
• Heating capacity / COP (A +7°C, W 35°C): 12.00/4.74 kW / COP
• Heating capacity / COP (A +7°C, W 55°C): 12.00/2.88 kW / COP
• Heating capacity / COP (A +2°C, W 35°C): 12.00/3.44 kW / COP
• Heating capacity / COP (A +2°C, W 55°C): 12.00/2.19 kW / COP
• Heating capacity / COP (A -7°C, W 35°C): 12.00/2.72 kW / COP
• Heating capacity / COP (A -7°C, W 55°C): 12.00/1.92 kW / COP
• Cooling capacity / EER (A 35°C, W 7°C): 10.00/2.81 kW / EER
• Cooling capacity / EER (A 35°C, W 18°C): 10.00/4.35 kW / EER
• Energy efficiency class heating medium climate (35°C water / 55°C water): A++ /A++
• Energy efficiency class heating warm climate (35°C water / 55°C water): A+++ /A+++
• Energy efficiency class heating cold climate (35°C water / 55°C water): A++ / A++

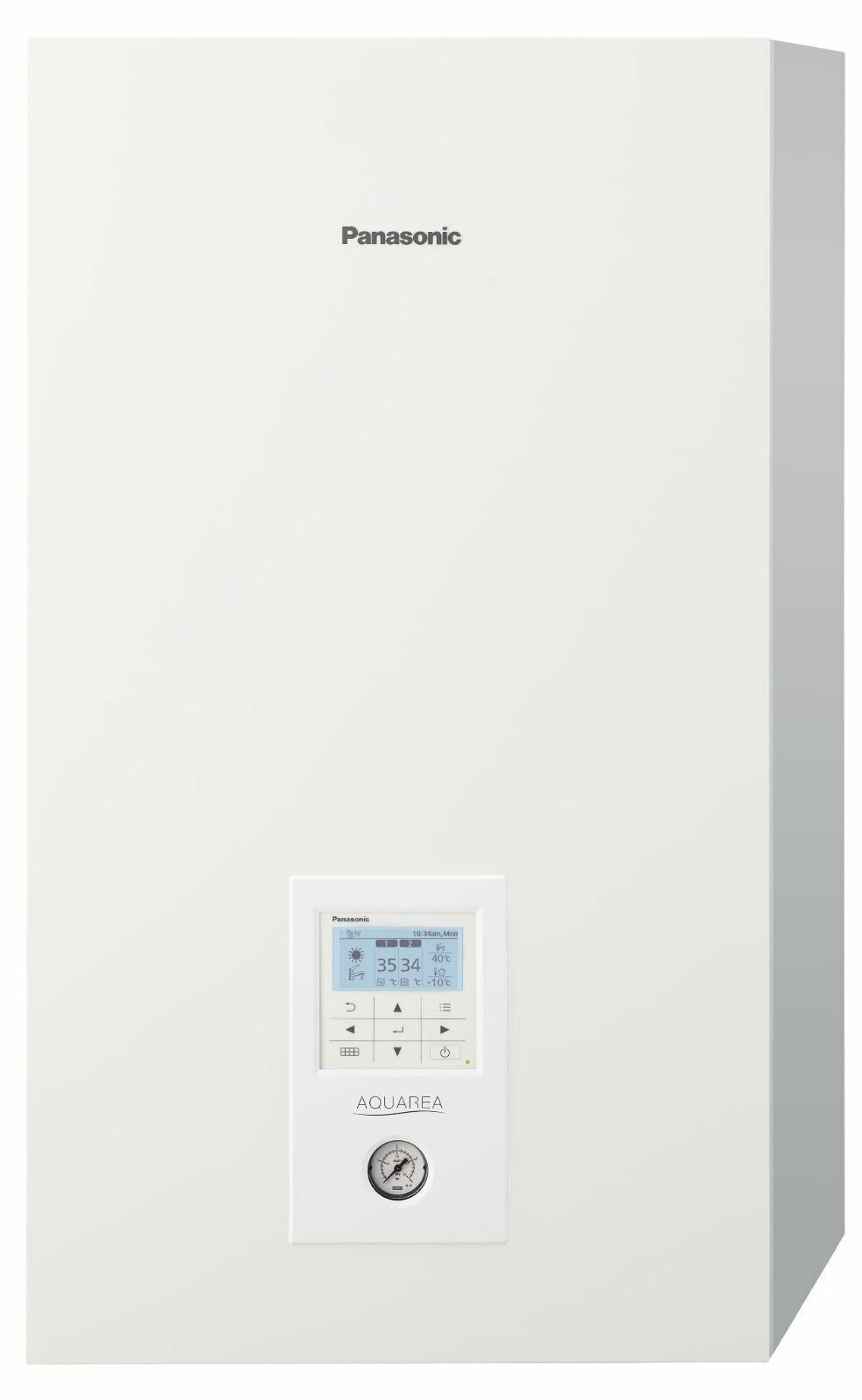

Indoor unit WH-SQC12H9E8:
• Dimensions and net weight of indoor unit (HxWxD): 892x500x340 mm (44 kg)
• Sound pressure level heating / cooling: 33 / 33 dB(A)
• Water connection: R 1¼ inch
• Power of the built-in electric heating element: 9 kW
• Heating water flow rate: 34.4 l/min
Outdoor unit WH-UQ12HE8:
• Outdoor unit dimensions (HxWxD): 1410x1283x320 mm (151 kg)
• Sound power level heating: 58 dB(A)
• Refrigerant quantity (R410A) / CO2 equivalent emissions): 2.85/5.951 kg/t
• Pipe connections: 9.52 mm / 15.88 mm
• Operating range - Ambient temperature heating / cooling: -28 ÷ +35 / +16 ÷ +43 °C
• Water outlet temperature heating / cooling: 20 ÷ 60 / 5 ÷ 20 °C
Included in delivery:
- one outdoor unit WH-UQ12HE8
- a hydro module WH-SQC12H9E8

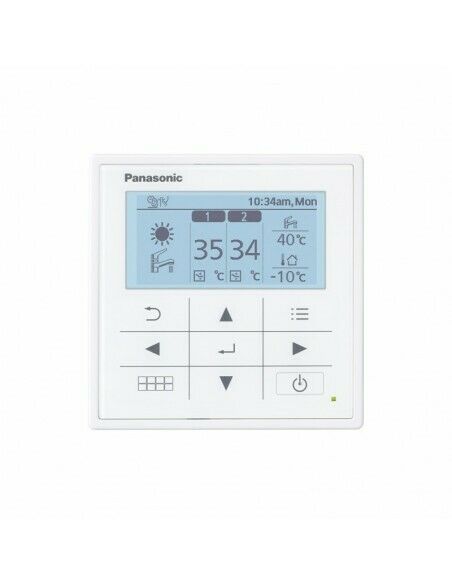

- a controller
BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
Manufacturer Information
Manufacturer Information
Manufacturer/EU Representative:Panasonic Marketing Europe GmbH
Postal address:Hagenauer Strasse 43 65195 Wiesbaden Germany
E-mail address: EPREL.HVAC@eu.panasonic.com
Important Note
Important Note
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
