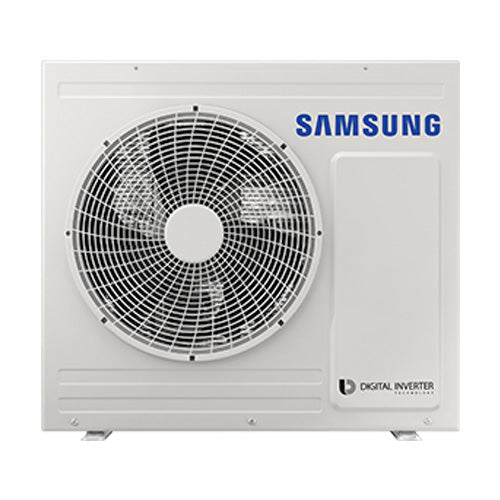

Samsung Air-to-Water Heat Pump | EHS Mono - Standard | Monoblock | Outdoor Unit AE050RXYDEG/EU + Control Module MIM-E03CN (incl. Touch Controller MWR-WW10N) | 1P, 220~240 V, 50 Hz + optional WiFi MIM-H04EN

High performance at low temperatures
EHS Mono offers excellent capacity and reliability at low temperatures. Even when the temperature drops, the interior remains warm and comfortable.

Samsung EHS Mono heat pumps require only hydraulic connections. No intervention in the cooling system is required. Heating installation can be carried out using the Samsung EHS Mono version, the outdoor unit, and the control module, as well as installation components from various manufacturers. The Mono outdoor unit can also be combined with the compact ClimateHub indoor unit.

• Intuitive controller with touchscreen in several languages
• Energy monitoring via touch controller
• Easy maintenance thanks to the front-mounted inspection window
• Collaboration with Smart Grid and collaboration with a photovoltaic system
• 2-zone control, suitable for underfloor heating and radiators
• Compatible with SmartThings app with optional WiFi kit

Specifications:

• Heating output (A7/W35 / A7/W55 °C): 5.0 kW / 4.3 kW
• Cooling capacity (A35°C / W18°C): 5.0 kW
• Nom. power consumption heating (A7/W35 / A7/W55 °C): 1.03 / 1.52 kW
• Nom. power consumption cooling (A35 / W18 °C): 1.14 kW
• COP (nominal heating) (A7/W35¹/ A7/W55 °C): 4.85 / 2.83 W/W
• EER (nominal cooling) (A35°C, W18°C): 4.39 W/W
• Energy efficiency class heating (LWT 35°C/55°C): A+++ / A++
• Operating temperature heating / cooling: -25 - 35 °C / 10 - 46 °C
• Operating temperature domestic hot water: -25 - 43 °C
• Sound pressure level heating / cooling: 45 / 45 dB(A)
• Sound power level heating: 61 dB(A)
• Net dimensions (WxHxD): 880 x 798 x 310 mm
• Net weight: 58.5 kg
• Refrigerant: R32, GWP=675

The device does not contain a heating element.

Included in delivery:

- one outdoor unit including control module

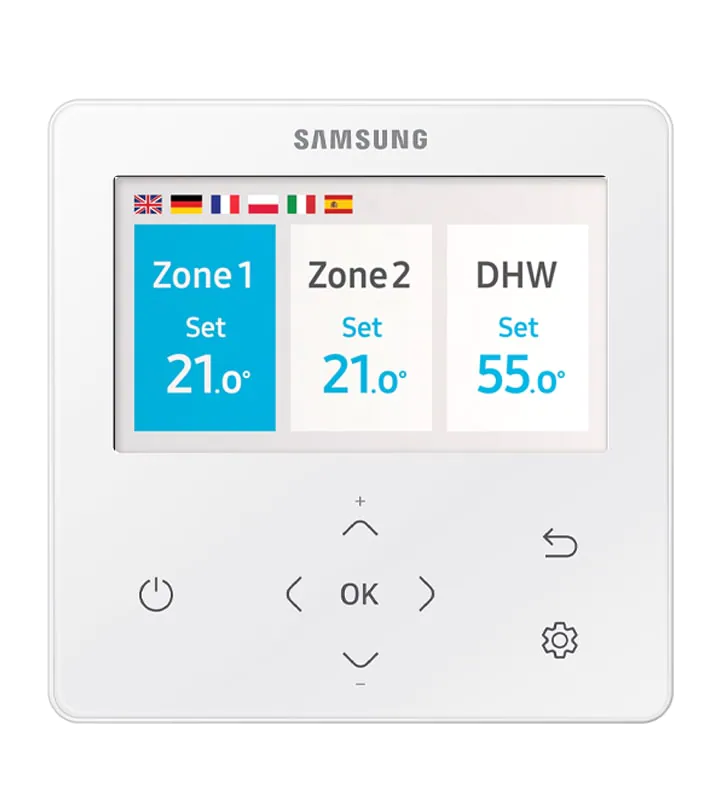

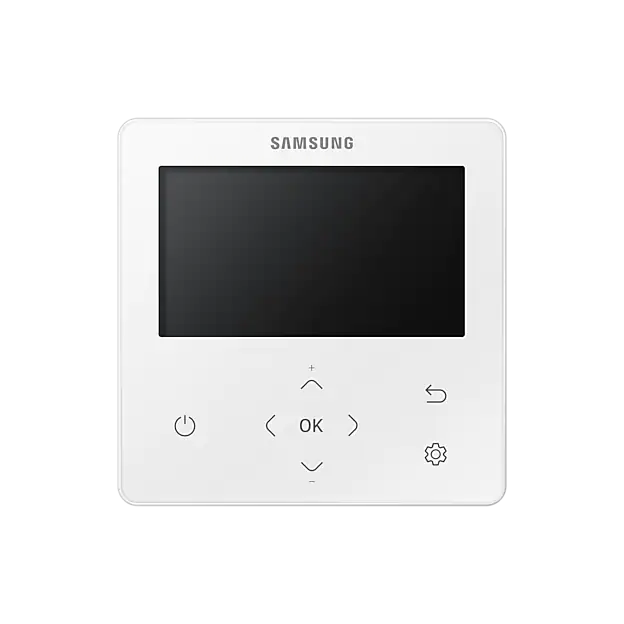

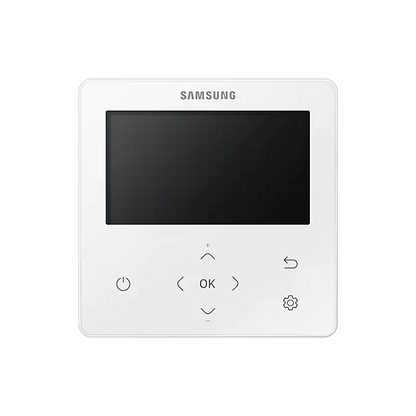

- a touch controller
*optional WiFi module MIM-H04EN

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
