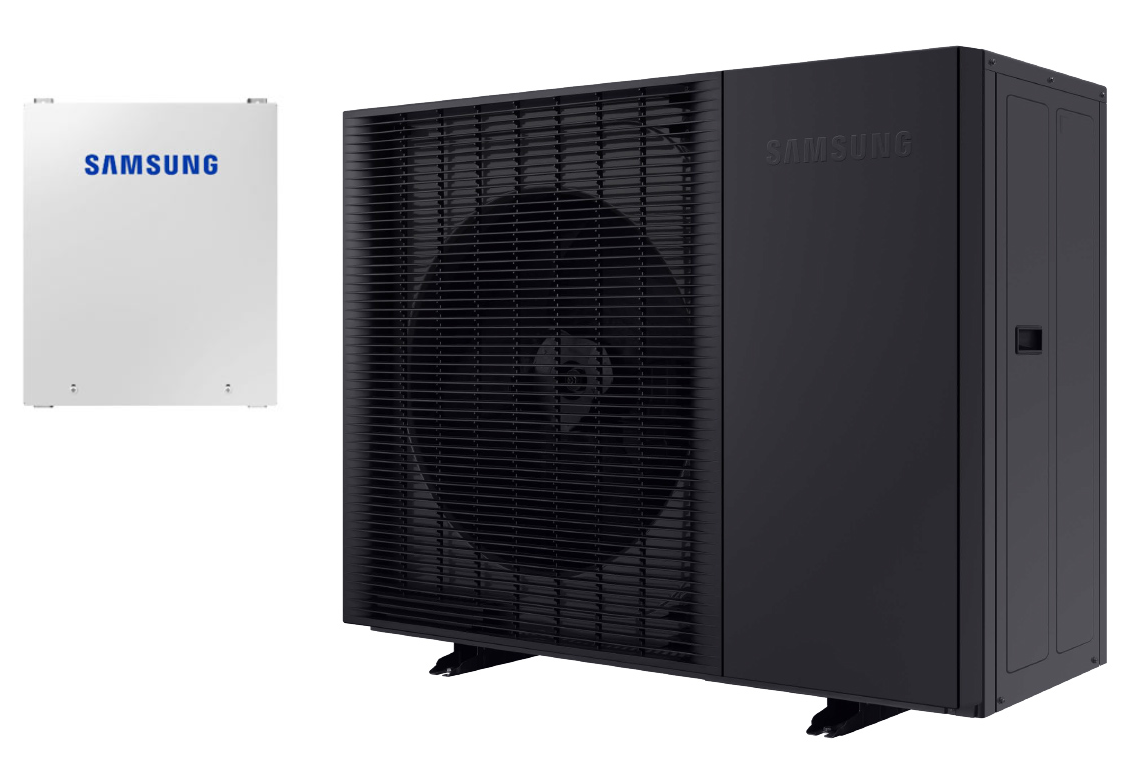

Samsung Air-to-Water Heat Pump | EHS MONO HT Quiet - Standard | Monoblock | Outdoor Unit AE140BXYDEG/EU + Control Module MIM-E03EN (incl. Touch Controller MWR-WW10N) | 1P, 220~240 V, 50 Hz | A++ | *Optional WiFi Module MIM-H04EN

• High hot water temperature: The new EHS Mono HT Quiet is capable of consistently delivering hot water up to 70°C for residential heating purposes. This makes it a suitable replacement for gas boilers, as they deliver a high outlet water temperature.
• Easy installation & integration with SmartThings
• Thanks to the combination of innovative noise reduction technologies and a 4-stage quiet mode, the pump produces a noise level of just 35 d(BA).
• The outdoor unit with optimized corrosion protection for heat exchangers and housing guarantees maximum durability in harsh environments.
• Scroll compressor

Specifications:

• Heating output: 14.00 kW (47,800 Btu/h)
• Cooling capacity: 14.00 kW (47,800 Btu/h)
• COP (Nominal Heating) / EER (Nominal Cooling): 5.05 / 4.46
• Power consumption (nominal) heating / cooling: 13.1 A / 14.87 A
• Power / Energy consumption MCA [A] / MFA [A]: 32.0 A / 35.2 A
• Power consumption (nominal) heating / cooling: 2.77 kW / 3.14 kW
• Fan type: Propeller Fan
• Air volume (High / Medium / Low): 92 CMM
• Refrigerant: R32
• Factory filling: 3.30 kg
• Sound pressure: 47 dB(A)
• Sound power: 60 dB(A)
• Application limits for heating/cooling: -30~43 ℃ / 10~46 ℃
• Application limits for domestic hot water: -30~43 ℃
• Outlet water temperature heating / cooling: 15~70 ℃ / 5~25 ℃
• Net dimensions of outdoor unit (WxHxD): 1270 x 1018 x 530 mm (137 kg)
• Transport dimensions of outdoor unit (WxHxD): 1330 x 1226 x 630 mm (157 kg)

Included in delivery:

- one outdoor unit including control module
- a touch controller
- *optional WiFi module MIM-H04EN

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
