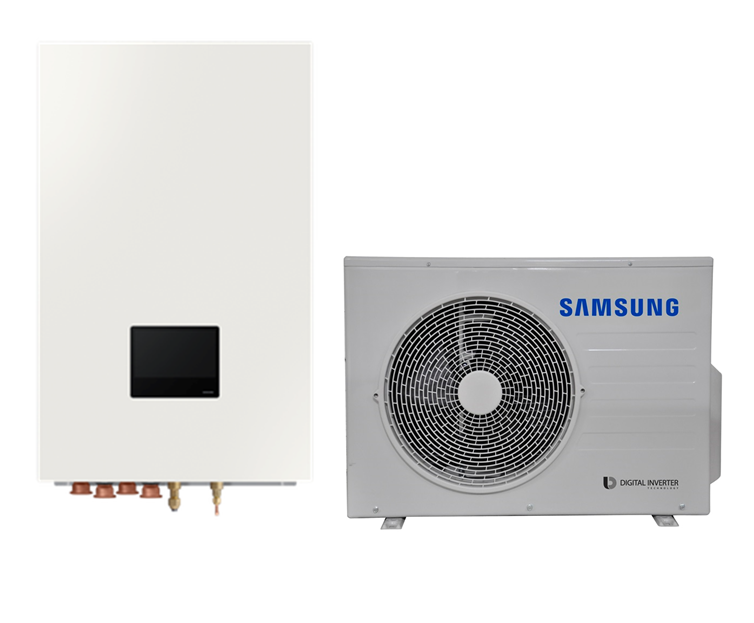

Samsung EHS SPLIT R32 AI home split air/water heat pump for wall/slope mounting WH AE160DNYSPG/EU + AE060RXEDEG/EU 6 kW A++ 1-phase + optional WiFi MIM-H04EN

An air/water heat pump It is a heat source that uses the energy contained in the atmosphere for space heating and hot water preparation. It is an environmentally friendly alternative to coal, gas, oil or electric stoves.

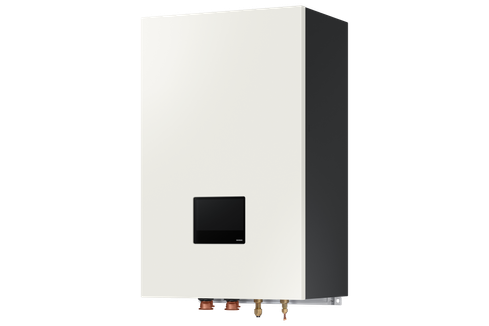

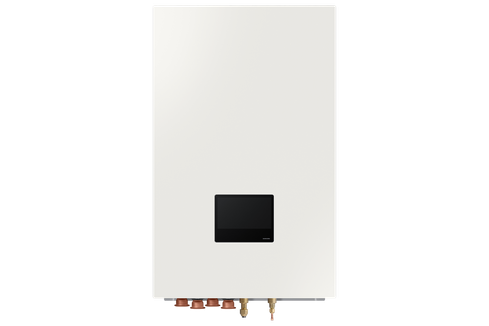

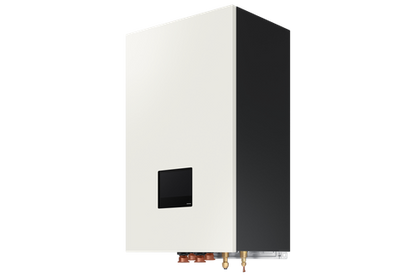

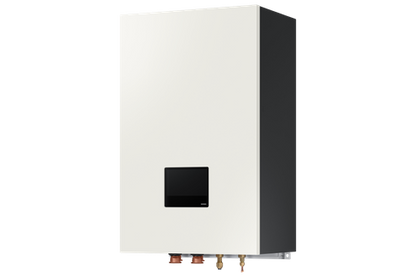

Samsung EHS split heat pump with wall-mounted WH module
The unit is characterized by high efficiency and a minimalist exterior casing. The heat pump uses R32 refrigerant. It has an energy efficiency rating of A++ and is suitable for space heating and hot water preparation. Unlike EHS mono-heat pumps, the EHS split model requires a refrigerant line to the indoor unit.

• Type: Split heat pump (consisting of outdoor and indoor unit)
• Heating output: 6.0 kW
• Cooling capacity: 6.5 kW
• Energy efficiency class A++ (SCOP W55)
• Refrigerant: R32 with a lower global warming potential (GWP) than older refrigerants
• In addition to heating and hot water preparation, the system offers cooling and dual-zone heating (with the optional MOS-T1 module).
• optional WiFi control

Specifications:

• Heating output (A7/W35 / A7/W55 °C): 6.0 kW / 5.2 kW
• Cooling capacity (A35°C / W18°C): 6.5 kW
• Nominal power consumption heating (A7/W35 / A7/W55 °C): 1.22 / 1.81 kW
• Nominal power consumption cooling (A35 / W18 °C): 1.47 kW
• COP (nominal heating) (A7/W35 °C): 4.92 / 2.87 W/W
• EER (nominal cooling) (A35°C, W18°C): 4.42 W/W
• Energy efficiency class heating (LWT 35°C/55°C): A+++ / A++
• Operating temperature heating / cooling: -25 - 35 °C / 10 - 46 °C
• Operating temperature for domestic hot water: -25 - 43 °C
• Sound pressure level of the hydro module (heating/cooling): 26 / 26 dB(A)
• Sound pressure level outdoor unit heating / cooling: 47 / 47 dB(A)
• Sound power level of the hydro module heating: 40 dB(A)
• Sound power level of outdoor unit heating: 60 dB(A)
• Net dimensions of hydro module (W x H x D): 510 x 850 x 315 mm
• Net dimensions of outdoor unit (W x H x D): 880 x 638 x 310 mm
• Net weight of hydro module / outdoor unit: 45.0 kg / 46.5 kg
• Refrigerant: R32, GWP=675
• Pipe connections liquid + gas: 6.35 mm (1/4") + 15.88 mm (5/8")

Included in the delivery:

- an outdoor unit AE060RXEDEG/EU
- an indoor unit AE160DNYSPG/EU
- a touch controller
*Optional WiFi module MIM-H04EN

BEFORE PURCHASING, PLEASE CONTACT US TO CONFIRM AVAILABILITY.

*Important NOTE
Dear Customer, please be aware that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person acquiring the split air conditioner/user confirms that it will be professionally installed by certified professionals.
