Samsung EHS SPLIT ClimateHub 6 kW R32 – 230 V, 200/260 L
Samsung EHS SPLIT ClimateHub 6 kW R32 – 230 V, 200/260 L
Samsung EHS ClimateHub Luft/Wasser Wärmepumpe als All-in-One, Außengerät AE060RXEDEG/EU mit ClimateHub (200 oder 260 Liter Warmwasserspeicher): 6,0 kW Heizleistung bei A7/W35 (COP 4,92), 5,2 kW bei A7/W55 (COP 2,87), Energieeffizienzklasse A+++ bei 35 °C und A++ bei 55 °C Vorlauf, Skala A+++ bis D. Heizbetrieb bis minus 25 °C Außentemperatur, 1~ 230 V. Kühlen 6,5 kW bei A35/W18, elektrische Zusatzheizung und Touch-Controller MWR-WW10N enthalten, 2-Zonen-Regelung, Smart Grid und Photovoltaik, SmartThings mit optionalem WLAN-Kit.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

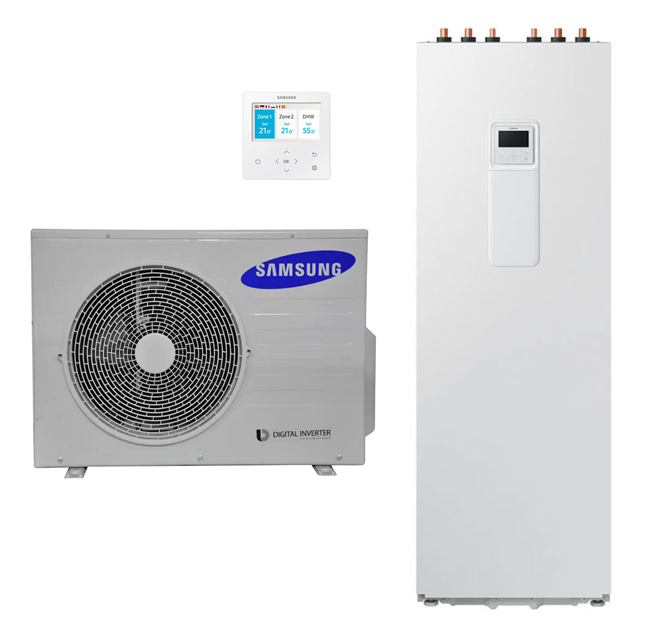

Samsung All-in-One heat pump outdoor unit AE060RXEDEG/EU + hydro module to choose from: AE200RNWSEG/EU with 200 L domestic hot water tank or AE260RNWSEG/EU with 260 L domestic hot water tank Incl. touch controller MWR-WW10N | 1Ф, 2, 220~240V, 50Hz
An air-to-water heat pump is a heat source that uses the energy contained in the atmosphere for space heating and hot water production. It is an environmentally friendly alternative to coal, gas, oil, or electric furnaces.
• Integrated solution for heating and hot water
• Compact size of the device with large Water tank ( 20 0 L or 26 0 L )

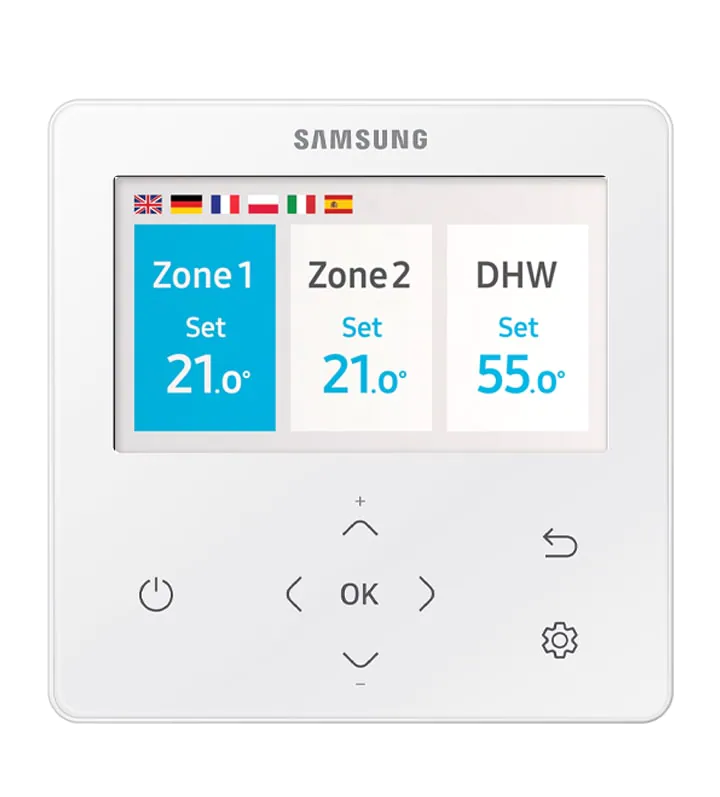

• Intuitive controller with touchscreen in several languages
• Energy monitoring via touch controller
• Compatible with thermostats, solar panels and replacement boilers
• Easy maintenance thanks to the front-mounted inspection window
• Collaboration with Smart Grid and with a photovoltaic system
• 2-zone control, suitable for underfloor heating and radiators
• Seasonal efficiency class SCOP A+++
• Compatible with SmartThings app with optional WiFi kit
• A spare electric heater for continuous heating is included in the delivery
• Four-stage silent mode
Specifications:
• Heating output (A7/W35 / A7/W55 °C): 6.0 kW / 5.2 kW
• Cooling capacity (A35°C / W18 °C): 6.5 kW
• Nom. power consumption heating (A7/W35 / A7/W55 °C): 1.22 / 1.81 kW
• Nom. power consumption cooling (A35 / W18 °C): 1.47 kW
• COP (nominal heating) (A7/W35 °C): 4.92 / 2.87 W/W
• EER (nominal cooling) (A35°C, W18 °C): 4.42 W/W
• Energy efficiency class heating (LWT 35°C/55 °C): A+++ / A++
• Operating temperature heating / cooling: -25 - 35 °C / 10 - 46 °C
• Operating temperature of domestic hot water: -25 - 43 °C
• Sound pressure level hydromodule heating / cooling: 26 / 26 dB(A)
• Sound pressure level outdoor unit heating / cooling: 47 / 47 dB(A)
• Sound power level hydromodule heating: 40 dB(A)
• Sound power level outdoor unit heating: 60 dB(A)
• Net dimensions of hydro module (W x H x D): 595 x 1 800 x 700 mm
• Net dimensions of outdoor unit (W x H x D): 880 x 638 x 310 mm
• Net weight:
Hydro module with 200 L water tank : 136.0 kg
Hydro module with 260 L water tank: 146.0 kg
Outdoor unit: 46.5 kg
• Refrigerant: R32, GWP=675
• Pipe connections liquid + gas: 6.35 mm (1/4") + 15.88 mm (5/8")
Included in delivery:

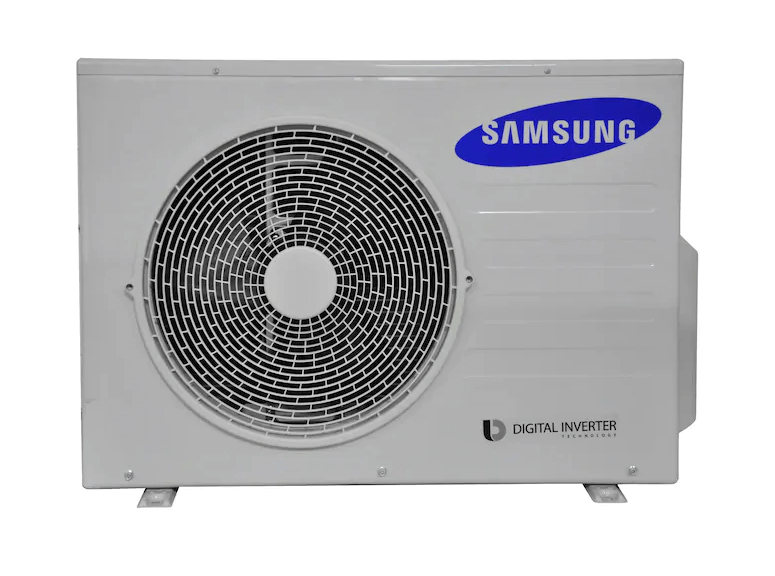

- one outdoor unit AE060RXEDEG/EU

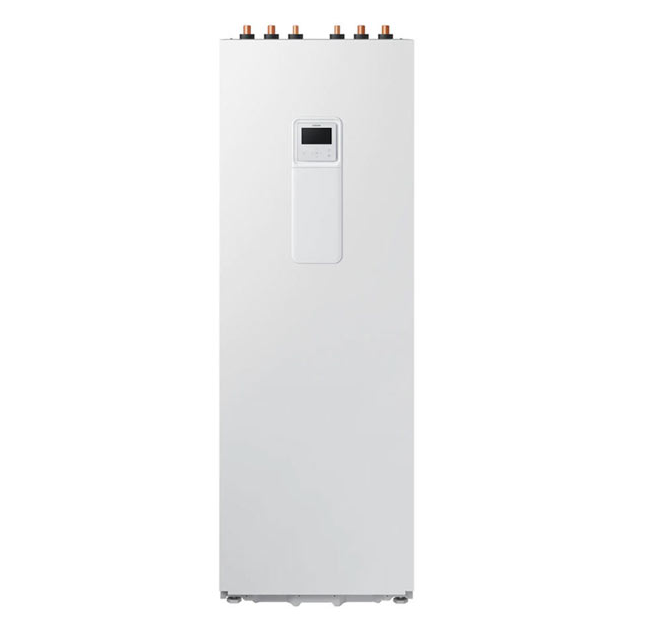

- one indoor unit AE200RNWSEG/EU with 200 L domestic hot water tank or AE260RNWSEG/EU with 260 L domestic hot water tank

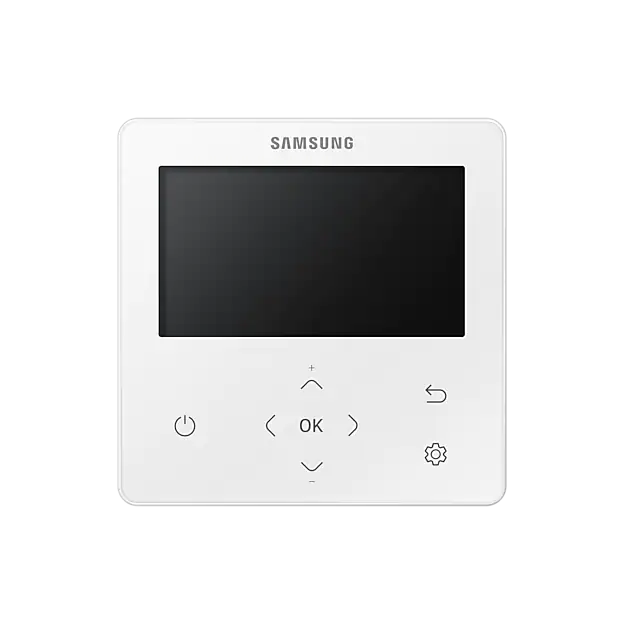

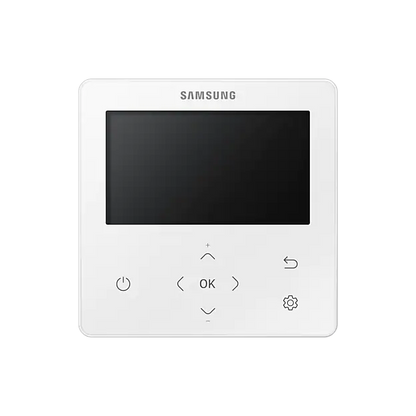

- a touch controller MWR-WW10N
BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
