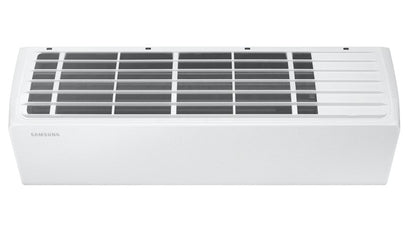

Samsung WindFree Comfort Split Air Conditioner 2.5 kW with Wi-Fi

Samsung WindFree Comfort Split Air Conditioner 2.5 kW with Wi-Fi

Samsung WindFree Comfort split air conditioner with 2.5 kW cooling and 3.2 kW heating capacity, suitable for rooms of approximately 20 to 26 m²*. A++ cooling efficiency, rated A+++ to D. WindFree cooling without direct airflow, 19 dB(A). Installation kit optional.

Regular price €979,00
Regular price Sale price €979,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
Mounting kit

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Samsung WindFree Comfort is in energy efficiency class A++ in cooling mode and A+ in heating mode, on the A+++ to D scale. It delivers 2.5 kW cooling and 3.2 kW heating capacity, with a SEER of 6.7 and SCOP of 4.0. In Wind-Free mode, the indoor unit releases cooled air without a direct airflow and operates at 19 dB(A). Wi-Fi control is integrated from the factory. The performance class is suitable as a guide for rooms of approximately 20 to 26 m²*.

The delivery includes the indoor unit, outdoor unit, and remote control. You can optionally select an installation kit in the variant selection, in lengths of 3 to 12 meters. It is not included in the base price.

Performance and range of use

The set delivers 2.5 kW cooling capacity and 3.2 kW heating capacity. Cooling mode is possible at outdoor temperatures from minus 10 to plus 46 °C, and heating mode from minus 15 to plus 24 °C. The maximum allowable pipe length is 3 to 15 meters, with a height difference of up to 8 meters. The pipe connections have 1/4" on the liquid side and 3/8" on the gas side.

The stated area of approximately 20 to 26 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which performance class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. A system that is too small will run continuously at full load, while one that is too large will cycle and consume electricity unnecessarily. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average sunlight exposure. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different performance class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 2.5 kW cooling and 3.2 kW heating capacity for rooms of approximately 20 to 26 m²*.
  • Wind-Free cooling: the cooled air is released into the room without a direct airflow.
  • 19 dB(A) in the quiet operation of the indoor unit, 37 dB(A) at the highest level.
  • Energy efficiency class A++ in cooling and A+ in heating on the A+++ to D scale, with a SEER of 6.7 and SCOP of 4.0.
  • Wi-Fi control from the factory with the SmartThings app.
  • Remote control included.
  • Installation kit from 3 to 12 meters optionally available for order.

Detailed functions

Wind-Free operation

In Wind-Free mode, the indoor unit releases the cooled air without blowing a direct airflow into the room. The sound pressure level is 19 dB(A). In addition, the Wind-Free Good Sleep mode is available for the night.

Filter and cleaning

  • Easy Filter Plus: the filter is accessible from the outside and can be removed
  • Automatic cleaning of the indoor unit in three steps

Operating modes

  • Cooling, heating, and dehumidifying the room air
  • Fast Cooling for rapid cooling
  • AI Auto Comfort
  • Fan operation

Control and comfort

  • Wi-Fi control integrated from the factory, operated via the SmartThings app
  • 24-hour timer
  • Automatic airflow direction control vertically and horizontally

Operational safety

  • DuraFin Plus on the heat exchanger of the outdoor unit

Optional: Installation kit 3 to 12 meters

You can order the appropriate installation kit directly with the unit. It is not included in the base price and includes:

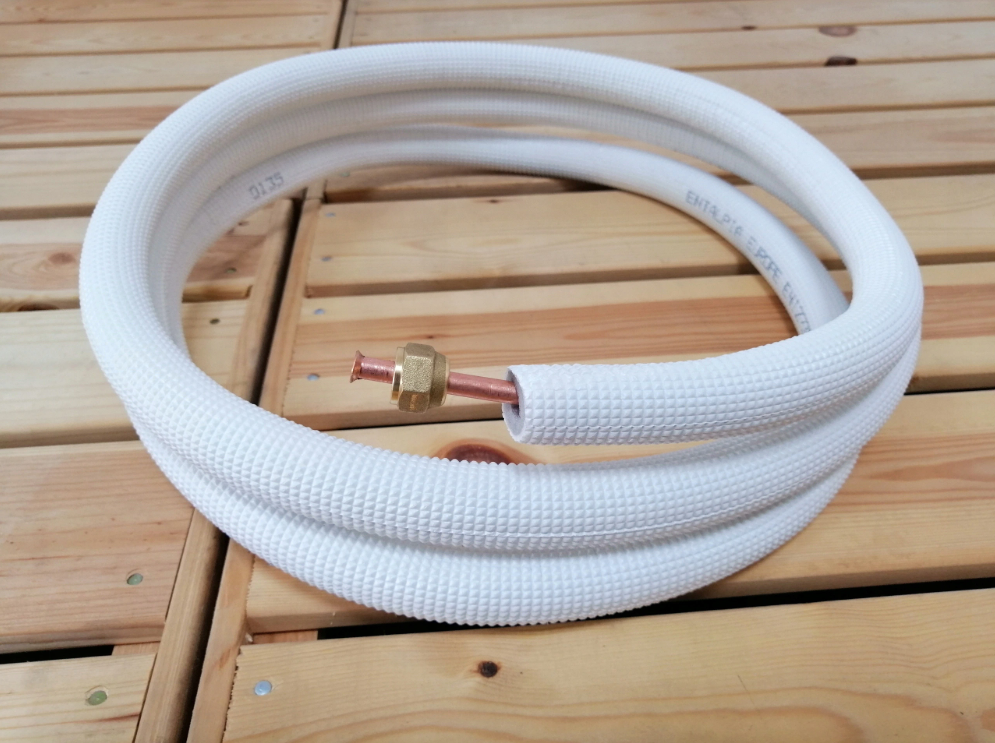

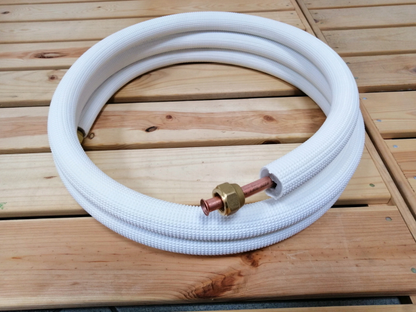

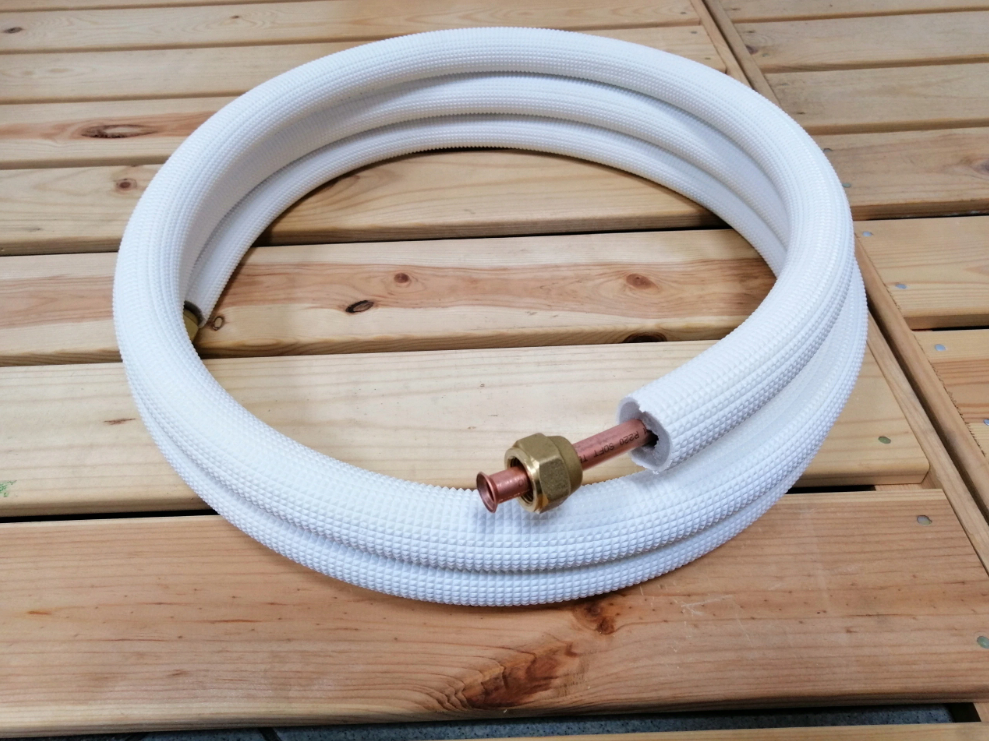

  • Insulated copper tubing Armacell 1/4" and 3/8", flared, with union nuts

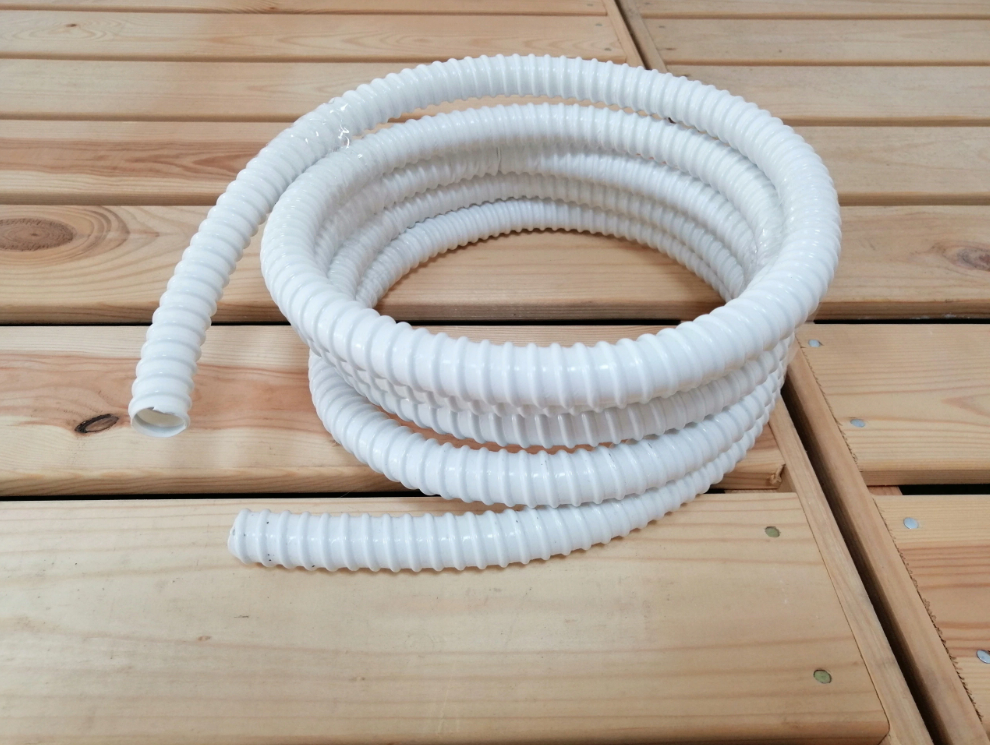

  • 16 mm condensate hose

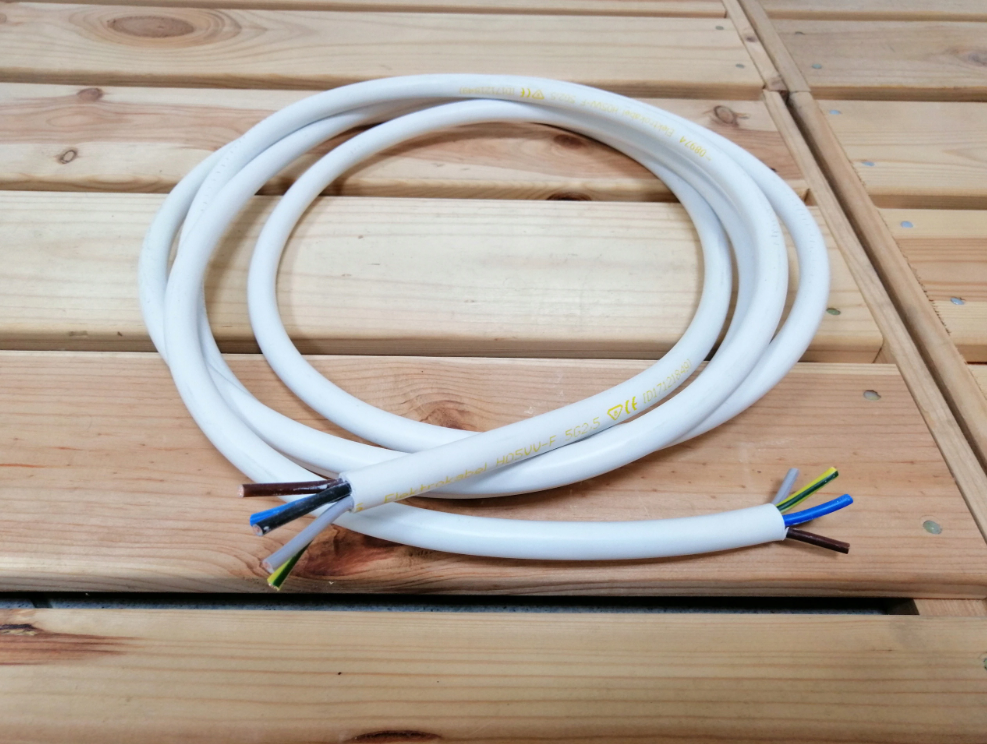

  • 5x 1.5 mm² electrical cable

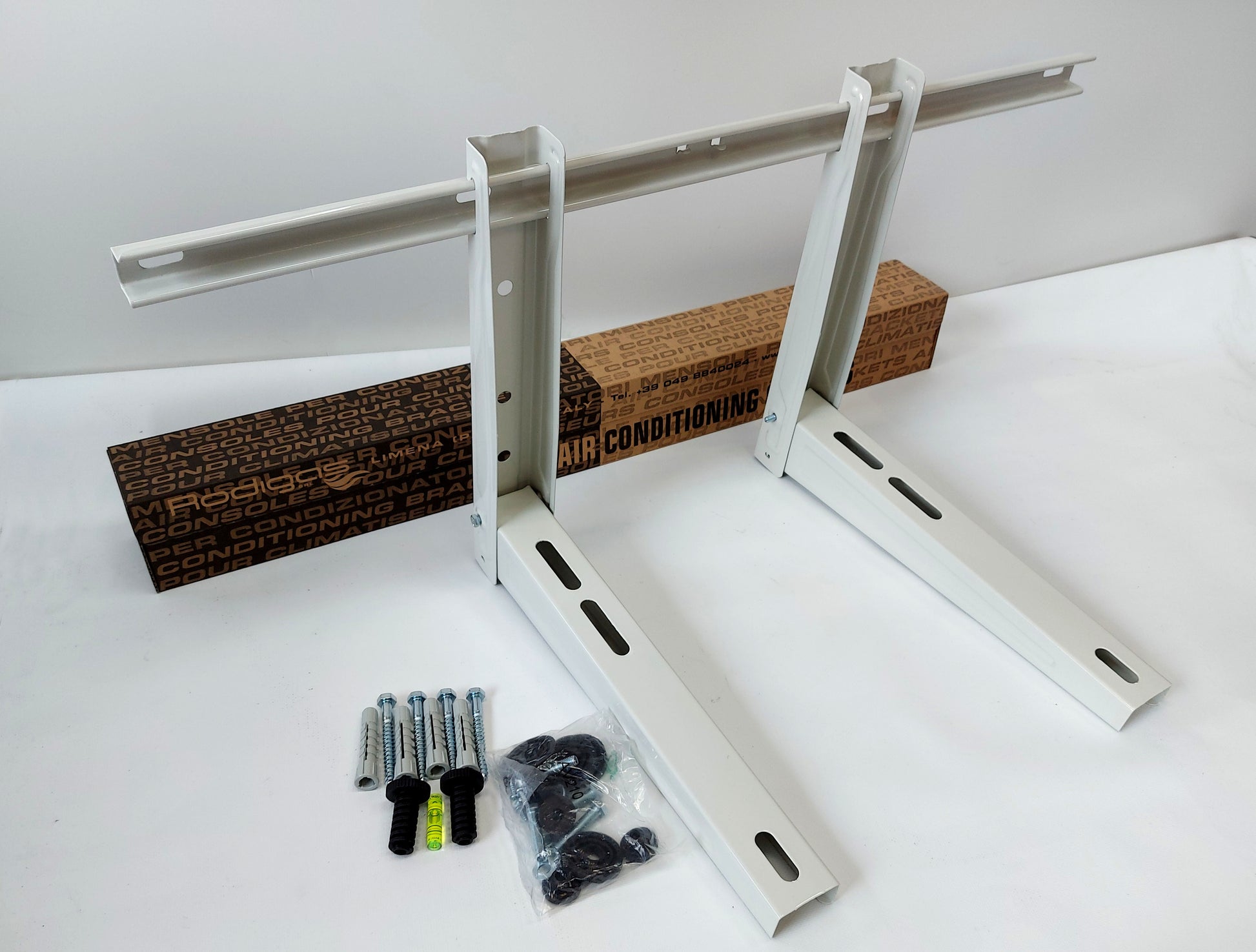

  • Rodigas wall bracket for the outdoor unit
  • Wall sleeve

The pipes in the set are matched to the pipe connections of this unit, 1/4" on the liquid side and 3/8" on the gas side. You select the length in the variant selection.

Scope of delivery

Included in the standard scope:

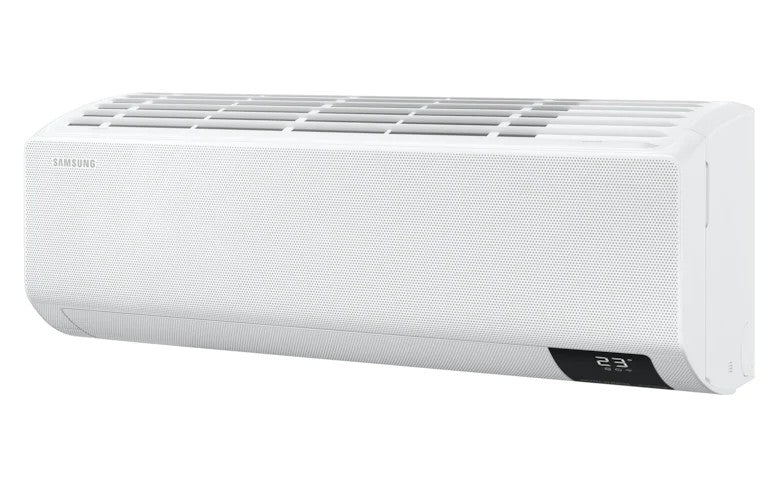

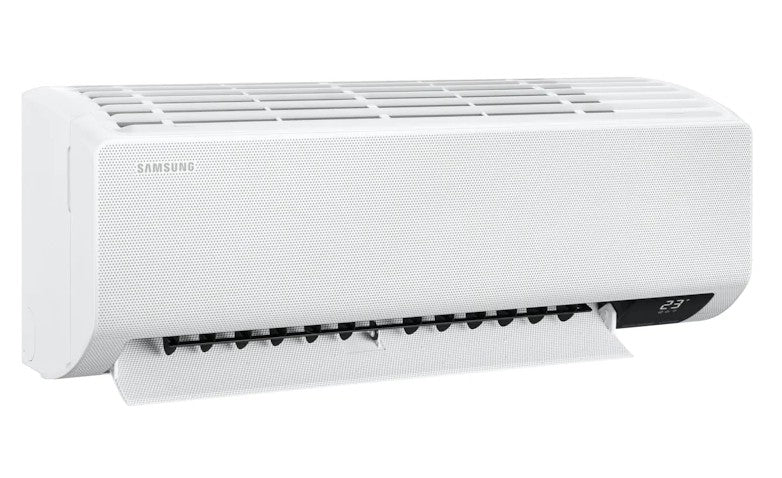

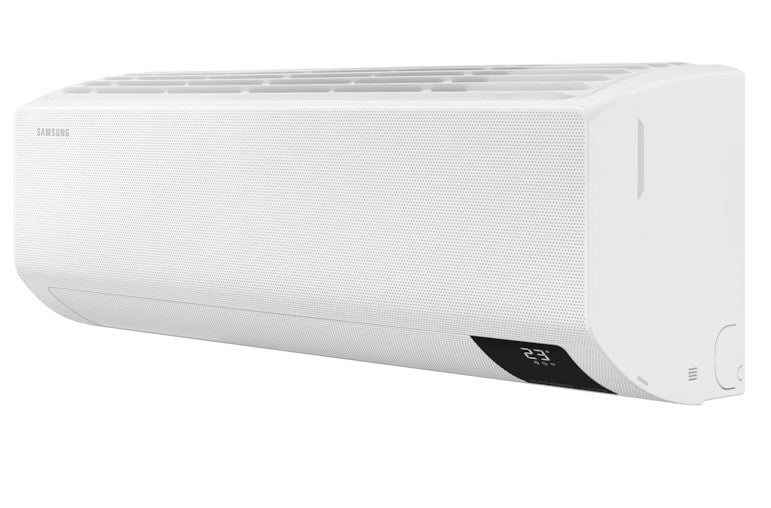

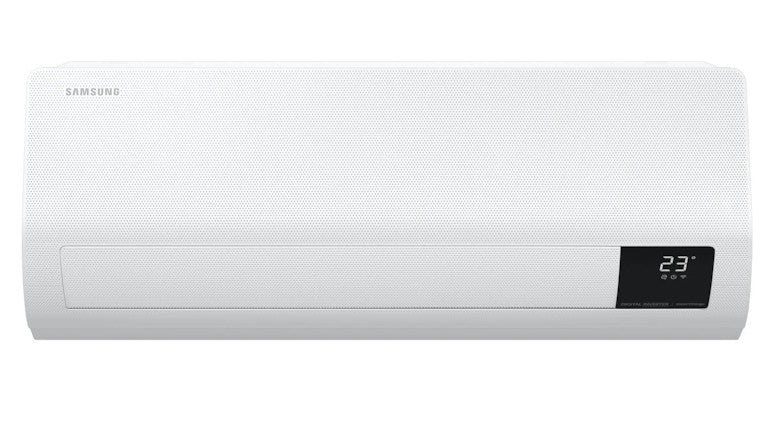

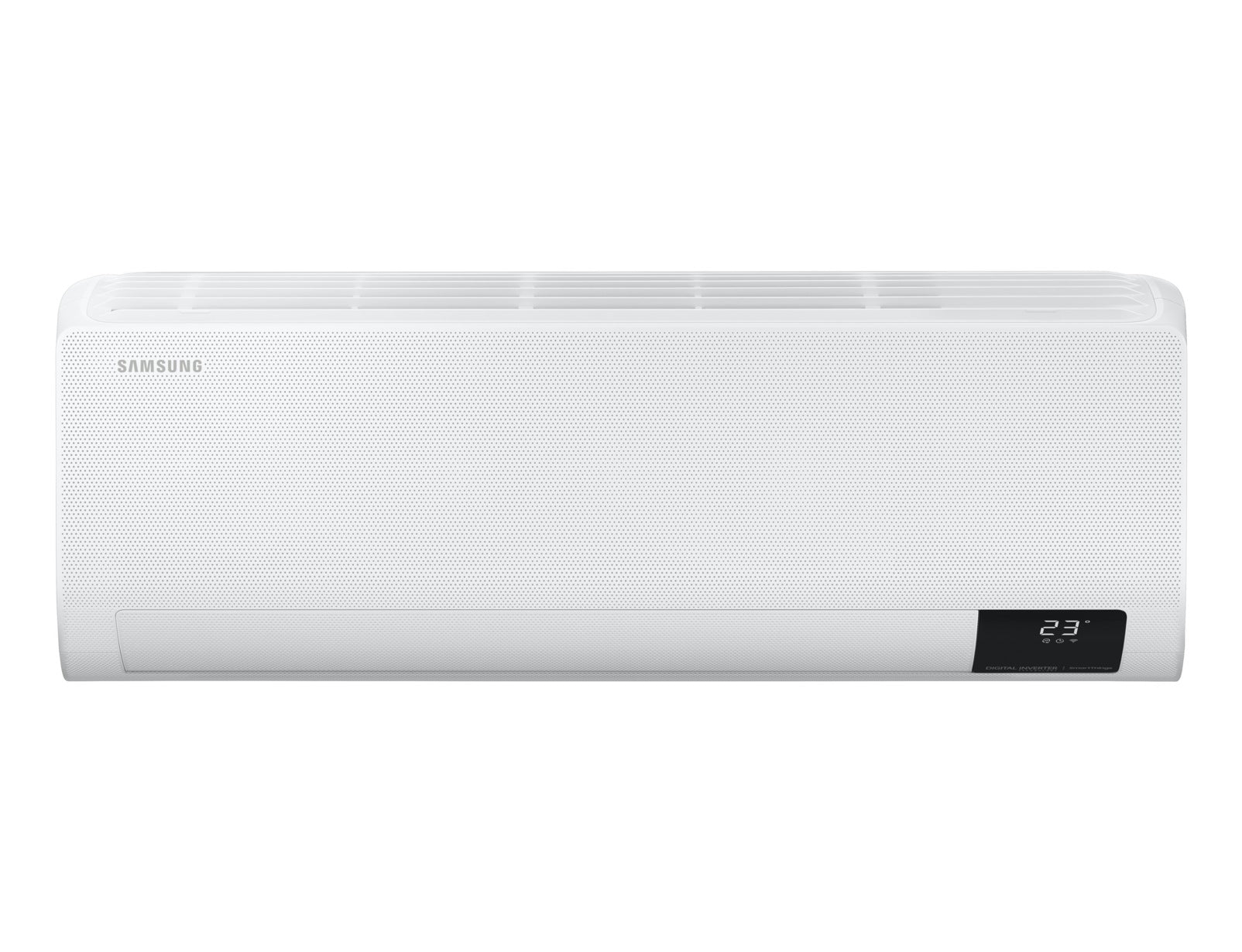

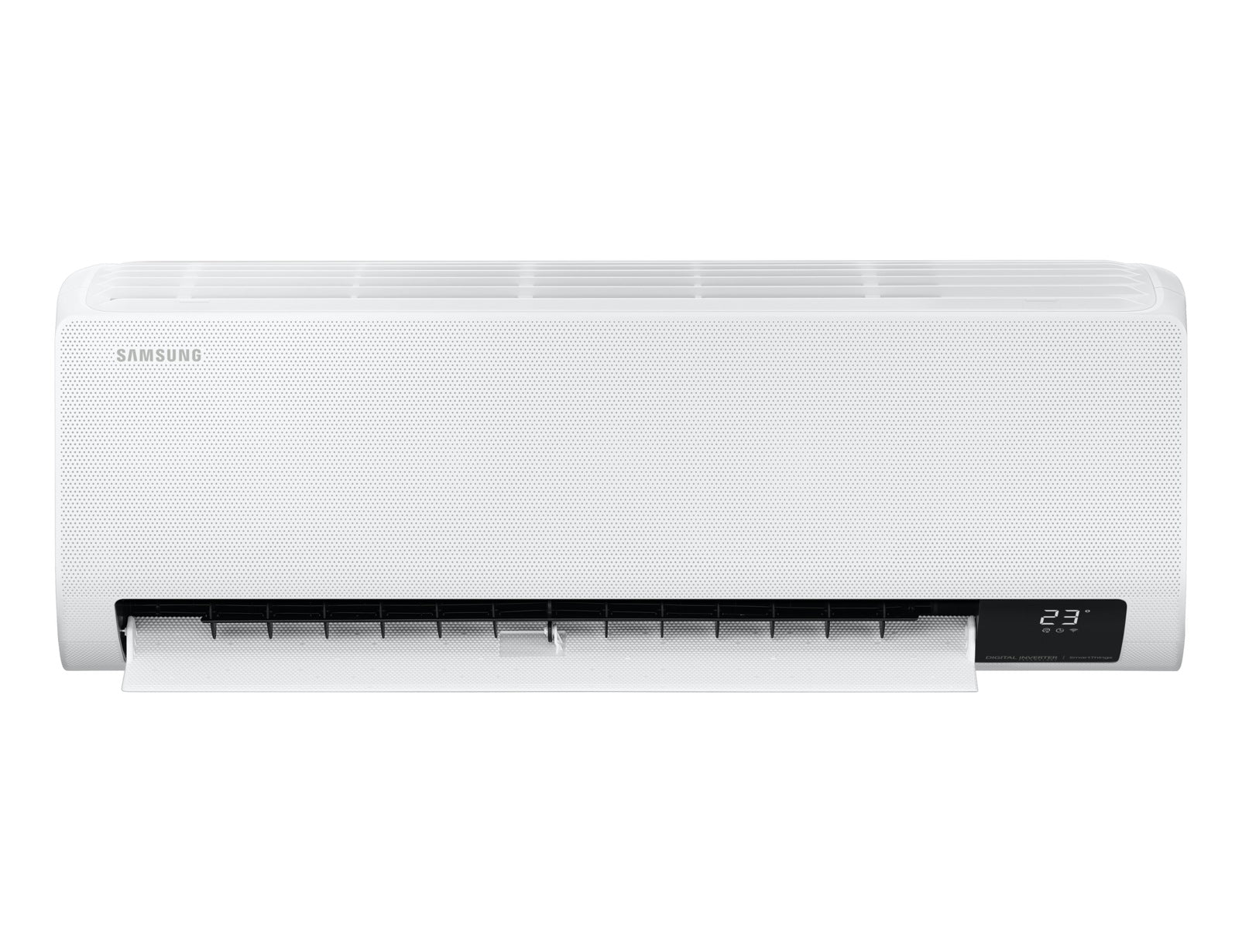

  • 1x Samsung AR09TXFCAWKN/EU indoor unit
  • 1x Samsung AR09TXFCAWKX/EU outdoor unit

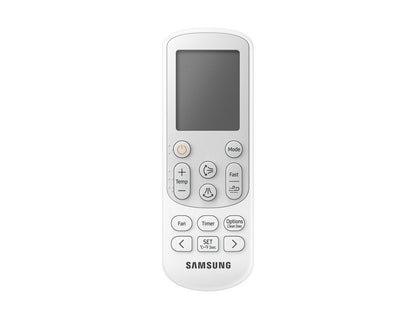

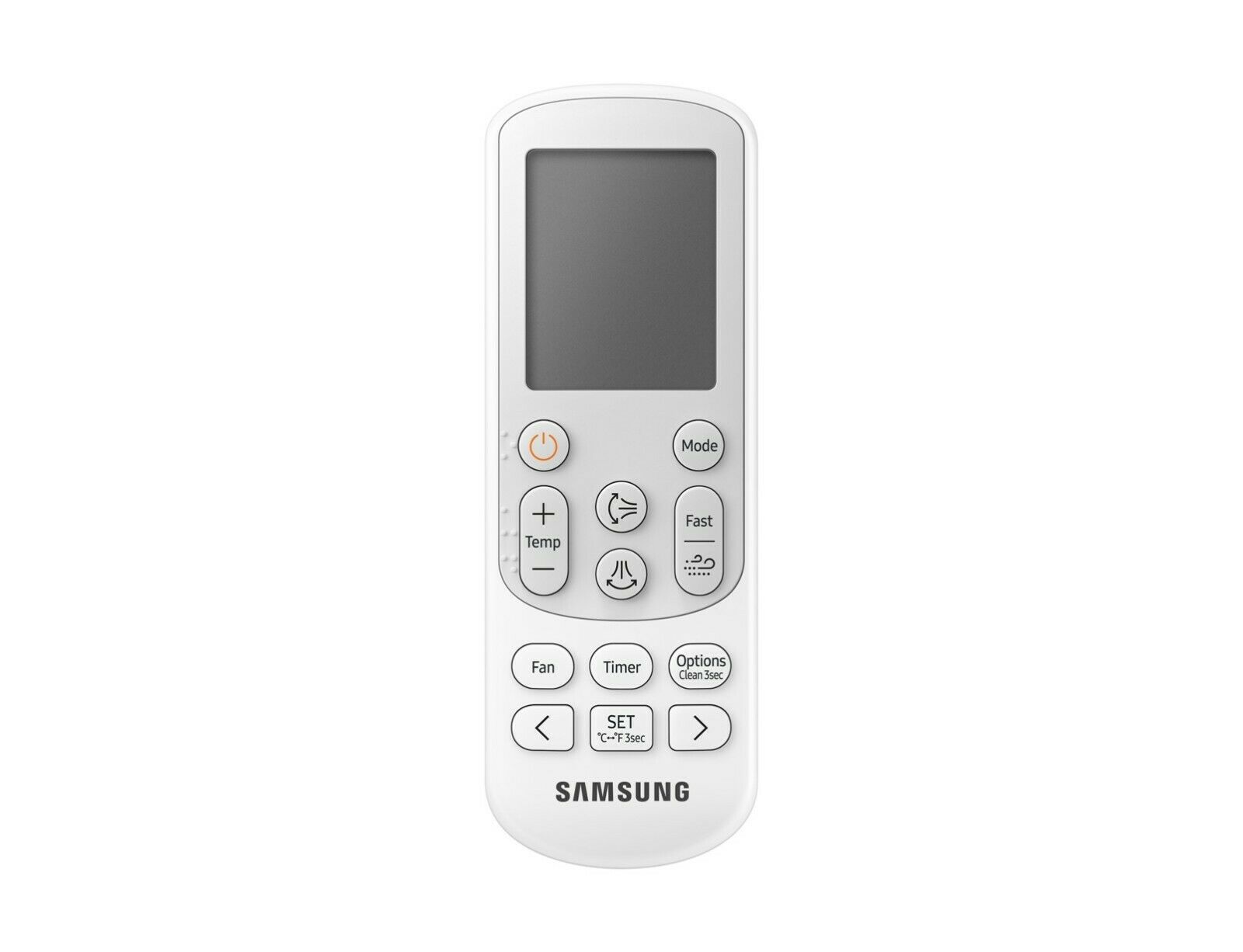

  • 1x remote control

What you need in addition

  • 1/4" and 3/8" refrigerant lines and installation material, if you do not select an installation kit
  • Condensate pump, depending on the installation situation
  • Electrical supply line and circuit breaker
  • Installation and commissioning by a certified specialist company

Technical data

Series WindFree Comfort
Indoor unit Samsung AR09TXFCAWKN/EU
Cooling capacity 2.5 kW
Heating capacity 3.2 kW
Energy efficiency class Cooling / Heating A++ / A+, A+++ to D scale
SEER / SCOP 6.7 / 4.0
Indoor unit sound pressure level 37 dB(A) high, 19 dB(A) quiet
Indoor unit dimensions (WxHxD) 820 x 299 x 215 mm, 8.9 kg
Wi-Fi integrated from the factory, SmartThings app
Outdoor unit Samsung AR09TXFCAWKX/EU
Outdoor unit sound pressure level 46 dB(A)
Outdoor unit dimensions (WxHxD) 660 x 475 x 242 mm, 23 kg
Cooling / Heating operating range -10 to +46 °C / -15 to +24 °C
Pipe length min. / max. 3 / 15 m
Max. height difference 8 m
Pipe connections Liquid + Gas 6.35 mm (1/4") + 9.52 mm (3/8")
Power supply 220 to 240 V, 50 Hz, 1 phase

Frequently Asked Questions

What does Wind-Free mean?

In Wind-Free mode, the indoor unit releases the cooled air without blowing a direct airflow into the room. For workplaces and bedrooms where a noticeable draft is disruptive, this is the main difference from standard cooling operation.

What energy efficiency class does the system have?

A++ in cooling and A+ in heating, on the A+++ to D scale. The SEER is 6.7, the SCOP is 4.0.

How loud is the unit?

For the indoor unit, the manufacturer specifies 37 dB(A) at the highest and 19 dB(A) at the quiet level, and 46 dB(A) for the outdoor unit.

What cooling and heating capacity does the system have?

The cooling capacity is 2.5 kW, the heating capacity is 3.2 kW. We will check which performance class is right for your room upon request.

Is the installation kit included in the price?

No. You can optionally select the installation kit in the variant selection, in lengths of 3 to 12 meters, and it will be added to the base price. Without an installation kit, the delivery includes the indoor unit, outdoor unit, and remote control.

What pipe connections does the system have?

1/4", i.e., 6.35 mm, on the liquid side and 3/8", i.e., 9.52 mm, on the gas side. The maximum allowable pipe length is 3 to 15 meters, and the height difference is up to 8 meters.

Can I control the system via Wi-Fi?

Yes, the Wi-Fi control is integrated from the factory and operated via the SmartThings app. In addition, a remote control is included in the delivery.

Can the system heat in winter?

According to the manufacturer, heating mode is possible at outdoor temperatures from minus 15 to plus 24 °C. We will check upon request whether the system is sufficient as the sole heating for your room.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.

Manufacturer Information

Manufacturer/EU Representative:Samsung Electronics GmbH
Postal address:Am Kronberger Hang 6, 65824 Schwalbach am Taunus, Germany
E-mail addressContact via form on samsung.com/de (for partners:eu.support@digikey.com)

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.

F-Gas Regulation Download Declaration
