Samsung WindFree Elite Split Air Conditioner 2.5 kW with Wi-Fi

Samsung WindFree Elite Split Air Conditioner 2.5 kW with Wi-Fi

Samsung WindFree Elite split air conditioner with 2.5 kW cooling and 3.2 kW heating capacity, suitable for rooms of approximately 20 to 26 m²*. A+++ for cooling and heating, on a scale from A+++ to D, SCOP 5.1. WindFree cooling without direct airflow, 16 dB(A).

Regular price €1.399,00
Regular price Sale price €1.399,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
Mounting kit

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Samsung WindFree Elite has an energy efficiency rating of A+++ in both cooling and heating modes on the A+++ to D scale. It delivers 2.5 kW of cooling and 3.2 kW of heating capacity, with an SEER of 8.8 and an SCOP of 5.1. In Wind-Free mode, the indoor unit releases cooled air without a direct airflow and operates at 16 dB(A). Wi-Fi control is integrated from the factory. The power class is suitable as a guide for rooms of approximately 20 to 26 m²*.

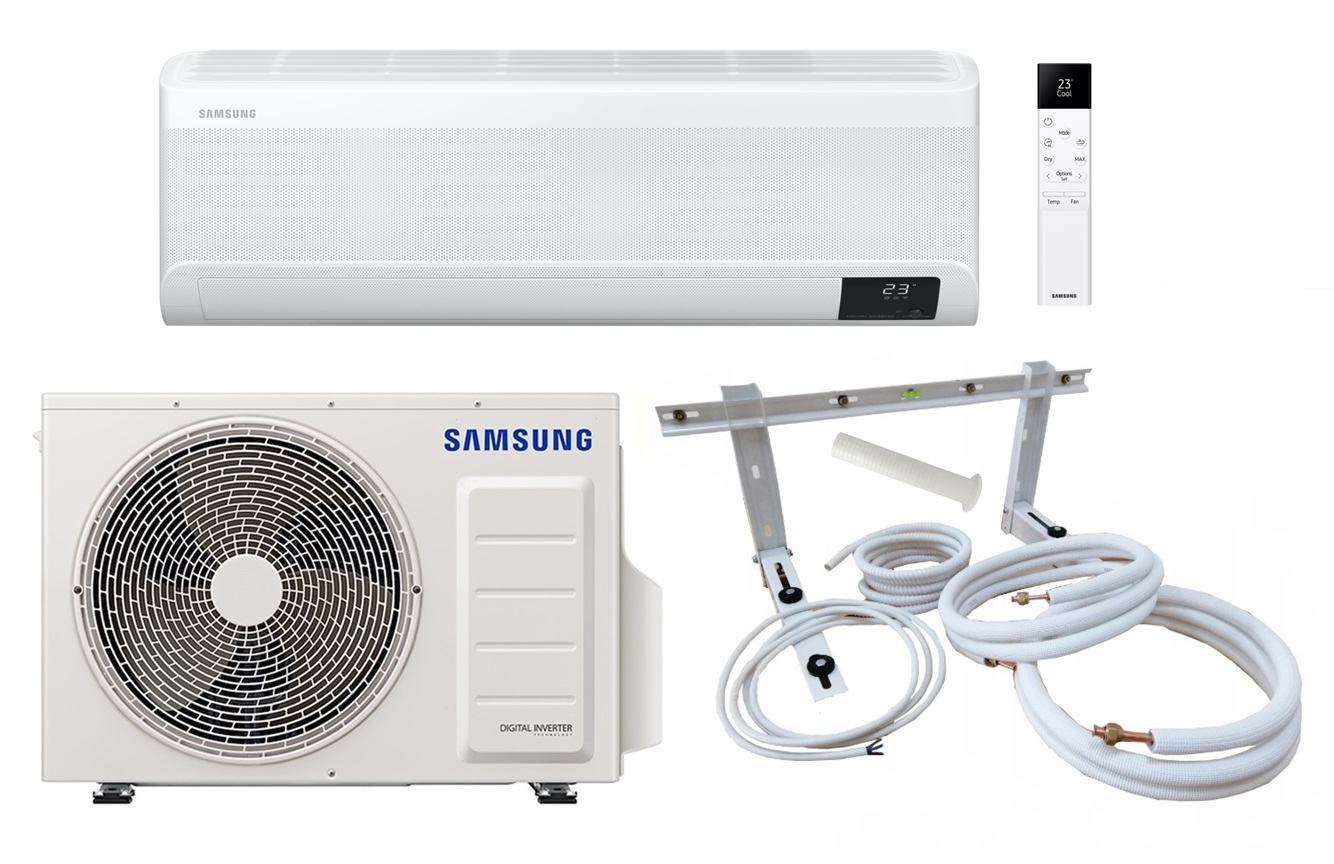

The delivery includes the indoor unit, outdoor unit, and remote control. You can optionally select an installation kit in lengths of 3 to 12 metres from the options.

Performance and range

The set delivers 2.5 kW of cooling capacity in the range of 0.9 to 3.6 kW and 3.2 kW of heating capacity at plus 7 °C in the range of 0.8 to 7.1 kW. Cooling is possible at outdoor temperatures from minus 10 to plus 46 °C, and heating from minus 15 to plus 24 °C. The maximum allowable pipe length is 3 to 15 metres, with a height difference of up to 8 metres.

The stated area of approximately 20 to 26 m²* is a guideline for standard room height and normal insulation standards, not a binding specification. Which power class is right for your property depends on the room height, insulation standards, window areas, shading, and the number of people and devices. An undersized system will run continuously at full load, while an oversized system will cycle on and off and consume electricity unnecessarily. We can check the appropriate sizing for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average sunlight exposure. Different conditions on site, such as large window areas, sloped roofs, or a high number of occupants, may require a different power class. The binding specification is carried out on a property-specific basis. For a professional sizing of your property, please contact us.

The most important benefits at a glance

  • 2.5 kW cooling and 3.2 kW heating capacity for rooms of approximately 20 to 26 m²*.
  • Wind-Free cooling: the cooled air is released into the room without a direct airflow.
  • 16 dB(A) in the quiet mode of the indoor unit, 39 dB(A) at the highest level.
  • Energy efficiency class A+++ in cooling and heating on the A+++ to D scale, with an SEER of 8.8 and an SCOP of 5.1.
  • SolarCell remote control: with a solar cell and USB-C, no battery replacement is required.
  • Wi-Fi control integrated from the factory with the SmartThings app and remote control included in the delivery.
  • Installation kit from 3 to 12 metres optionally available for order.

Detailed functions

Wind-Free operation

In Wind-Free mode, the indoor unit releases the cooled air without blowing a direct airflow into the room. The sound pressure level is 16 dB(A). In addition, the Wind-Free Good Sleep mode is available for the night.

Filter and cleaning

  • Tri-Care filter in the indoor unit
  • Easy Filter Plus: the filter is accessible from the outside
  • Automatic cleaning of the indoor unit in three steps
  • Filter cleaning indicator on the device

Operating modes

  • Cooling, heating and dehumidifying the room air
  • Fast Cooling for rapid cooling
  • ECO mode and AI Auto Comfort
  • Motion detection in the indoor unit
  • Five levels in cooling mode and four in fan mode

Control and comfort

  • Wi-Fi control integrated from the factory, operated via the SmartThings app
  • SolarCell remote control with a solar cell, USB-C port, and OLED display
  • 24-hour timer
  • Automatic airflow control

Operational safety

  • DuraFin Plus on the heat exchanger of the outdoor unit
  • Automatic restart after a power failure

Optional: Installation kit 3 to 12 metres

You can order the appropriate installation kit directly with the unit. It includes:

  • Insulated copper pipe
  • Condensate hose
  • Electrical cable

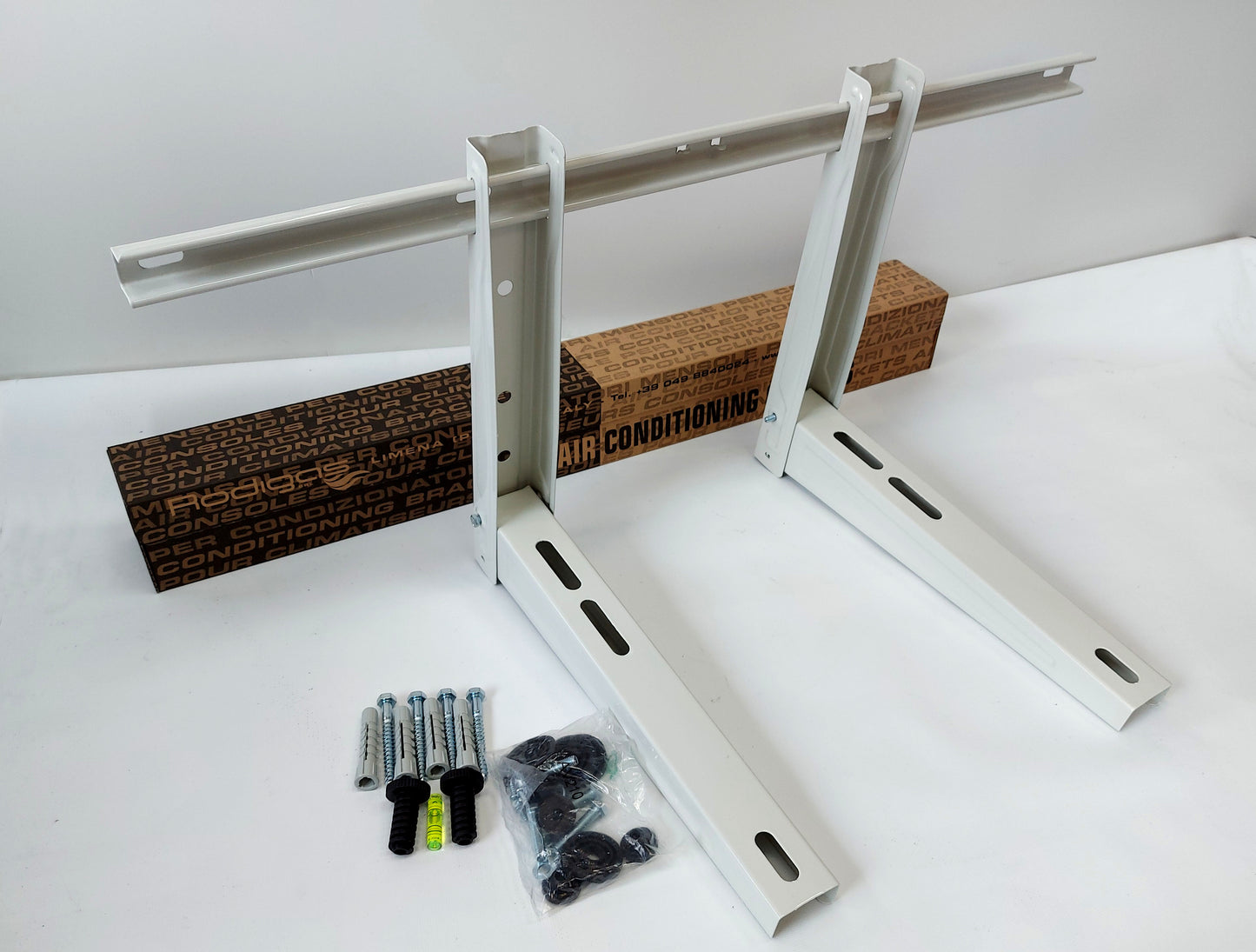

  • Wall bracket for the outdoor unit
  • Wall sleeve

The pipes in the set are designed for the pipe connections of this unit, 1/4" on the liquid side and 3/8" on the gas side. You can choose the length from the options.

Scope of delivery

Standard delivery includes:

  • 1x Samsung AR09CXCAAWKNEU indoor unit
  • 1x Samsung AR09TXCAAWKXEU outdoor unit
  • 1x SolarCell remote control

What else you need

  • 1/4" and 3/8" refrigerant pipes and installation materials, if you do not choose an installation kit
  • Condensate pump, depending on the installation situation
  • Electrical supply cable and circuit protection
  • Installation and commissioning by a certified specialist company

Technical data

Indoor unit Samsung AR09CXCAAWKNEU
Cooling capacity (Min. / Nom. / Max.) 0.90 / 2.50 / 3.60 kW
Heating capacity at plus 7 °C (Min. / Nom. / Max.) 0.80 / 3.20 / 7.10 kW
Energy efficiency class Cooling / Heating A+++ / A+++, scale A+++ to D
SEER / SCOP 8.8 / 5.1
Sound pressure level indoor unit 39 dB(A) high, 16 dB(A) quiet
Dimensions indoor unit (WxHxD) 889 x 299 x 215 mm, 10.6 kg
Wi-Fi integrated from the factory, SmartThings app
Outdoor unit Samsung AR09TXCAAWKXEU
Sound pressure level outdoor unit 45 dB(A)
Dimensions outdoor unit (WxHxD) 790 x 548 x 285 mm, 32.5 kg
Operating range Cooling / Heating -10 to +46 °C / -15 to +24 °C
Pipe length min. / max. 3 / 15 m
Max. height difference 8 m
Pipe connections Liquid + Gas 6.35 mm (1/4") + 9.52 mm (3/8")
Power supply 220 to 240 V, 50 Hz, 1 phase

Frequently asked questions

What does Wind-Free mean?

In Wind-Free mode, the indoor unit releases the cooled air without blowing a direct airflow into the room. For workplaces and bedrooms where a noticeable draft is disruptive, this is the main difference from conventional cooling operation.

How loud is the unit?

For the indoor unit, the manufacturer specifies 39 dB(A) at the highest and 16 dB(A) at the quiet level, and 45 dB(A) for the outdoor unit.

What cooling and heating capacity does the system have?

The cooling capacity is 2.5 kW in the range of 0.9 to 3.6 kW, and the heating capacity is 3.2 kW at plus 7 °C. We can check which power class is right for your room upon request.

Is the installation kit included in the price?

You can optionally select the installation kit from the options, in lengths of 3 to 12 metres. Without an installation kit, the delivery includes the indoor unit, outdoor unit, and remote control.

How far apart can the indoor and outdoor units be?

The maximum allowable pipe length is 3 to 15 metres, and the height difference is up to 8 metres. The pipe connections are 1/4" on the liquid side and 3/8" on the gas side.

Can I control the system via Wi-Fi?

Yes, Wi-Fi control is integrated from the factory and operated via the SmartThings app. In addition, the SolarCell remote control is included, which is charged via a solar cell and also has a USB-C port.

Can the system heat in winter?

According to the manufacturer, heating is possible at outdoor temperatures from minus 15 to plus 24 °C. We can check upon request whether the system is sufficient as the sole heating for your room.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner are carried out by a certified specialist company. Self-installation is not intended.

Manufacturer Information

Manufacturer/EU Representative:Samsung Electronics GmbH
Postal address:Am Kronberger Hang 6, 65824 Schwalbach am Taunus, Germany
E-mail addressContact via form on samsung.com/de (for partners:eu.support@digikey.com)

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.

F-Gas Regulation Download Declaration
