Bosch CL5000iL-Set 125 4CE ceiling cassette 12.1 kW optional with Wi-Fi

Bosch CL5000iL-Set 125 4CE ceiling cassette 12.1 kW optional with Wi-Fi

Bosch CL5000iL-Set 125 4CE 4-way ceiling cassette with 12.1 kW cooling and 13.5 kW heating capacity, suitable for rooms of approximately 93 to 121 m²*. SEER 6.1 and SCOP 4.0 according to the table; the page does not state an energy efficiency class. CL5000i P 4C panel (950 x 950 mm) and RG 10 N2 remote control included, built-in condensate pump, optional Wi-Fi module.

Regular price €2.699,00
Regular price Sale price €2.699,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
WiFi G 10 CL-1

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

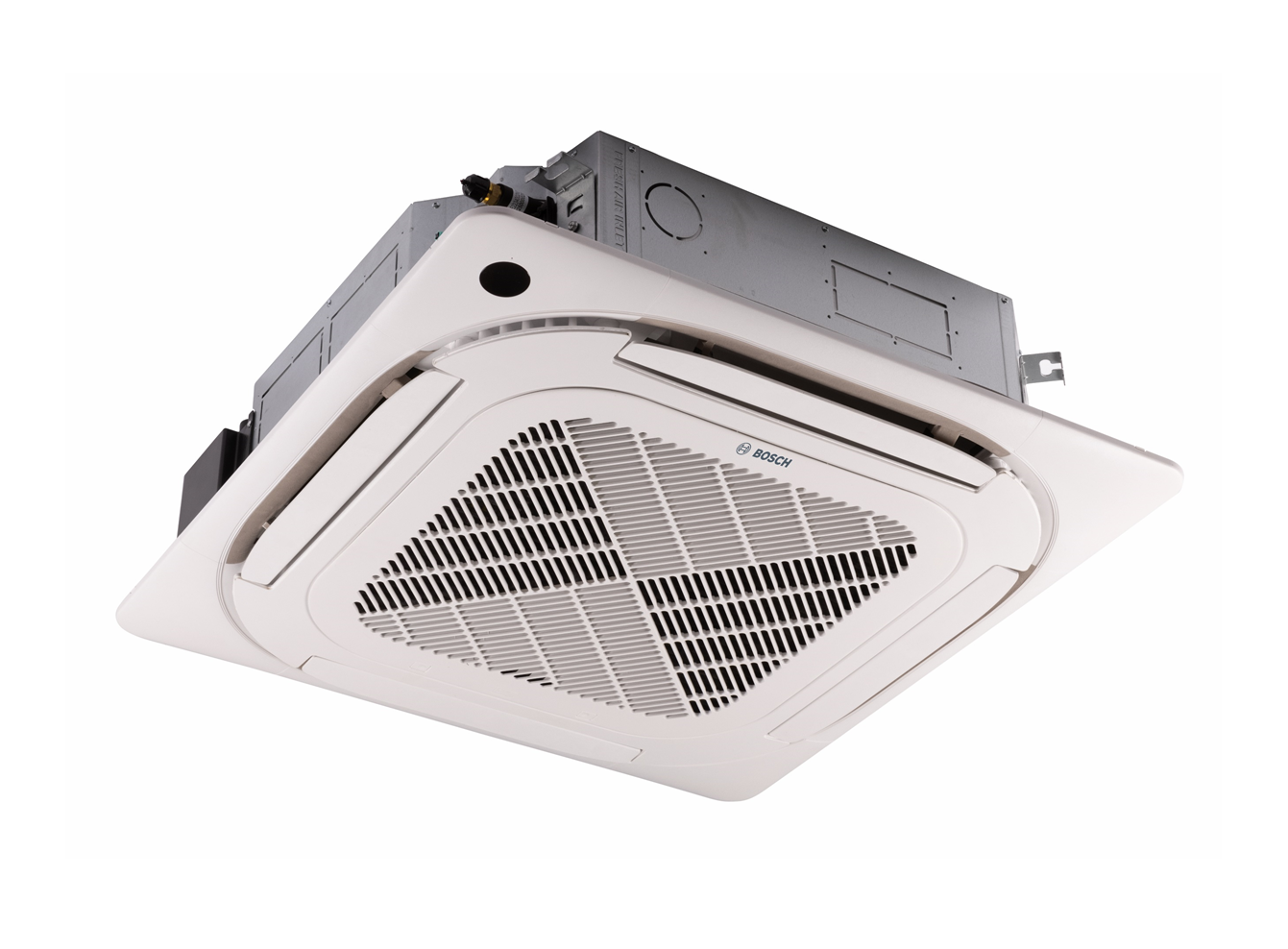

The Bosch CL5000iL-Set 125 4CE is designed for installation in a suspended ceiling: indoor unit CL5000iL 4C 125 E with CL5000i P 4C grille, outdoor unit CL5000L 125 E, 12.1 kW cooling and 13.5 kW heating capacity. SEER 6.1 and SCOP 4.0; the page does not state an energy efficiency class. According to the page, a built-in condensate pump with a 1 m lift height is included; Wi-Fi is available as an option, on this page as the "with WiFi" variant (Wi-Fi module G 10 CL-1). The power class is suitable as a guide for rooms of approximately 93 to 121 m²*.

Performance and range of application

In cooling mode, the unit delivers 12.1 kW, in heating mode 13.5 kW (rated values); the table states 4,200 (680 to 4,350) W and 3,700 (750 to 4,250) W power consumption respectively, and a power supply of 220 to 240 V, 50 Hz, single-phase. Operating range according to the table: minus 15 to plus 50 °C in cooling, minus 15 to plus 24 °C in heating; the power control ranges are not stated on the page. The table states 5,000 W as the maximum power consumption of the outdoor unit.

The stated area of approximately 93 to 121 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Room height, insulation standards, window areas, shading, and the number of people and devices determine which power class is suitable for your property. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 12.1 kW cooling and 13.5 kW heating capacity, power consumption according to the table 4,200 (680 to 4,350) W in cooling.
  • SEER 6.1 and SCOP 4.0 according to the table; the page does not state an energy efficiency class.
  • Built-in condensate pump, lift height according to the page 1 m.
  • Max. line length 75 m, height difference 30 m according to the table.
  • 4-way air outlet with 950 x 950 mm grille included, indoor unit 287 mm high.
  • Remote control RG 10 N2 included; Wi-Fi control optional, Wi-Fi module G 10 CL-1 available as the "with WiFi" variant.

Detailed functions

Inverter and heat pump operation

In heating mode, the unit uses outdoor air down to minus 15 °C as an air-to-air heat pump according to the table. The inverter regulates the power according to demand; the power consumption ranges from 680 to 4,350 W in cooling according to the table. According to the page, the unit automatically diagnoses installation errors, and the ECO mode and Gear with three power levels (50, 75, 100%) limit the power according to the page. Seasonal values according to the table: SEER 6.1, SCOP 4.0.

Airflow and filters

Four air outlet sides behind the CL5000i P 4C grille (950 x 950 x 55 mm) with 360-degree coverage according to the page, plus automatic vertical louvre switching and memory of the louvre position. According to the page, an air filter and the iClean self-cleaning function are included; the Wind Avoid Me function diverts the airflow away from people according to the page. The page does not provide information on filter efficiency; in TWIN operation, iClean, Wind Avoid Me, ECO, and Gear are not available according to the page.

Operating modes

  • Cooling: 12.1 kW nominal
  • Heating: 13.5 kW nominal, down to minus 15 °C according to the table
  • Turbo for fast cooling or heating and Silent Mode according to the page
  • Follow Me: temperature measurement at the remote control according to the page
  • ECO mode and Gear (50, 75, 100% power) according to the page
  • Compatible with mono and multi systems according to the page; TWIN operation with 7.0 or 8.8 kW, then without iClean, Wind Avoid Me, ECO, and Gear
  • Control and comfort

  • Wireless remote control RG 10 N2 included; wired control with weekly program optional according to the page
  • 24-hour timer according to the page

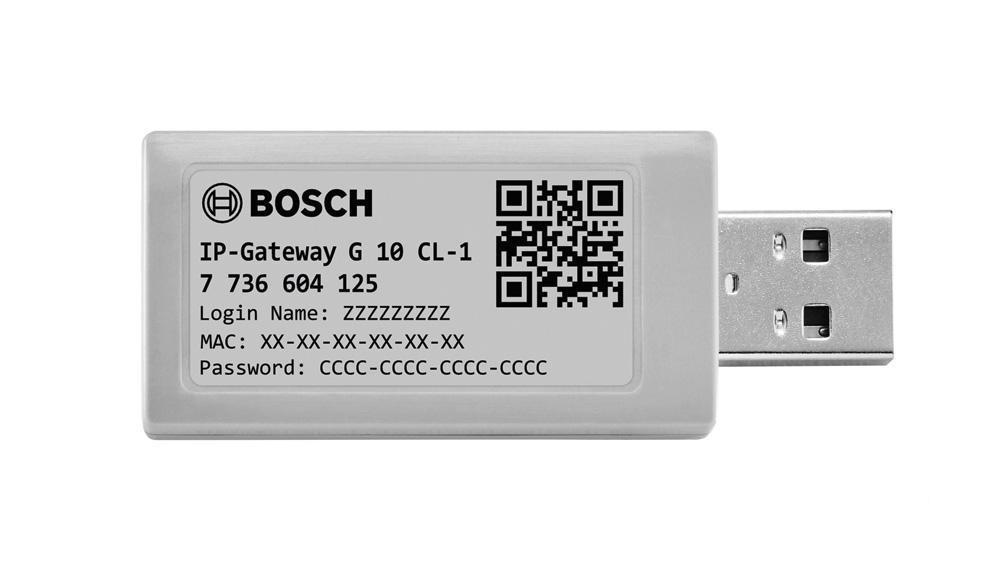

  • Wi-Fi control optional: Wi-Fi module G 10 CL-1 according to the page, available as the "with WiFi" variant on this page
  • Built-in potential-free contact (dry contact) according to the page
  • Operational safety

  • Operating range according to the table: minus 15 to plus 50 °C cooling, minus 15 to plus 24 °C heating
  • Built-in condensate pump, lift height 1 m according to the page
  • Automatic diagnosis of installation errors according to the page
  • Scope of delivery

    Included in the standard scope (Set CL5000iL-Set 125 4CE):

    • 1x Bosch CL5000iL 4C 125 E indoor unit
    • 1x Bosch CL5000i P 4C grille
    • 1x Bosch CL5000L 125 E outdoor unit
    • 1x RG 10 N2 remote control

    The Wi-Fi module G 10 CL-1 is optional according to the page and not included in the standard scope; you add it on this page as the "with WiFi" variant.

    What else you need

  • Refrigerant lines 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch); maximum length according to the table 75 m, height difference 30 m
  • Condensate line and mounting material for installation in the suspended ceiling
  • Wall bracket or floor console for the outdoor unit (71.0 kg)
  • Electrical supply line and circuit breaker
  • Installation and commissioning by a professional company
  • Technical data

    Set CL5000iL-Set 125 4CE
    Indoor unit Bosch CL5000iL 4C 125 E
    Outdoor unit Bosch CL5000L 125 E
    Rated cooling capacity 12.1 kW
    Rated heating capacity 13.5 kW
    Rated power consumption Cooling / Heating (min. to max.) 4,200 (680 to 4,350) W / 3,700 (750 to 4,250) W
    Energy efficiency class Cooling / Heating not stated on the page
    SEER / SCOP according to the table 6.1 / 4.0
    Power supply 220 to 240 V, 50 Hz, single-phase
    Max. power consumption outdoor unit 5,000 W
    Sound pressure level indoor unit (max. / average / min. / Silent) 52.5 / 50 / 47.5 / 41.5 dB(A)
    Sound pressure level outdoor unit 63 dB(A)
    Grille Bosch CL5000i P 4C, 950 x 950 x 55 mm, 6 kg
    Dimensions indoor unit (W x D x H), net weight 830 x 830 x 287 mm, 29.3 kg
    Dimensions outdoor unit (W x D x H), net weight 946 x 410 x 810 mm, 71.0 kg
    Pipe connections Liquid + Gas 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch)
    Max. line length / height difference 75 m / 30 m
    Operating range outdoor temperature Cooling / Heating minus 15 to plus 50 °C / minus 15 to plus 24 °C
    Condensate pump built-in, lift height 1 m according to the page
    Air outlet 4 sides, 360-degree coverage according to the page
    Filter according to the page Air filter, iClean self-cleaning
    Remote control Remote control RG 10 N2 included
    Wi-Fi optional: Wi-Fi module G 10 CL-1, "with WiFi" variant
    Manufacturer according to the page Robert Bosch GmbH

    Frequently asked questions

    What cooling and heating capacity does the Bosch CL5000iL-Set 125 4CE with 12.1 kW have?

    According to the table, 12.1 kW in cooling and 13.5 kW in heating (rated values); the page does not state the power control ranges, but the power consumption of 4,200 (680 to 4,350) W in cooling. SEER 6.1 and SCOP 4.0 according to the table; the page does not state an energy efficiency class. We will check which power class is suitable for your room upon request.

    What are the dimensions of the cassette and grille?

    According to the table, 830 x 830 x 287 mm at 29.3 kg for the cassette and 950 x 950 x 55 mm at 6 kg for the CL5000i P 4C grille. The page does not state what ceiling cutout and installation height are required, upon request. For the CL5000L 125 E outdoor unit, 946 x 410 x 810 mm and 71.0 kg are stated on the page.

    What exactly is included in the scope of delivery?

    The delivery includes exclusively the CL5000iL 4C 125 E indoor unit, the CL5000i P 4C grille, the CL5000L 125 E outdoor unit, and an RG 10 N2 remote control (Set CL5000iL-Set 125 4CE). Refrigerant lines, condensate line, wall bracket or console, and mounting material are not included; a mounting set is not available on this page. The Wi-Fi module G 10 CL-1 is optional and can be selected on this page as the "with WiFi" variant. We will share which material is suitable upon request.

    Does the unit have Wi-Fi and a condensate pump?

    Yes to the condensate pump: it is built-in from the factory according to the page, lift height 1 m. Wi-Fi is available as a variant: Order the Wi-Fi module G 10 CL-1 with "with WiFi" for app control, with "without WiFi" it remains the basic unit.

    How long can the line between the indoor and outdoor unit be?

    The table states 75 m maximum line length and 30 m height difference; pipe connections 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch). We will clarify the permissible line route and the necessary preparation by the professional company for your property upon request.

    Can I use the unit to heat in winter?

    Yes. The heating mode is stated according to the table down to minus 15 °C outdoor temperature; the heating capacity is 13.5 kW, SCOP 4.0. At low outdoor temperatures, the available heating capacity decreases, so the system complements the existing heating and does not replace it.

    How loud is the unit?

    Indoor unit according to the table 52.5 / 50 / 47.5 / 41.5 dB(A) (max. / average / min. / Silent); for the outdoor unit, 63 dB(A) is stated on the page.

    Can I install the air conditioner myself?

    The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
