The Daikin Nepura heats down to an outdoor temperature of minus 30 °C and is in energy efficiency class A++ in both cooling and heating modes on the scale from A+++ to D. It delivers 2.5 kW of cooling and 3.2 kW of heating capacity, with an SEER of 8.55 and an SCOP of 4.95. The indoor unit operates at 21.0 dB(A) on the quiet setting. The Wi-Fi module is built-in, and the system can be operated via app and voice control. The performance class is suitable as a guide for rooms of approximately 20 to 26 m²^*.

Performance and range of application

The set delivers 2.5 kW of cooling capacity in the range of 1.0 to 4.1 kW and 3.2 kW of heating capacity in the range of 1.0 to 6.2 kW. The heating capacity is therefore significantly higher than the cooling capacity. Cooling is designed for outdoor temperatures from minus 10 to plus 46 °C, and heating down to minus 30 °C and up to plus 18 °C. The pipe connections are 1/4" on the liquid side and 3/8" on the gas side.

The stated area of approximately 20 to 26 m²^* is a guideline for standard room height and normal insulation standards, not a binding design. Which performance class is right for your property depends on the room height, insulation standards, window areas, shading, and the number of people and devices. An undersized system will run continuously at full load, while an oversized system will cycle and consume electricity unnecessarily. We can check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different performance class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

• Heating down to minus 30 °C outdoor temperature.
• Energy efficiency class A++ in cooling and heating on the scale from A+++ to D, with an SEER of 8.55 and an SCOP of 4.95.
• 3.2 kW heating capacity and 2.5 kW cooling capacity, with heating up to 6.2 kW.
• 21.0 dB(A) on the quiet setting, 43.0 dB(A) on the highest setting.
• Wi-Fi built into the indoor unit and voice control via Amazon Alexa or Google Assistant.
• 3D airflow: vertical and horizontal swinging, automatically controlled.
• Indoor unit with a height of 286 mm and a depth of 225 mm, 9.0 kg.

Detailed functions

Heating mode

The manufacturer specifies the heating capacity down to minus 30 °C outdoor temperature. The nominal heating capacity of 3.2 kW is higher than the cooling capacity of 2.5 kW, with up to 6.2 kW possible in the upper range. The SCOP of 4.95 applies to the entire heating season.

Control

• Wi-Fi built into the indoor unit, operation via the manufacturer's app
• Voice control via Amazon Alexa or Google Assistant
• Remote control included

Airflow

• 3D airflow: vertical and horizontal swinging are automatically combined
• Three settings for each operating mode, with the sound pressure levels stated in the technical data

Detailed noise levels

The indoor unit operates at 21.0, 26.0, and 43.0 dB(A) depending on the setting, in both cooling and heating modes. For the outdoor unit, the manufacturer specifies 48 dB(A) in cooling and 49 dB(A) in heating mode.

Scope of delivery

• 1x Daikin FTXTP25N indoor unit, Wi-Fi built-in

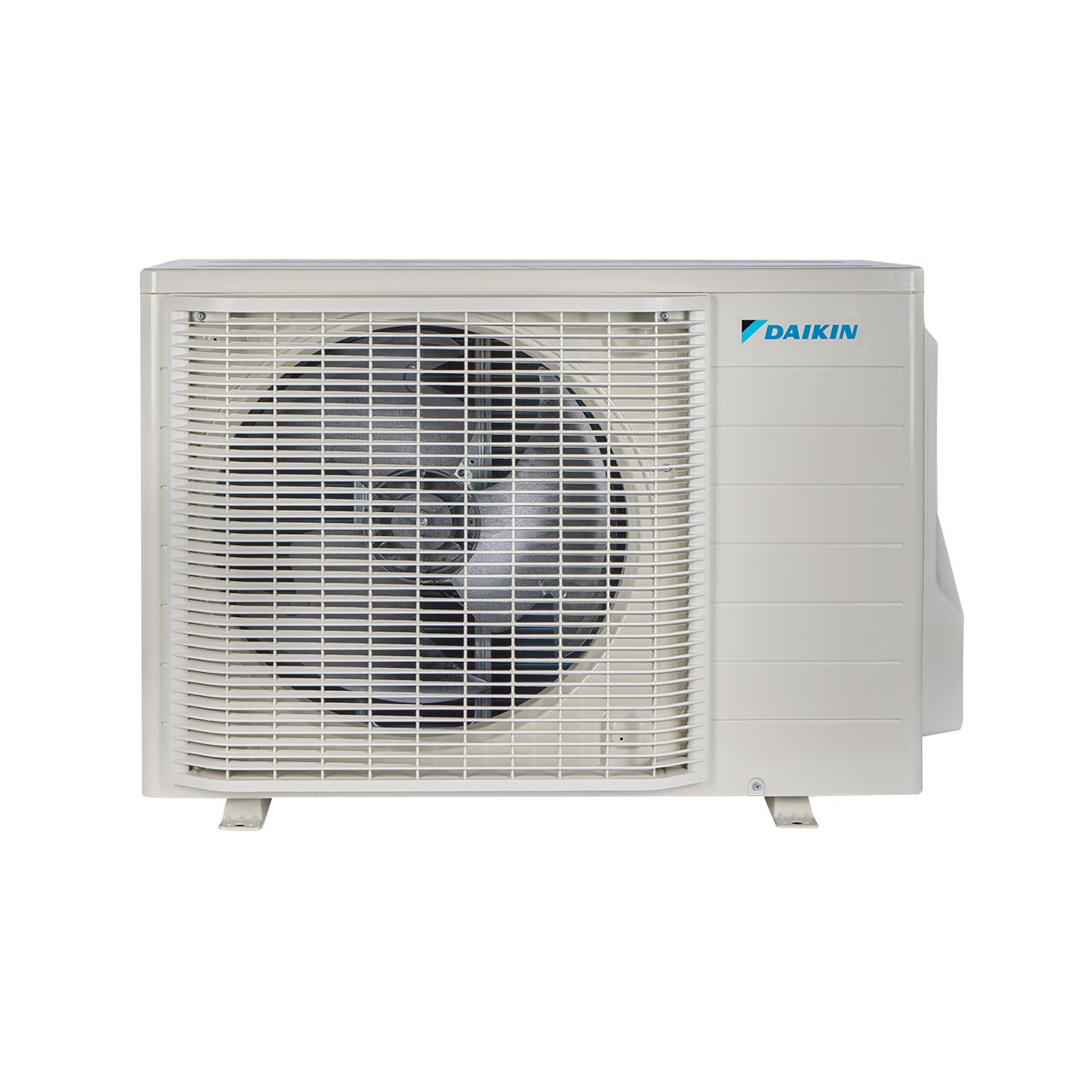

• 1x Daikin RXTP25A outdoor unit
• 1x remote control

What you need in addition

• 1/4" and 3/8" refrigerant lines and mounting material
• Wall bracket or floor console for the outdoor unit
• Condensate pump, depending on the installation situation
• Electrical supply line and circuit breaker
• Installation and commissioning by a specialist company

Technical data

Series	Nepura
Indoor unit	Daikin FTXTP25N
Cooling capacity (Min. / Nom. / Max.)	1.00 / 2.50 / 4.10 kW
Heating capacity (Min. / Nom. / Max.)	1.00 / 3.20 / 6.20 kW
Energy efficiency class Cooling / Heating	A++ / A++, scale A+++ to D
SEER / SCOP	8.55 / 4.95
Sound pressure level indoor unit Cooling	21.0 / 26.0 / 43.0 dB(A)
Sound pressure level indoor unit Heating	21.0 / 26.0 / 43.0 dB(A)
Dimensions indoor unit (WxHxD)	770 x 286 x 225 mm, 9.0 kg
Control	Wi-Fi built-in, app, voice control, remote control
Outdoor unit	Daikin RXTP25A
Sound pressure level outdoor unit	48 dB(A) cooling, 49 dB(A) heating
Dimensions outdoor unit (WxHxD)	930 x 605 x 376 mm, 42.0 kg
Cooling operating range	-10 to +46 °C
Heating operating range	-31 to +18 °C
Pipe connections Liquid + Gas	6.35 mm (1/4") + 9.5 mm (3/8")
Power supply	220 to 240 V, 50 Hz, 1 phase

Frequently asked questions

What energy efficiency class does the system have?

A++ in cooling and heating on the scale from A+++ to D. The SEER is 8.55, the SCOP is 4.95.

Down to what outdoor temperature does the system heat?

According to the manufacturer, heating is possible down to minus 30 °C outdoor temperature. The heating capacity is 3.2 kW in the range of 1.0 to 6.2 kW, with an SCOP of 4.95. The heating capacity is therefore significantly higher than the cooling capacity of 2.5 kW. We can check upon request whether the system is sufficient as the sole heating source for your room.

How loud is the device?

The indoor unit operates at 21.0, 26.0, and 43.0 dB(A) depending on the setting, in both cooling and heating modes. For the outdoor unit, the manufacturer specifies 48 dB(A) in cooling and 49 dB(A) in heating mode.

What do SEER and SCOP mean?

The SEER of 8.55 is calculated over an entire cooling season, with part-load operation, and is the value used to determine the energy efficiency class in cooling mode. The SCOP of 4.95 is the counterpart for heating mode, calculated over an entire heating season. For calculating electricity consumption, these two figures are more meaningful than a value at a single operating point.

Can I control the system via an app?

Yes. The Wi-Fi module is built into the indoor unit, so no retrofit is required. Operation is via the manufacturer's app, and additionally by voice via Amazon Alexa or Google Assistant. A remote control is included in the scope of delivery.

How do the louvers move?

The louvers move vertically and horizontally, automatically controlled. This distributes the air across the width and depth of the room.

How large is the indoor unit?

The indoor unit is 770 mm wide, 286 mm high, and 225 mm deep, and weighs 9.0 kg. This height allows for installation above a door in many cases. The specialist company will assess on site whether the intended location is suitable.

Is mounting material included in the scope of delivery?

No. The delivery includes the indoor unit, outdoor unit, and remote control. 1/4" and 3/8" refrigerant lines, a bracket, and other mounting material are additional and will be selected by the specialist company to suit the installation situation.

What pipe connections does the system have?

1/4", i.e., 6.35 mm, on the liquid side and 3/8", i.e., 9.5 mm, on the gas side. The manufacturer states the maximum pipe length and height difference in the installation instructions; we will provide you with the values upon request.
