TCL XA82I Split Air Conditioner 3.4 kW optional with installation kit

TCL XA82I Split Air Conditioner 3.4 kW optional with installation kit

TCL Elite XA82I split air conditioner with 3.4 kW cooling and 3.43 kW heating capacity, suitable as a guide for rooms of approximately 26 to 34 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. Indoor unit in a dark finish, heating operation down to minus 20 °C.

Regular price €599,00
Regular price Sale price €599,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
Mounting kit

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The TCL Elite XA82I is a split air conditioner with a cooling capacity of 3.40 kW and a heating capacity of 3.43 kW. SEER 6.1 and SCOP 4.0, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, the outdoor unit heats down to an outdoor temperature of minus 20 °C. The indoor unit is designed in a dark version. As a guide, the power class is suitable for rooms of approximately 26 to 34 m²*.

Performance and range of use

The cooling capacity is 3.40 kW and is adjustable from 1.00 to 3.77 kW, the heating capacity 3.43 kW with a range of 1.00 to 3.81 kW. According to the page, the outdoor unit operates in cooling mode from minus 15 to plus 53 °C and in heating mode from minus 20 to plus 30 °C outdoor temperature. Power supply 220 to 240 V, 50 Hz, single-phase.

The stated area of approximately 26 to 34 m²* is a guideline for standard room height and normal insulation standard, not a binding design. Which power class is right for your property depends on room height, insulation standard, window areas, shading, as well as the number of people and devices. We check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standard and average solar radiation. Deviating conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.

The most important advantages at a glance

  • 3.40 kW cooling and 3.43 kW heating capacity, adjustable from 1.00 to 3.77 kW and 1.00 to 3.81 kW respectively.
  • Energy efficiency class A++ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 6.1 and SCOP 4.0.
  • Heating operation down to minus 20 °C outdoor temperature according to the page, drip tray heater on the outdoor unit.
  • Indoor unit in a dark version, according to the description on the page in black and graphite.
  • WLAN control and voice control according to the page (Wi-Fi control there), plus I Feel on the remote control.
  • Sound pressure level of the indoor unit from 22 dB(A) in Mute mode according to the page.
  • Installation set in lengths of 3 to 12 m can be ordered directly.

Functions in detail

Inverter and heat pump operation

The DC inverter adjusts the power to the demand: in cooling mode between 1.00 and 3.77 kW, in heating mode between 1.00 and 3.81 kW. This keeps the temperature, without constantly switching on and off. In heating mode, it operates as an air-to-air heat pump, according to the page down to minus 20 °C outdoor temperature. According to the page, the outdoor unit has a drip tray heater, which is intended to prevent the drip tray from freezing.

Air quality and purification

  • Automatic cleaning of the indoor unit according to the page
  • Filter cleaning alarm
  • Intelligent dehumidification according to the page
  • Gold Fin on the heat exchanger according to the page

Operating modes

  • Cooling: 3.40 kW, adjustable from 1.00 to 3.77 kW
  • Heating: 3.43 kW, adjustable from 1.00 to 3.81 kW
  • Auto mode, Turbo mode, Eco mode and Night mode according to the page
  • Mute mode: 22 dB(A) at the indoor unit according to the page
  • Five fan speeds

Control and comfort

  • WLAN control according to the page (Wi-Fi control there); whether the WLAN module is built-in from the factory and which app belongs to it, the page does not state, information available on request
  • Voice control according to the page
  • I Feel: the temperature sensor in the remote control measures the temperature where you are
  • Anti-Cold against cold drafts when heating up, 3D airflow
  • Timer and child lock according to the page

Operating safety

  • Self-diagnosis and automatic restart
  • Two-sided condensate drainage at the indoor unit
  • Drip tray heater on the outdoor unit according to the page
  • Operating range of the indoor unit according to the page: Cooling / Heating 17 to 32 °C / 0 to 30 °C room temperature

Scope of delivery

Included in the standard scope:

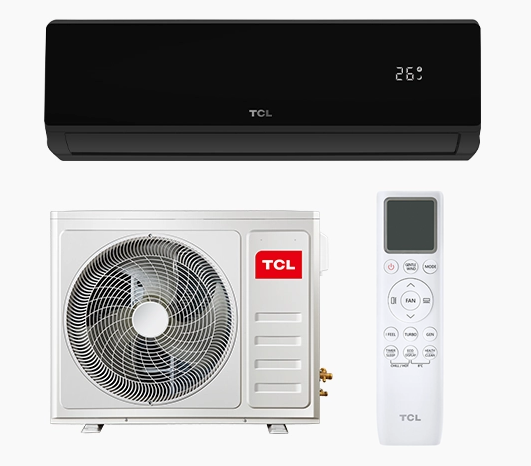

  • 1x indoor unit TCL Elite XA82I (TAC-12CHSD/XA82I)

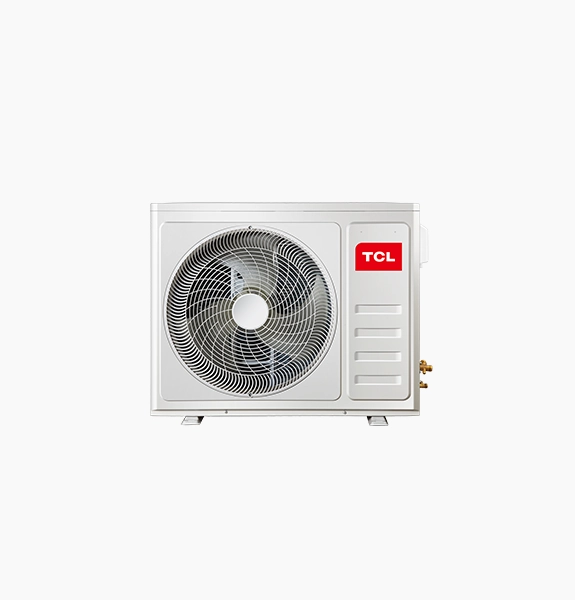

  • 1x outdoor unit
  • 1x remote control

Optional: Installation set 3 to 12 meters

You can order the appropriate installation set directly. It contains:

  • Insulated copper line
  • Condensate hose
  • Electrical and control cable
  • Wall bracket for the outdoor unit
  • Wall sleeve

The pipe connections of this unit are 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). Which set fits your installation situation, we will tell you upon request.

What you need additionally

  • Cables and installation material, if you do not choose an installation set
  • Condensate pump, depending on the installation situation
  • Electrical supply line and circuit breaker
  • Installation and commissioning by a certified company

Technical data

Model TCL Elite XA82I, TAC-12CHSD/XA82I
Cooling capacity (min / nom / max) 1.00 / 3.40 / 3.77 kW
Heating capacity (min / nom / max) 1.00 / 3.43 / 3.81 kW
Energy efficiency class Cooling / Heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP 6.1 / 4.0
Sound pressure level indoor unit Cooling (Turbo / H / M / L / Mute) 40 / 37 / 33 / 25 / 22 dB(A)
Sound pressure level outdoor unit 50 dB(A)
Dimensions indoor unit (WxHxD), weight 777 x 250 x 201 mm, 8.5 kg
Dimensions outdoor unit (WxHxD), weight 777 x 498 x 290 mm, 22.5 kg
Pipe connections Liquid + Gas / Drain 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch) / 21.5 mm
Operating range indoor unit Cooling / Heating 17 to 32 °C / 0 to 30 °C
Operating range outdoor unit Cooling / Heating minus 15 to plus 53 °C / minus 20 to plus 30 °C
Power supply 220 to 240 V, 50 Hz, single-phase
WLAN / WiFi module WLAN control according to the page; module from the factory and app upon request
Color indoor unit dark, according to the description Black and Graphite
Manufacturer / EU representative according to the page TCL Electronics Europe, Clichy (France)

Frequently asked questions

What cooling and heating capacity does the TCL XA82I with 3.4 kW have?

The cooling capacity is 3.40 kW, the heating capacity 3.43 kW; adjustable via the inverter from 1.00 to 3.77 kW in cooling and 1.00 to 3.81 kW in heating. SEER 6.1, SCOP 4.0, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. Which power class is right for your room, we check upon request.

What color is the indoor unit?

According to the page, the indoor unit is designed in a dark version; the description calls Black and Graphite for the Elite series. We confirm the exact color designation upon request.

Is the installation set included in the price?

The installation set is an optional addition and is added via the variant selection. Without a selected installation set, the delivery exclusively includes the indoor unit, outdoor unit and remote control; cables and installation material are then not included. The set is available in lengths of 3 to 12 meters.

Does the air conditioner have WLAN?

The page mentions WLAN control (Wi-Fi control) and voice control. Whether the WLAN module is built-in from the factory and which app belongs to it, is not on the page; we confirm it upon request. A remote control is included in the scope of delivery.

How long can the cable between the indoor and outdoor unit be?

The page does not state the maximum cable length and height difference. The pipe connections are stated with 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). The installation set is available in lengths of 3 to 12 meters. Which length is permissible for your installation situation, we check upon request.

Can I heat with the unit in winter?

Yes. According to the page, the outdoor unit heats at minus 20 to plus 30 °C outdoor temperature, the heating capacity is 3.43 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.0. The available power decreases with falling outdoor temperature, which is why the unit is suitable as a supplement to the existing heating system.

How loud is the unit?

For the indoor unit in cooling mode, the page states 40 / 37 / 33 / 25 / 22 dB(A) in the Turbo, H, M, L and Mute levels, so 22 dB(A) in Mute mode. For the outdoor unit, 50 dB(A) is stated on the page.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified company. Self-installation is not intended.

Manufacturer Information

Manufacturer/EU Representative: TCL Electronics Europe
Postal address: 49 Rue de Neuilly, 92110 Clichy, France (EU Headquarters)
Email address: privacy.na@tcl.com (general; or kt_arya@tcl.com for heat pumps)

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
