SCOPE OF DELIVERY:

Set 1 with console:

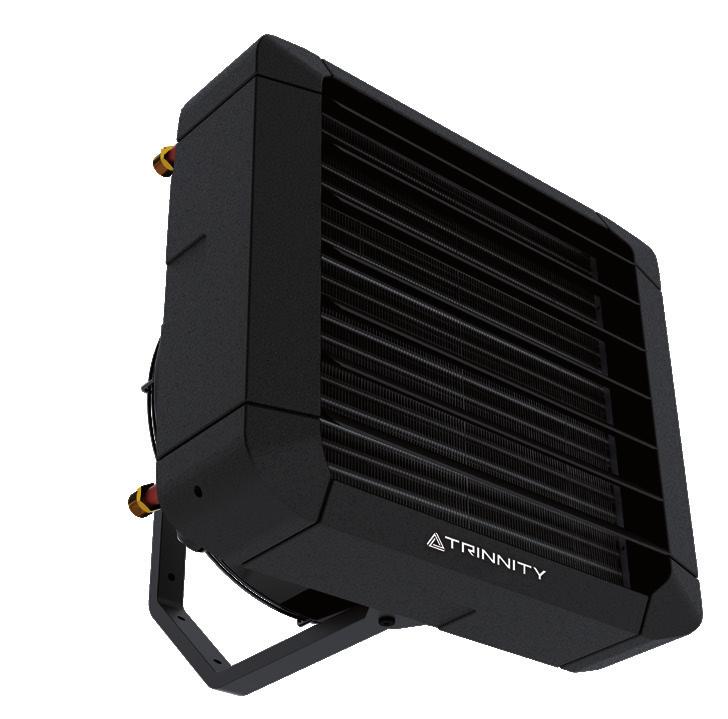

Air heater (HD 25 24.5 kW, HD 40 37.8 kW, HD 50 48.5 kW or HD 70 70 kW) with a rotating bracket
Set 2 with 3-stage. Thermoregulator
Air heater (HD 25 24.5 kW, HD 40 37.8 kW, HD 50 48.5 kW or HD 70 70 kW) with a rotating console and a 3-stage speed controller with thermostat
Set 3 with programmed thermostat
Air heaters (HD 25 24.5 kW, HD 40 37.8 kW, HD 50 48.5 kW or HD 70 70 kW) with a rotating console and a programmable CHMI control
Set 4 - Complete set
Air heater (HD 25 24.5 kW, HD 40 37.8 kW, HD 50 48.5 kW or HD 70 70 kW) with a rotating console, a 3-stage speed controller with thermostat, 2 hoses HC 3/4", a valve 3/4" servo motor

DESCRIPTION

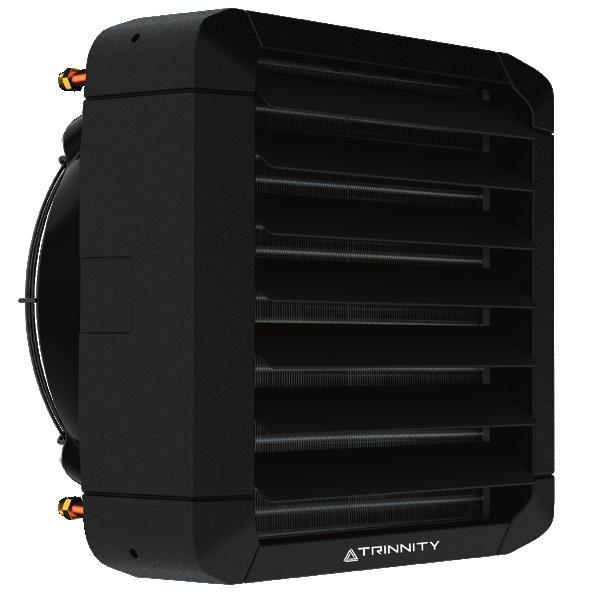

TRINNITY HD water heaters are components of a decentralized, modular heating system. They are a dynamic heat source supplied with hot water from a boiler.

The water heater is designed for heating medium- and large-capacity spaces, such as industrial halls, workshops, warehouses, pavilions, sports halls, and churches. The unit can be mounted on building partition walls in any position—horizontally, vertically, and at various angles.

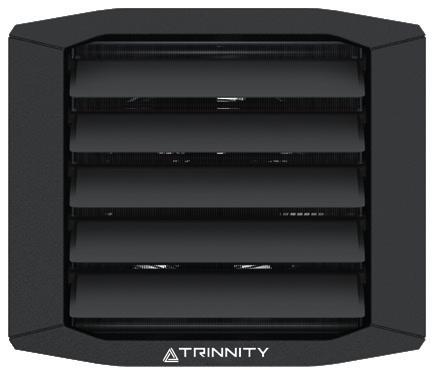

TRINNITY HD heaters can be mounted on vertical and horizontal partition walls in any position. Furthermore, the airflow can be directed in any direction thanks to the movable air louvers. The recommended clearances from the partition walls must be observed during installation.

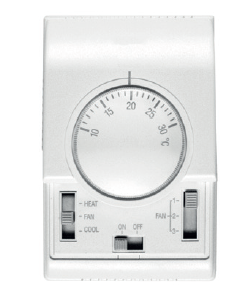

The CTS is a 3-stage thermostatic control that allows you to set a constant temperature for the heated room and change the heating mode. It is also possible to change the device's operating mode: heating, ventilation, or thermostat mode: when the room temperature reaches the value set on the thermostat, the valve closes and the fan turns off; and continuous mode: when the room temperature reaches the value set on the thermostat, the valve closes and the fan continues to operate.

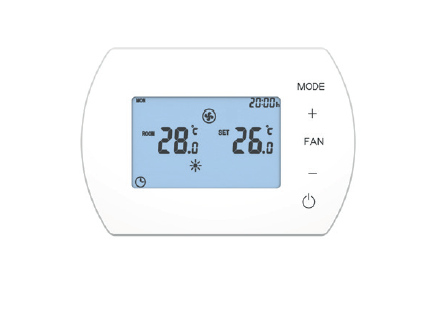

CHMI is a programmable controller with a built-in thermostat. The weekly programming function allows for the setting of six time zones that define the system's operating characteristics. It features a frost protection function when the controller is turned off. It is possible to connect the controller to the BMS system. The temperature can be read via the built-in temperature sensor or the wall-mounted CNTC sensor. It is possible to set heating/ventilation modes, as well as continuous or thermostatic operation. The entire device is housed in an aesthetic plastic casing.

ADVANTAGES

-EPP housing
-3-speed AC fans
-Modern design
-Resilience
-High performance
-Wide performance range
-Additional equipment
-Energy-saving fan
-Quickly achieves thermal comfort
-Quiet and reliable operation
-Easy assembly
