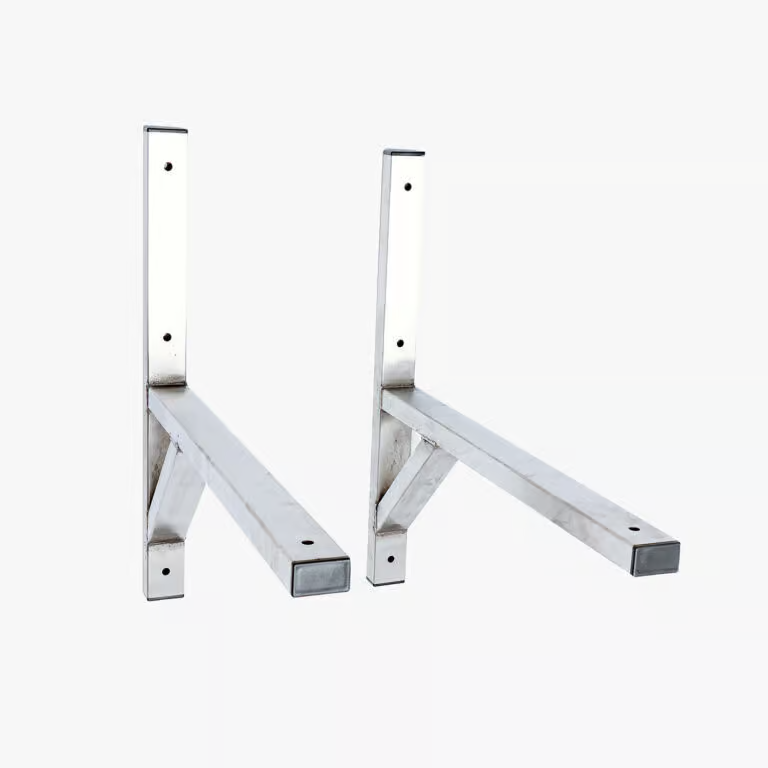

The INOX bracket 60035P is a set of two welded stainless steel wall brackets for the outdoor unit of an air conditioner or heat pump. Both brackets are mounted on the wall independently of each other. This allows an outdoor unit of any width to be placed on them. The wall arm length is 600 mm, the load capacity 147.8 kg per bracket and 295.6 kg per set.

Design and Features

• Material: Stainless steel, chrome-nickel
• Design: Welded construction with support
• Profile: Rectangular tube 30 x 50 mm, wall thickness 2 mm
• Load capacity: 147.8 kg per bracket, 295.6 kg per set
• Any unit width: the two brackets are positioned separately

Scope of Delivery

• 2x stainless steel wall bracket 60035P, wall arm length 600 mm

What You Need in Addition

• Fastening material suitable for the wall construction
• Load-bearing wall, assessed by a specialist company
• Installation and commissioning by a specialist company

Technical Data

Model	60035P
Material	Stainless steel, chrome-nickel
Wall arm length	600 mm
Support arm height	600 mm
Profile	Rectangular tube 30 x 50 mm
Wall thickness	2 mm
Design	Welded construction with support
Load capacity per bracket	147.8 kg
Load capacity per set	295.6 kg
Weight per set	approximately 7.1 kg
Scope of delivery	Set with 2 brackets

Frequently Asked Questions

How much weight can the bracket support?

147.8 kg per bracket, so 295.6 kg per set of two brackets. You can find the weight of your outdoor unit in its technical data.

Is the bracket suitable for my outdoor unit?

The two brackets are mounted on the wall independently of each other, so the distance depends on your unit. Therefore, the unit width is not fixed. The building depth must be checked, as the wall arm is 600 mm long.

How far does the unit stand from the wall?

The wall arm length is 600 mm. Within this length, the specialist company determines the position of the unit.

How many brackets are included?

Two. The outdoor unit stands on both brackets. The set weighs approximately 7.1 kg.

Is the bracket suitable for outdoor use?

The bracket is made of stainless steel with a chrome-nickel content. An additional anti-corrosion coating is not intended for this material.

Is fastening material included in the scope of delivery?

No. The screws and wall plugs depend on the wall construction and are selected appropriately by the specialist company.

Can I install the bracket myself?

The installation and assessment of the wall are carried out by a specialist company. It also places the unit and commissions the system.
