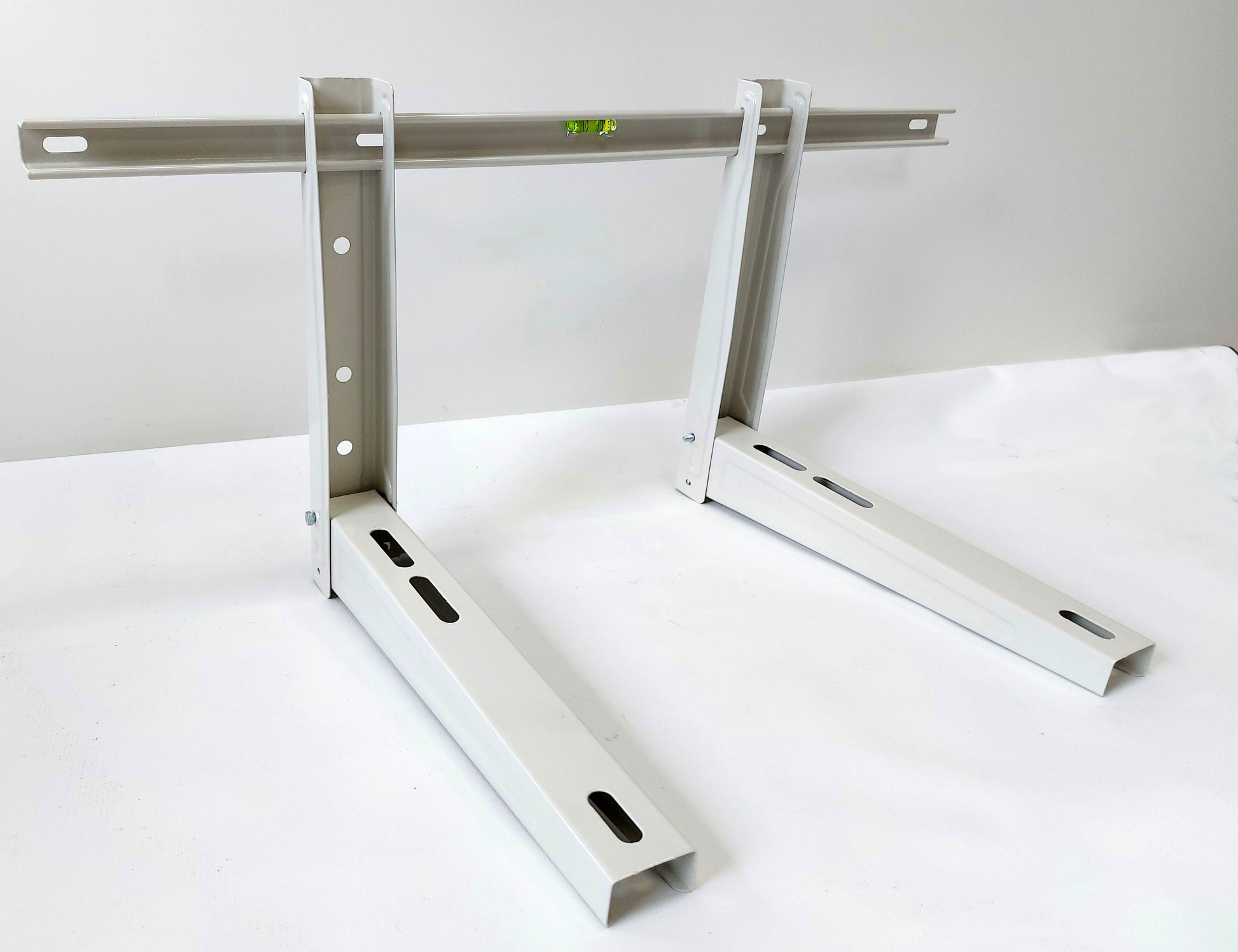

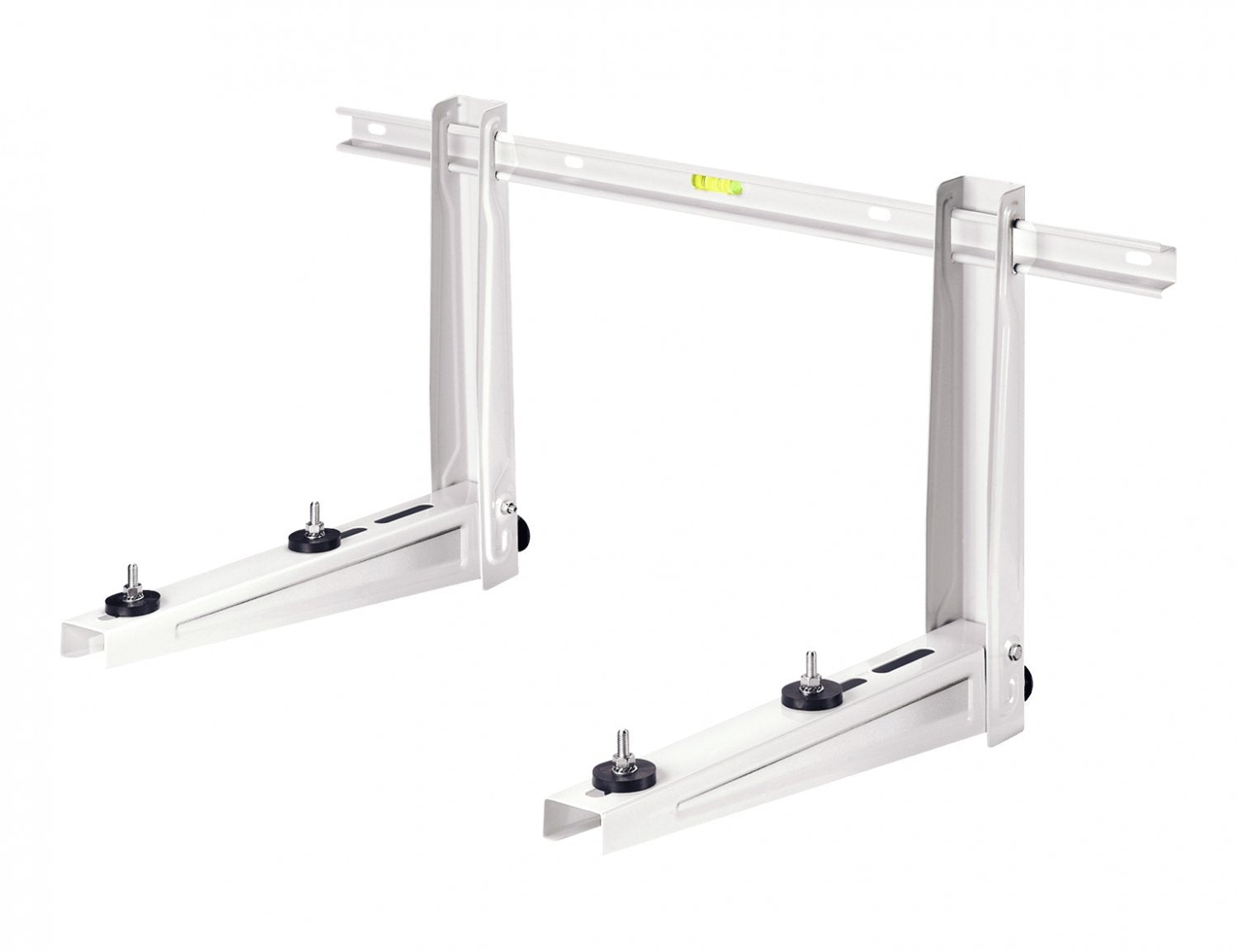

The Rodigas MS 230 is a wall bracket for an air conditioning outdoor unit, with a 420 mm projection and a load capacity of 140 kg. The bracket consists of a mounting beam with a spirit level and two arms that slide under the unit. It is cataphoresis-coated and therefore designed for outdoor installation. The bracket is TÜV certified.

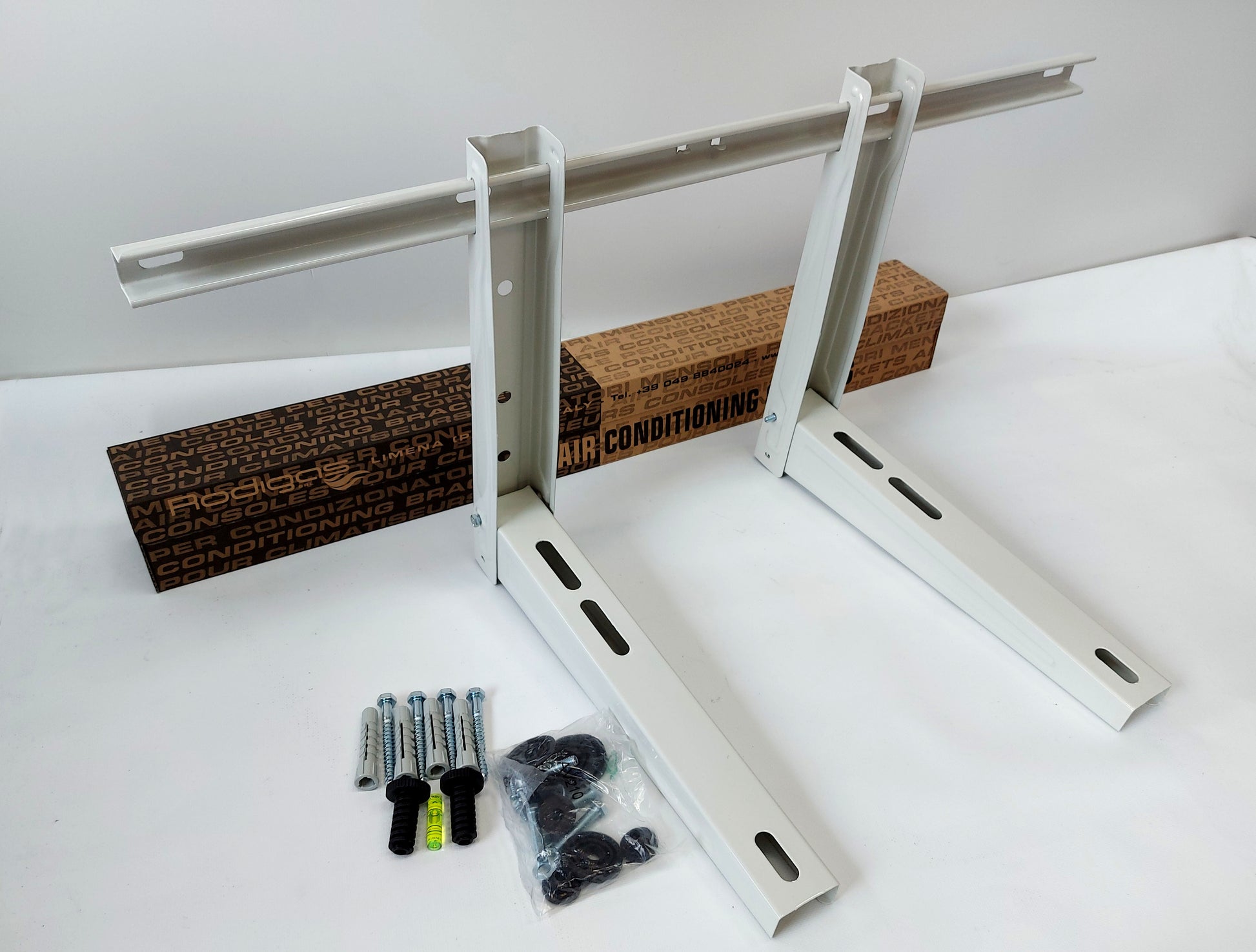

Scope of delivery

• 1x mounting beam with spirit level
• 2x arms for supporting the outdoor unit

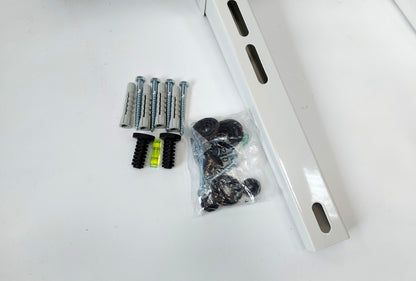

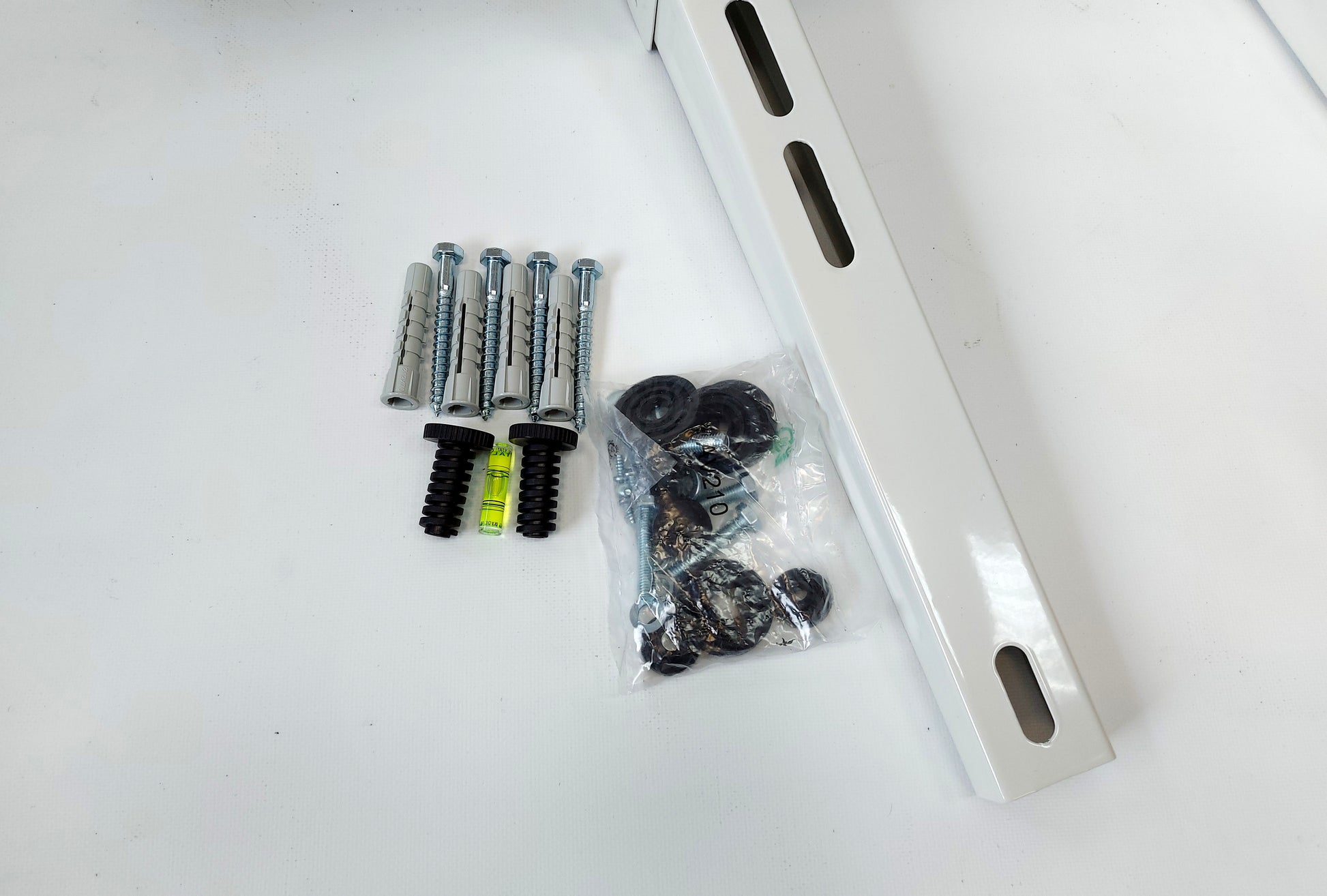

• Installation kit with shock-absorbing and leveling rubber pads

Additional items required

• Fastening material suitable for the wall substrate
• Installation by a specialist company

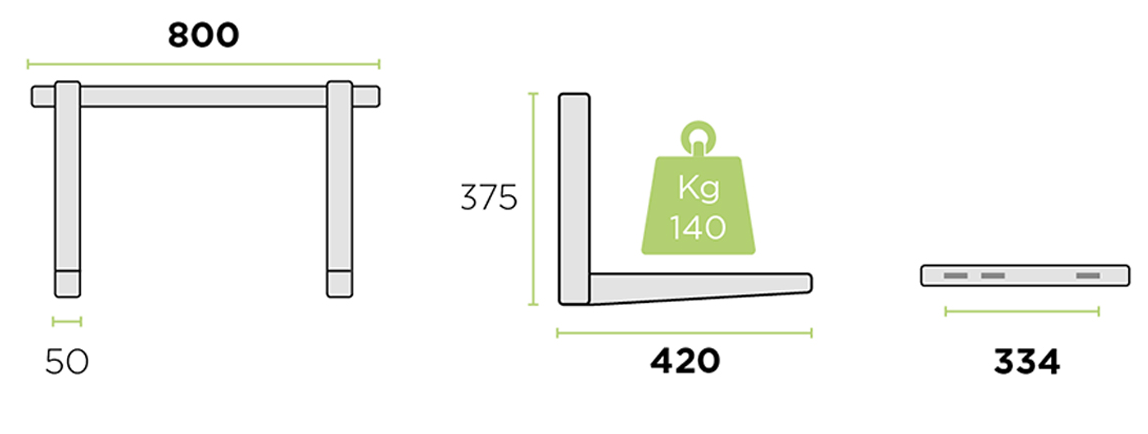

Technical data

Frequently asked questions

How much weight can the bracket support?

The manufacturer specifies a load capacity of 140 kg. You can find the weight of your outdoor unit in its technical specifications.

Will the bracket fit under my outdoor unit?

The arms have a projection of 420 mm. Compare this value with the depth of your outdoor unit, which is stated in its technical specifications.

What is included in the scope of delivery?

The delivery includes a mounting beam with a spirit level, two arms and an installation kit with rubber pads. Fastening material for the wall is not included, as it depends on the substrate.

Is the bracket suitable for outdoor installation?

Yes. The bracket is cataphoresis-coated in RAL 9002 and designed for outdoor installation.

Can I install the bracket myself?

The bracket and outdoor unit must be installed by a specialist company, which will also assess the substrate and fastening material.
