Wall bracket for Rodigas MS 257 air conditioners, 550 mm, 140 kg
Wall bracket for Rodigas MS 257 air conditioners, 550 mm, 140 kg
incl. VAT + shipping costs
Crowd
Description
Description

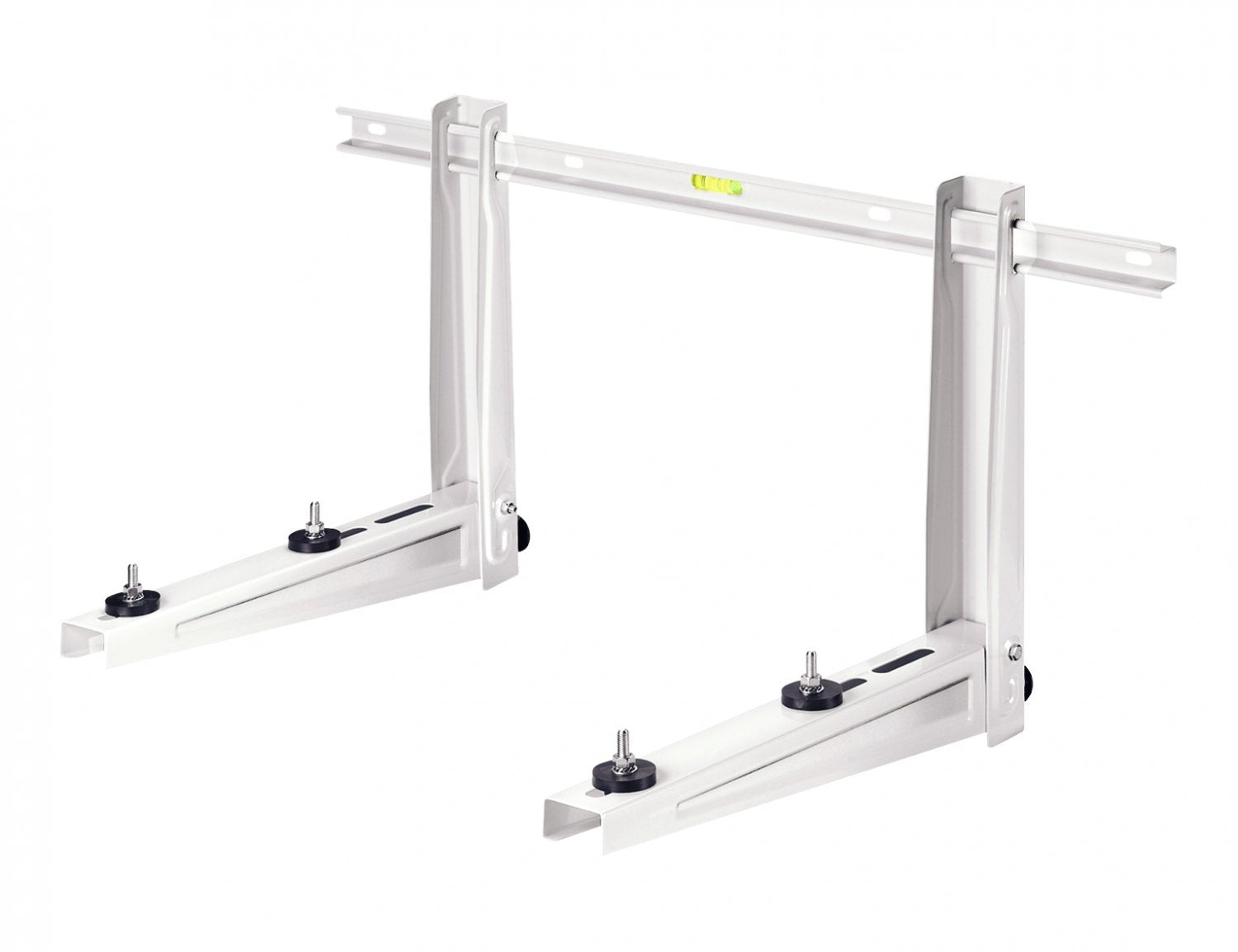

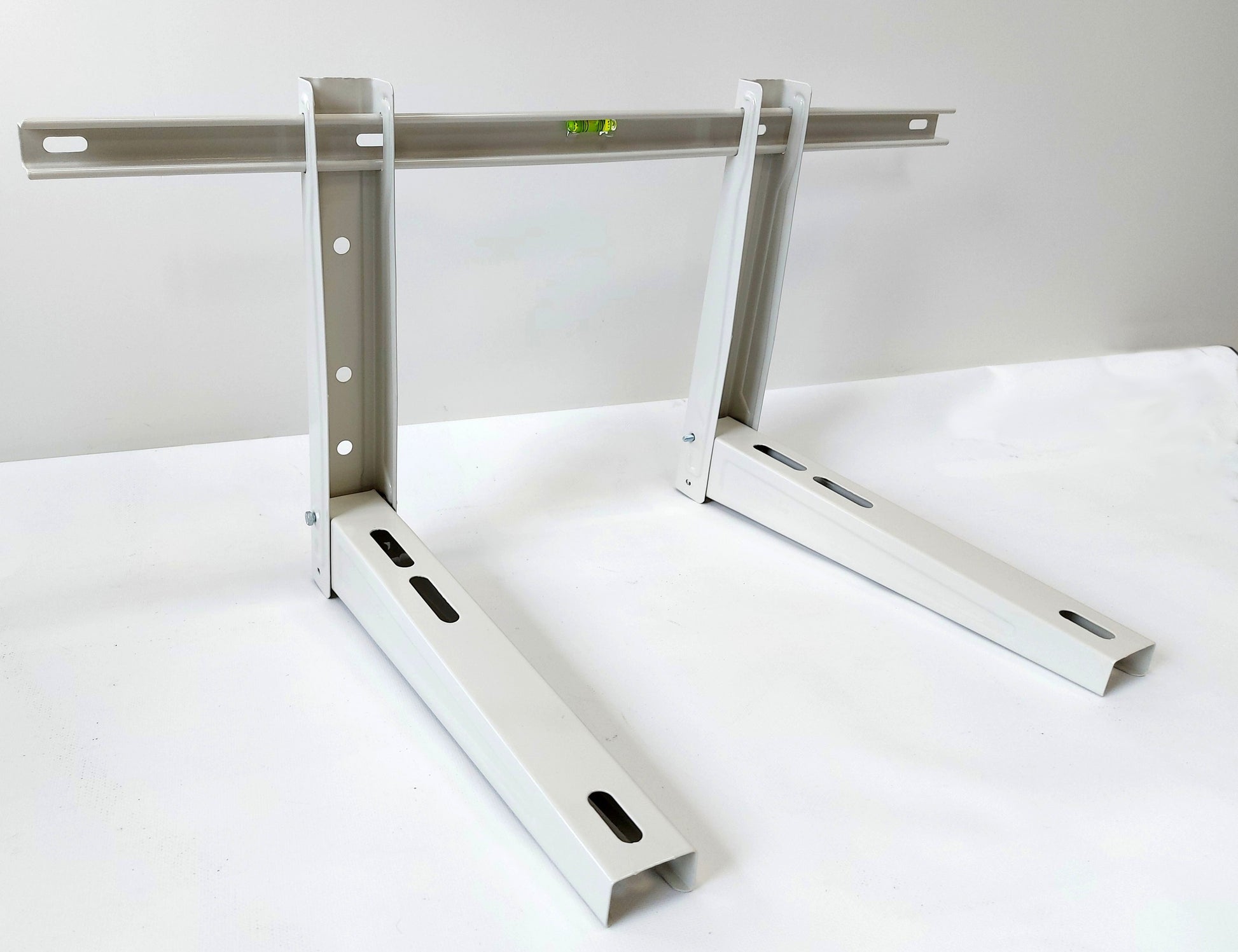

The Rodigas MS 257 is a wall bracket for an air conditioning outdoor unit, with a 550 mm projection and a load capacity of 140 kg. The bracket consists of a mounting beam with a spirit level and two arms that slide under the unit. It is cataphoresis-coated and therefore designed for outdoor installation. The bracket is TÜV certified.

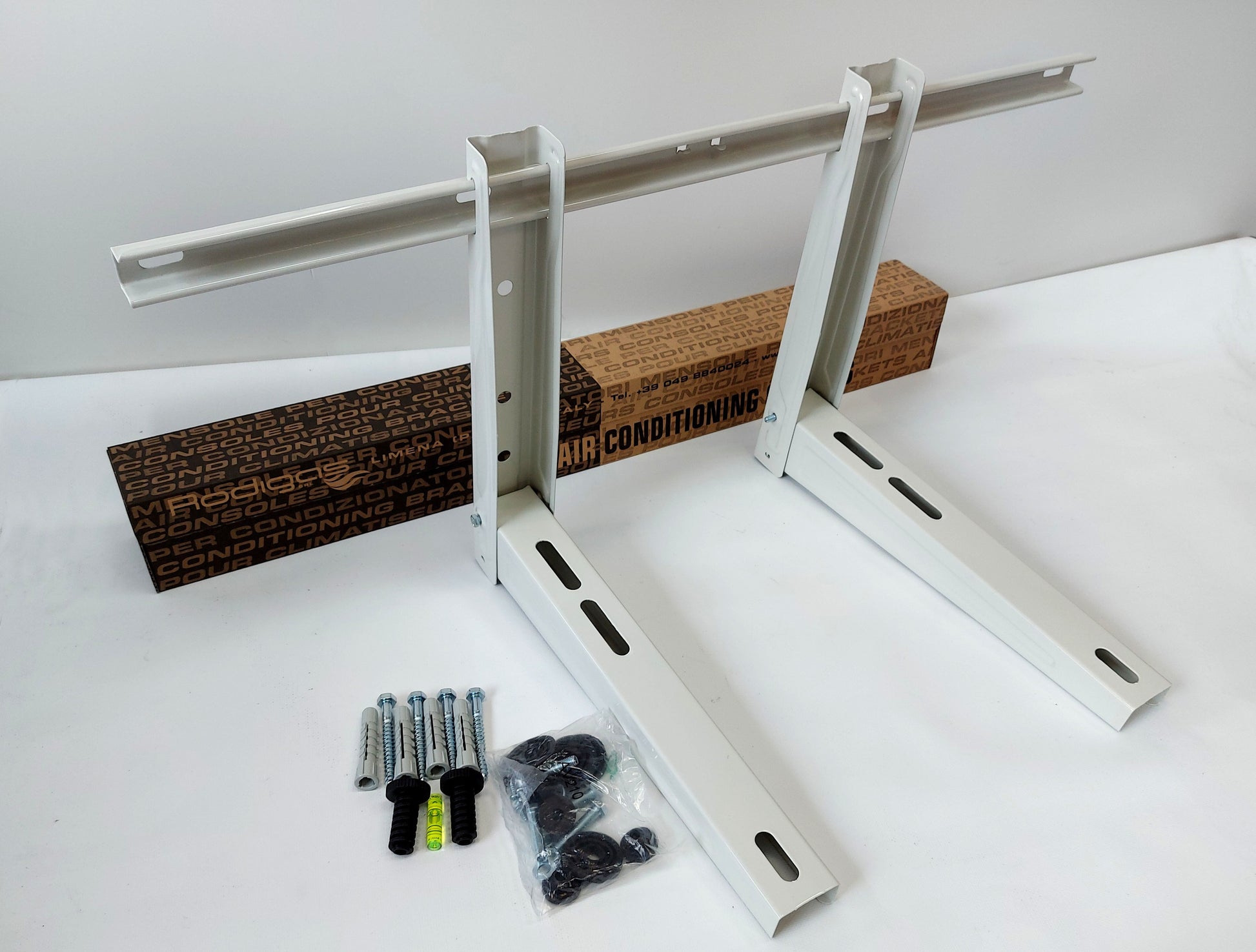

Scope of delivery
- 1x mounting beam with spirit level
- 2x arms for supporting the outdoor unit

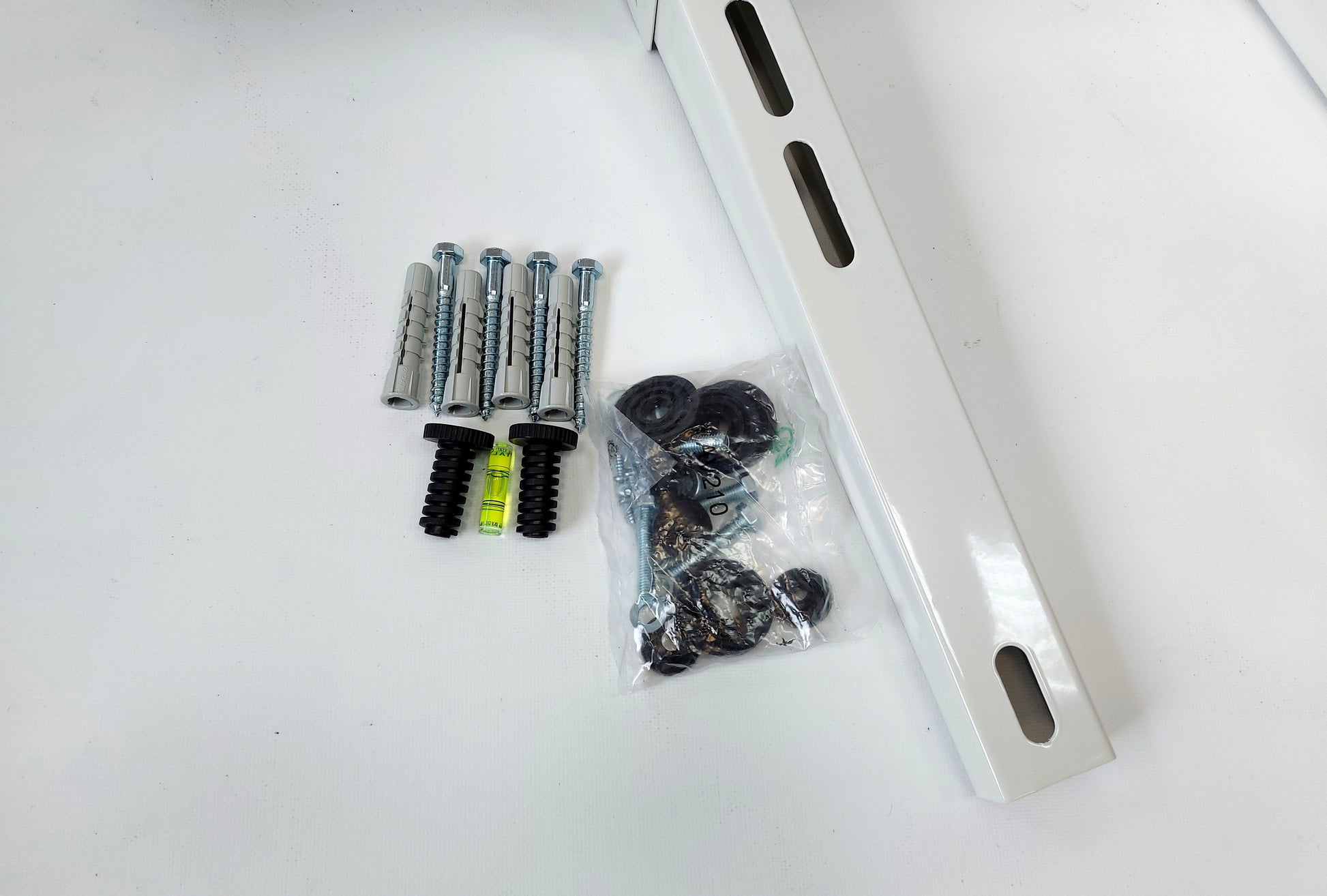

- Installation kit with shock-absorbing and leveling rubber pads
Additional items required
- Fastening material suitable for the wall substrate
- Installation by a specialist company

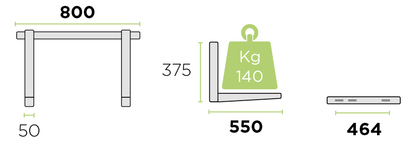

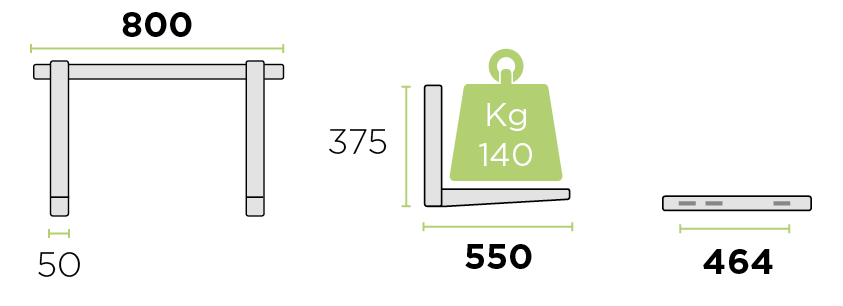

Technical data
| Model | Rodigas MS 257 |
| Horizontal projection | 550 mm |
| Vertical height | 375 mm |
| Wall mounting | 800 mm |
| Load capacity | 140 kg |
| Material | Metal, cataphoresis coating |
| Color | RAL 9002 |
| Certificate | TÜV |
Frequently asked questions
How much weight can the bracket support?
The manufacturer specifies a load capacity of 140 kg. You can find the weight of your outdoor unit in its technical specifications.
Will the bracket fit under my outdoor unit?
The arms have a projection of 550 mm. Compare this value with the depth of your outdoor unit, which is stated in its technical specifications.
What is included in the delivery?
The delivery includes a mounting beam with a spirit level, two arms and an installation kit with rubber pads. Fastening material for the wall is not included, as it depends on the substrate.
Is the bracket suitable for outdoor installation?
Yes. The bracket is cataphoresis-coated in RAL 9002 and designed for outdoor installation.
Can I install the bracket myself?
The bracket and outdoor unit must be installed by a specialist company, which will also assess the substrate and fastening material.
Important NOTE
Important NOTE
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
F-Gas Regulation Download Declaration
