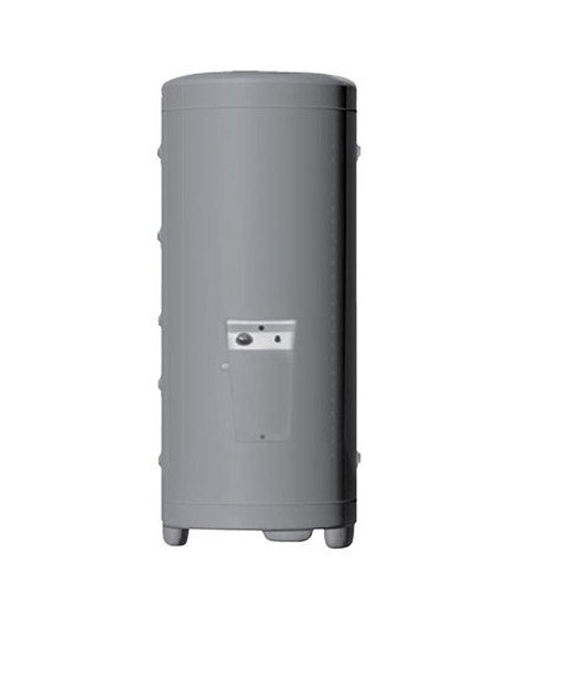

Hot water tank LG THERMA V OSHW-200F 200 L
General specifications:
• Water volume: 200 L
• Diameter: 640 mm
• Height: 1350 mm
• Empty weight: 61 kg
• Wall material: stainless steel F18
• Color: gray
Heating element specifications:
• Electric heater: 2400 W
• Power supply: 1 phase / 230 V / 50- 60 Hz
• Adjustable thermostat: 0-90 °C
Heat exchanger specifications:
• Number of heat exchangers: 1
• Heat exchanger material: stainless steel F18
• Maximum water temperature: 90 °C
• Heat exchanger area: 2.3 m2
Hydraulic connections – heat pump:
• Lead: 1”
• Return: 1”
Hydraulic connections – domestic hot water:
• Cold water connection: 3/4”
• Hot water connection: 3/4”
Energy efficiency class (A+ to F): B
Memory loss: 61 W
Necessary accessories:
Hot water storage tank installation kit PHLTA (1Ø, split), PHLTB (monoblock), PHLTC (3Ø, split)
Optional accessories:
- Mixing valve (3/4” dn20) OSHA-MV
- Mixing valve (1” dn25 OSHA-MV1
- 3-way valve OSHA-3V
