Flowair LEO water-to-air heater 26.5 kW - 65.2 kW

Flowair LEO water-to-air heater 26.5 kW - 65.2 kW

€399,00
€399,00
Sale Sold out

incl. VAT + shipping costs

Taxes included. Shipping calculated at checkout.
Heating output
3-stage controller. TS 14565

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa

Description

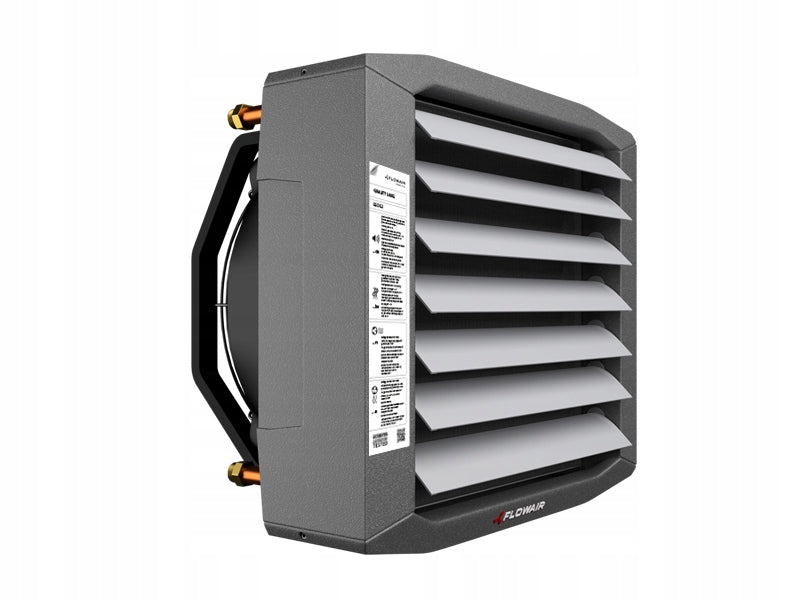

LEO water air heater
The LEO water-to-air heater is the ideal solution for heating rooms of varying sizes. Equipped with a state-of-the-art, three-stage fan, its operating characteristics allow for greater power control and therefore higher heating output. This results in enhanced functionality and improved performance. The LEO heater series includes models with different outputs and sizes, enabling efficient and effective heating of both small and large rooms.

Application:
The LEO air heater is suitable for large buildings such as industrial halls, warehouses, retail pavilions, production halls, sports halls and religious buildings, as well as for smaller rooms such as workshops, garages, shops, car dealerships and petrol stations.

  • LEO fan heaters are used for heating large buildings: general, industrial and public buildings, etc. The devices are designed for indoor use where the maximum air dust concentration does not exceed 0.3 g/m³.
  • EPP housing, grey color (similar to RAL 9007)
  • Standard features include a 3-stage, energy-saving fan.
  • Easy assembly thanks to its small size and light weight.

TS control
LEO S | L | XL
- 3-stage manual fan control
- Operating modes: Heating/Ventilation
Operating modes: Heating/Ventilation

Technical data:

Data LEO S2 LEO S3 LEO L2 LEO L3
Maximum air flow rate [m3/h] 2000 1800 3800 3400
Heating output range [kW] 2.1 – 26.5 1.7 – 32.7 2.2 – 50.4 3.2 – 65.2
Nominal heating output (70/50/16°C, 3rd gear) [kW] 10.2 12.3 19.1 25.6
Power supply [V/Hz] | 230/50 230/50 230/50 230/50
Max. current draw [A] 0.6 0.6 1.5 1.5
Max. power consumption [W] 130 130 340 340
IP/Insulation class 54/F 54/F 54/F 54/F
Max. sound pressure level [dB(A)] 56.3 56.3 64.1 64.1
Maximum sound power level [dB(A)] 71.4 71.4 79.2 79.2
Horizontal range [m] 14 12.5 21.5 19
Vertical range [m] 5.3 4.9 7.5 6.8
Max. heating water temperature [ o C ] 120 120 120 120
Maximum operating pressure [MPa] 1.6 1.6 1.6 1.6
Connection 1/2” 1/2” 3/4” 3/4”
Maximum operating temperature [°C] 60 60 60 60
Device weight [kg] 10.4 10.8 16.2 17.8
Weight of the water-filled device [kg] 11.6 12.2 18.2 20.5

Dimensions:

LEO S:

LEO L:

Important NOTE

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
